Mobile Platform Kit 4WD Metal Chassis DC Geared Motor

The Mobile Platform Kit 4WD Metal Chassis DC Geared Motor is a product that is of the best quality and is made to assist in the making of any robotic projects. There are several moving robotic projects that can be made using the Mobile Platform Kit 4WD Metal Chassis DC Geared Motor.

Explain briefly about the Mobile Platform Kit 4WD Metal Chassis DC Geared Motor.

The product is designed in such a way that it is mobile and has four wheels that help in the movement. There is a metal chassis that is attached to the wheels and helps in the movement. On this chassis, you can put the arduino, raspberry or any other sensor that are required for your project.

Why Mobile Platform Kit 4WD Metal Chassis DC Geared Motor used in the robotics industry?

It can effectively be used to make projects that are mobile and collect data while they are moving. There are different areas where there is a need for controlled movement to get accurate measurements. This is where you can use this project to your advantage.

What are the different parts available in the Mobile Platform Kit 4WD Metal Chassis DC Geared Motor?

Metal chassis

It is silver in colour and is very sturdy. It can effectively hold the weigh of anything that is relevant for the project.

DC Geared Motor

Its role is to provide control to the product and deliver high torque.

4WD

It is a 4 wheel drive where the wheels can move smoothly and do not cause any hindrance in the project.

Versatile

It can attract different products onto itself, like the Arduino, raspberry Pi, and other important products for the project.

Where can you use the Mobile Platform Kit 4WD Metal Chassis DC Geared Motor?

You can use it to make the robotic projects, toys, and many other areas where humans are not able to take the measurements or perform any particular task. It can be used in security services, research and development, automobile sector, traffic control and many other areas.

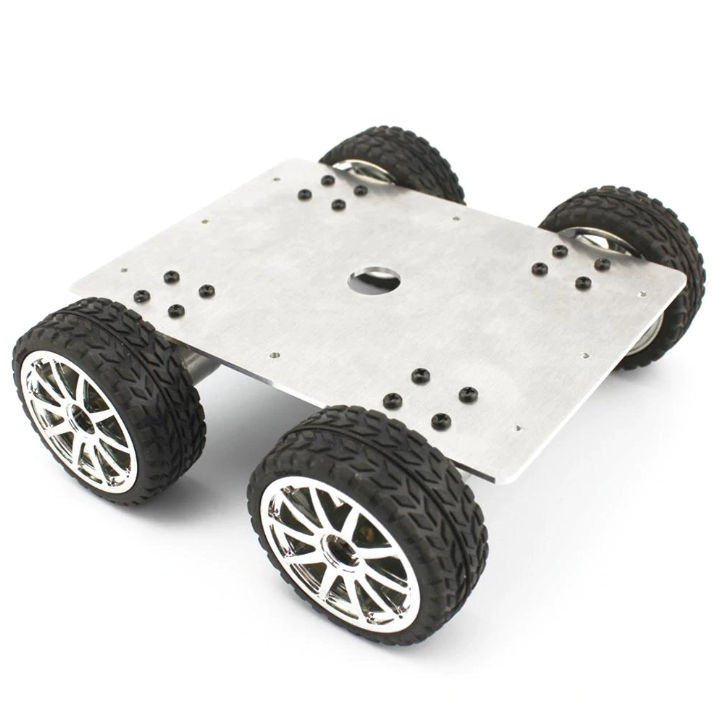

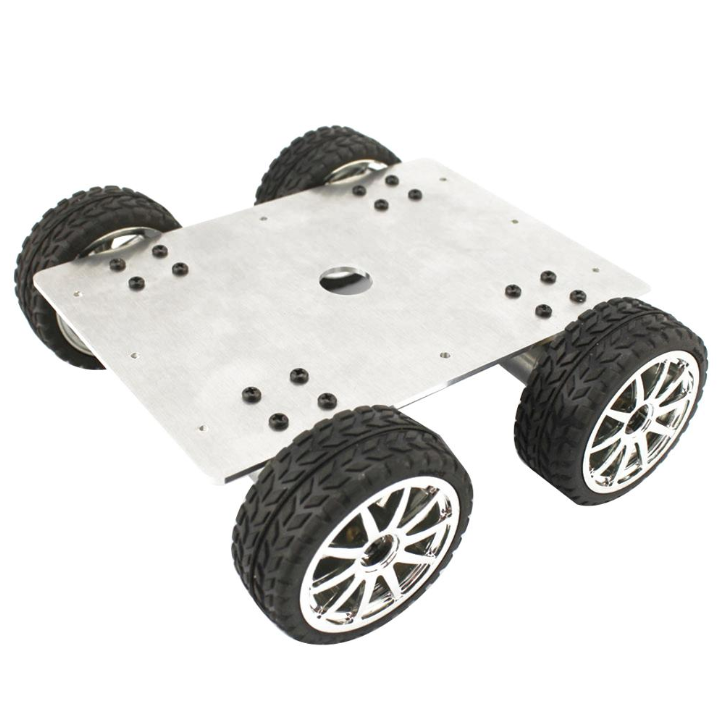

A 4-wheel robotic platform that has a strong haul and can carry heavy cargo. It is also equipped with soft tires, yet with good traction. You get metal plates that make up the chassis, 4 geared DC drive motors with matching wheels. The motor's shaft is connected to the wheel using a 4mm brass coupling.

QUICK SPECS:

• Full Vehicle length: 170mm
• Whole Vehicle Width: 175mm
• Chassis size: length 170mm x width 120mm and thickness of 2mm
• Cylinder center hole diameter: 17.5mm

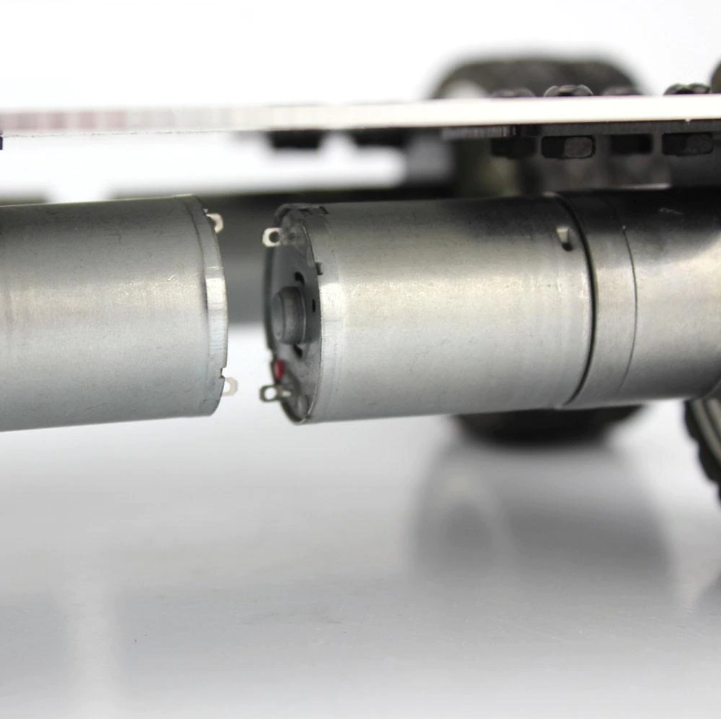

• Motor Parameters: 6V, 133 rpm, no load 75mA, stalled 1.3A.

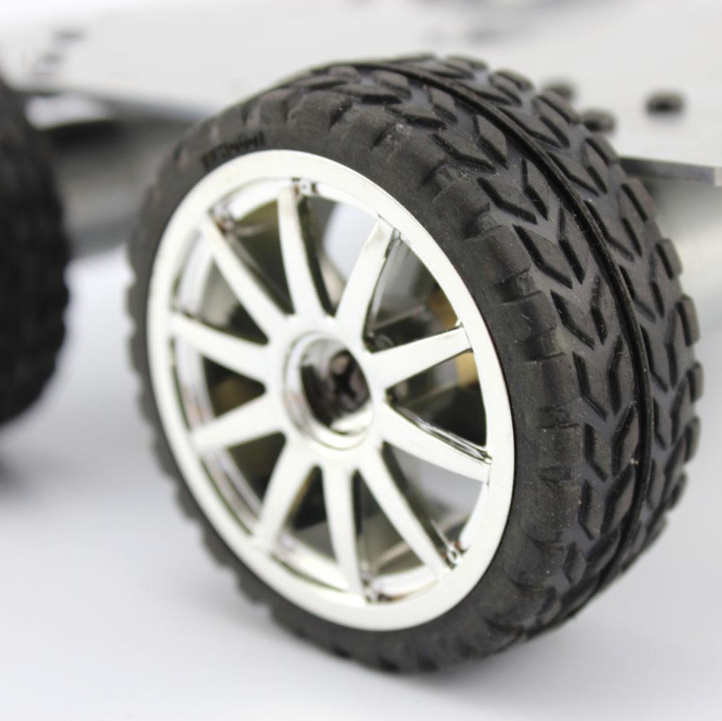

• Wheel Parameters: 65 x 26mm, Plastic wheel + Rubber Tire
• Weight: about 725 grams
• Each brass coupling is equipped with 1 screw for fastening the motor shaft (2) at the bottom of the reserved hole aperture 3.2mm
