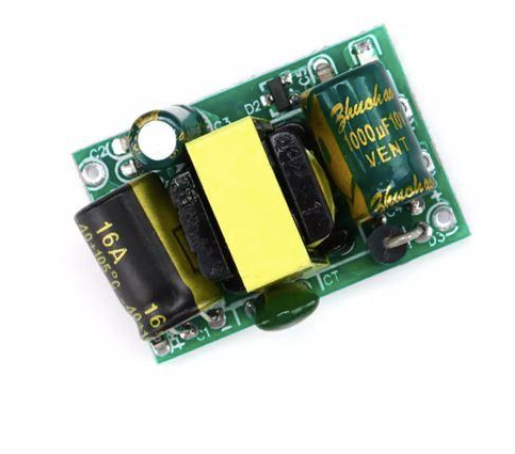

AC DC 220v to 5V 3.5W Isolated Switch Power Supply Module

Here's an easy way to power your Arduino! The AC-DC 220v to 5V 3.5W Isolated Switch Power Supply Module is a buck step down 220V to 5V power module, meaning you can connect one side to a power outlet and one side to a 5V microcontroller board. It also provides all the necessary protection for AC power handling so no need to worry about burning your devices.

Specifications:

• Input Voltage Range: AC 55-277V or DC 70-390V
• No Load Power: < 0.05W; max input power: 3.5W
• Output Voltage: 5V; max output voltage range: 4.9-5.3V or 4.8-5.2V; ripple wave 60mW
• Output Current: 0-600mA; output indicator lamp 1mA red light
• Output Power: 3W; efficiency 80%
• Output Protection: over-voltage, over-current, over-temperature, overpower, short circuit protection etc
• Applications: for zero lines, live line intelligent switch, intelligent socket, equipment and instructions, other controllers, etc.
• Working temperature:-25~85℃
• Output Power(Watt): 3.5
• Length: 29mm
• Width: 20mm
• Height: 15mm.
• Weight (g): 15

Library: None

Inclusions: 1 x AC DC 220v to 5V 3.5W Isolated Switch Power Supply Module

Documents: None
