Nextion 3.5" UART TFT LCD Module Display Panel NX4832T035

Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application, or appliance. Nextion is mainly applied to the Internet of Things (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, the Nextion editor has mass components such as buttons, text, progress bars, sliders, instrument panels,s, etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.

It's easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.

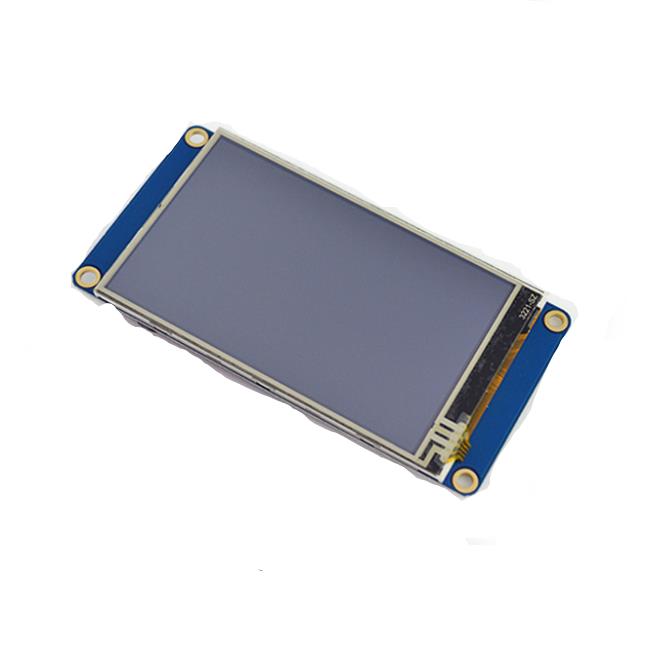

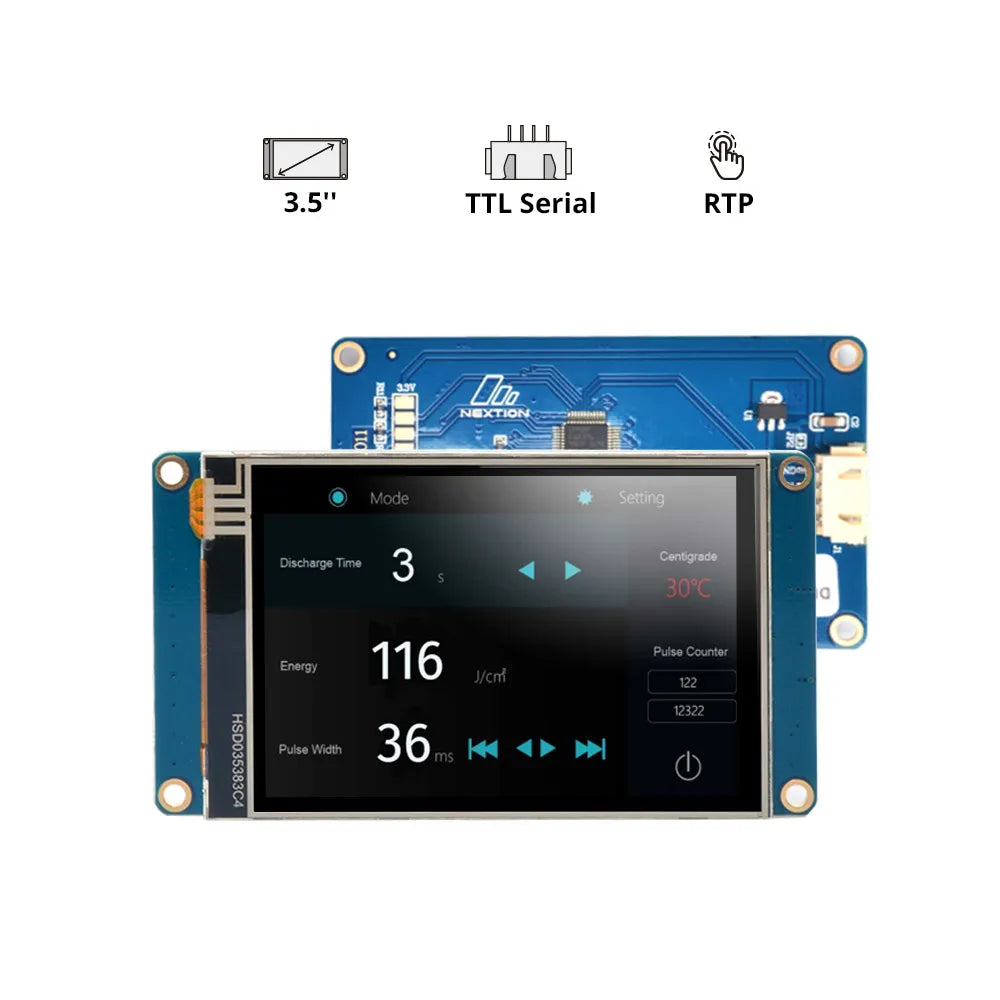

3.5" Basic Nextion NX4832T035 HMI TFT Intelligent Display Module is a powerful 3.5'' HMI, which is a member of the Nextion family. Features include: a 3.5" TFT 480x320 resistive touch screen display, 16M Flash, 3.5KByte RAM, 65k colors.

• 480 x 320 Resolution
• RGB 65K true-to-life colors
• TFT screen with integrated resistive touch panel
• 4-pin TTL serial interface
• 16M Flash memory for User Application Code and Data

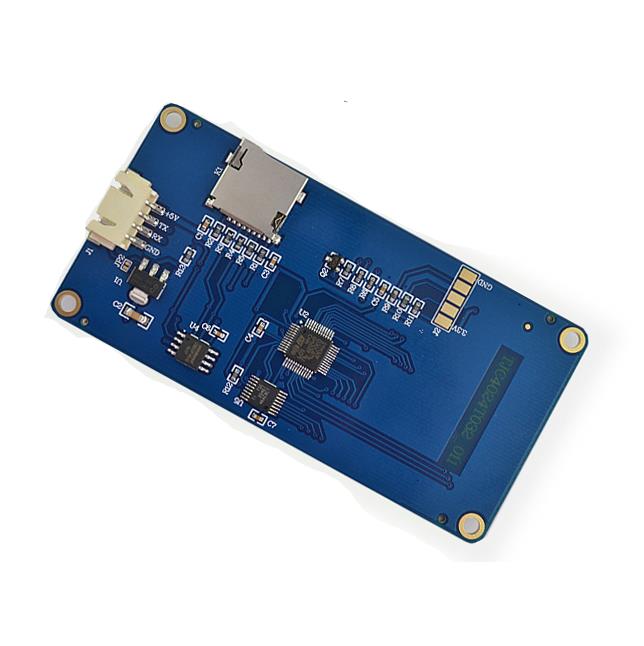

• On board micro-SD card slot for firmware upgrade
• Visual Area: 73.44mm(L)×48.96mm(W)
• Adjustable Brightness: 0~180 nit, the interval of adjustment is 1%
• 5V500mA DC recommended power supply
• 5V145mA power consumption
• Certificates: CE/EMC, RoHS(certificates)
