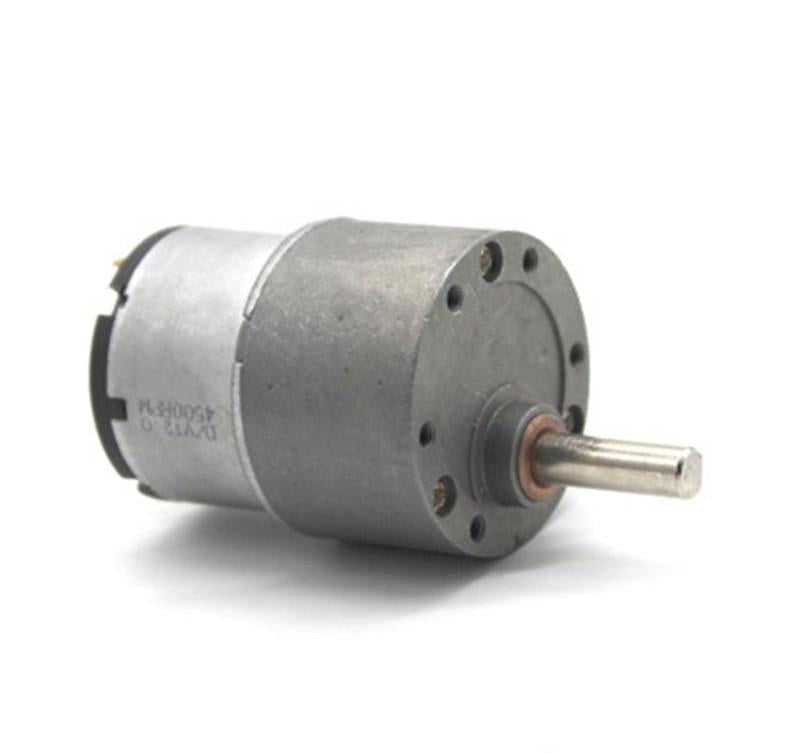

Metal Gearmotor 37Dx54L mm 70:1

This gearmotor is a powerful brushed DC motor with 70:1 metal gearbox intended for operation at 12 V. These units have a 16 mm-long, 6 mm-diameter D-shaped output shaft.

QUICK SPECS:

• Size: 37D x 54L mm
• Weight: 95 g
• Shaft diameter: 6 mm
• Gear ratio: 70:1
• No-load speed @ 12V: 150 rpm
• No-load current @ 12V: 300 mA
• Stall current @ 12V: 5000 mA
• Stall torque @ 12V: 200 oz·in
• No-load speed @ 6V: 75 rpm1
• No-load current @ 6V: 250 mA1
• Stall current @ 6V: 2500 mA1
• Stall torque @ 6V: 100 oz·in1
