NRF24L01 / WiFi Adapter Plate Board

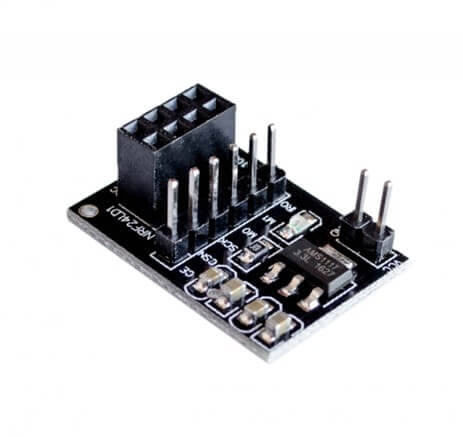

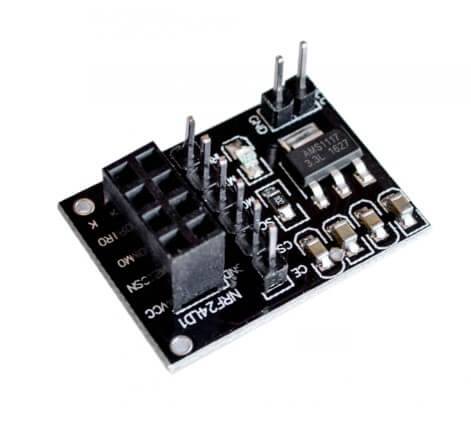

NRF24L01 / WiFi Adapter Plate Board - Connecting your NRF24L01 module or ESP8266 Wifi module is now easy with this adapter board. It also converts logic from 5V to 3.3V.

Frequently Asked Questions AboutNRF24L01/WiFi Adapter Plate Board

Q1: How does the NRF24L01/WiFi Adapter Plate Board work?

An NRF24L01 wireless module and a WiFi network may communicate wirelessly with each other thanks to the NRF24L01 / WiFi Adapter Plate Board, a small circuit board. This is accomplished by inserting the NRF24L01 module into the board's socket and utilising the SPI interface to link the board to a microcontroller or computer.

Q2: What is the primary purpose of the NRF24L01/WiFi Adapter Plate Board, and in what applications can it be used?

The NRF24L01 / WiFi Adapter Plate Board's main function is to establish wireless communication utilising the NRF24L01 wireless module between a microcontroller or computer and a WiFi network. This characteristic makes it perfect for a variety of uses, including IoT devices, remote sensing, and home automation.

Q3: Can you provide me with the NRF24L01 / WiFi Adapter Plate Board's technical details?

The NRF24L01 / WiFi Adapter Plate Board is equipped with a 5V DC power supply, an NRF24L01 module socket, an SPI interface, an ESP8266 WiFi module, WiFi protocol 802.11 b/g/n, and a 2.4GHz frequency range, among other features.

Q4: What kind of computers and microcontrollers may be used with the NRF24L01/WiFi Adapter Plate Board?

Any microcontroller or computer that supports the Arduino programming language and has an SPI interface can use the NRF24L01 / WiFi Adapter Plate Board. This includes single-board computers like the Raspberry Pi and microcontrollers like the Arduino Uno, Nano, and Mega.

Q5: What steps are required to configure the NRF24L01/WiFi Adapter Plate Board?

The NRF24L01 / WiFi Adapter Plate Board must be configured in a number of ways, including by attaching the NRF24L01 module to the board's socket, connecting the board to a microcontroller or computer using the SPI interface, installing the necessary libraries and drivers for the NRF24L01 and WiFi modules, configuring the WiFi module to connect to your network, and programming the board in Arduino.

Q7: What is the NRF24L01/WiFi Adapter Plate Board's transmission range?

The NRF24L01 wireless module that is utilised with the NRF24L01 / WiFi Adapter Plate Board has a significant impact on its range. The NRF24L01 may broadcast up to 100 metres in open areas, however walls and other wireless devices' interference and other impediments may reduce the range.

Q8: Is it possible to communicate in both directions with the NRF24L01/WiFi Adapter Plate Board?

Yes, the NRF24L01 / WiFi Adapter Plate Board can handle two-way communication between the microcontroller or computer and the NRF24L01 wireless module. The NRF24L01 and WiFi network may now communicate in both directions thanks to this.

Q9: Which practical uses may the NRF24L01/WiFi Adapter Plate Board be put to?

The NRF24L01 / WiFi Adapter Plate Board has a wide range of applications, including home automation (remote control of lights, appliances, and other devices), remote sensing (monitoring environmental conditions in remote locations), internet of things (IoT) devices (connecting sensors and actuators to the internet), robotics (remote control of robots over a WiFi network), and wireless data transmission (wirelessly transmitting data between devices over a WiFi network).
