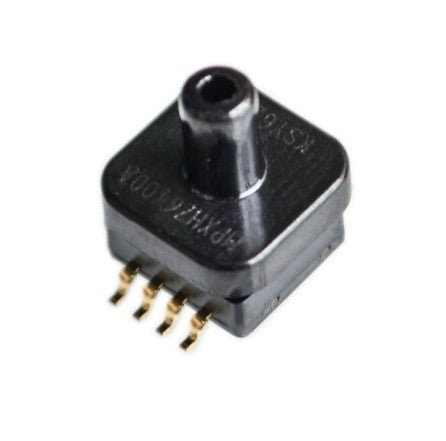

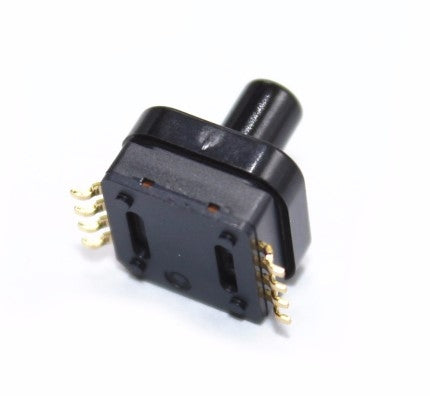

Pressure Sensor MPXHZ6400AC6T1 MPXHZ6400A

The Freescale MPXHZ6400A series sensor integrates on-chip, bipolar op amp circuitry and thin film resistor networks to provide a high output signal and temperature compensation. The small form factor and high reliability of on-chip integration make the Freescale pressure sensor a logical and economical choice for the system designer. The MPXHZ6400A series piezoresistive transducer is a state-of-the-art, monolithic, signal conditioned, silicon pressure sensor. This sensor combines advanced micromachining techniques, thin film metallization, and bipolar semiconductor processing to provide an accurate, high level analog output signal that is proportional to applied pressure.

FEATURES:

• Improved Accuracy at High Temperature

• Available in Small and Super Small Outline Packages

• 1.5% Maximum Error over 0° to 85°C

• Ideally suited for Microprocessor or Microcontroller-Based Systems

• Temperature Compensated from ñ40° to +125°C

• Durable Thermoplastic (PPS) Surface Mount Package


APPLICATION IDEAS:

• Industrial Controls

• Engine Control/Liquified Petroleum Gas (LPG)
