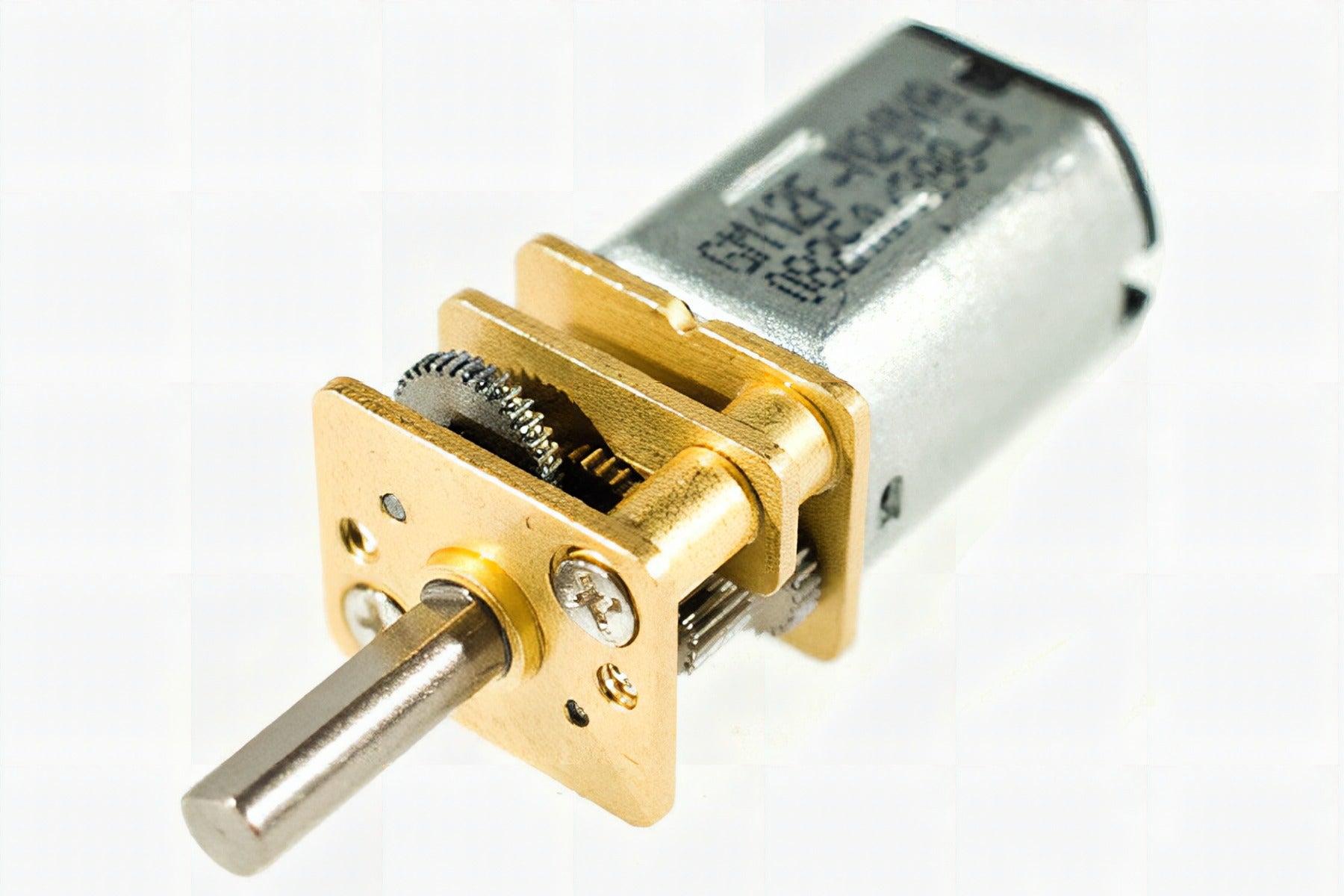

Micro Metal Gearmotor 30:1


This motor has a long (0.365" or 9.27 mm), D-shaped metal output shaft that matches the Pololu wheel 42x19mm and 32x7mm. The brass faceplate has two mounting holes threaded for M1.6 screws (1.6 mm diameter, 0.35 mm thread pitch), or you can use the mounting bracket or extended mounting bracket, which are specifically designed to securely mount the gearmotor while enclosing the exposed gears. We recommend the extended mounting bracket for wheels with recessed hubs, such as the wheel 42×19 mm.

This motor is suitable to be used in the mini mobile platform. As the 2 wheels miniQ platform, it can directly work with the MiniQ Robot chassis Encoder, mounting bracket and directly compatible wheels.

SPECIFICATION

  • Working voltage: 3 or 6 volts
  • 15000 rpm @6v No load
  • 30:1 Gear ratio
  • 500rpm @ 6V No load
  • 40mA @ 6V
  • 100mA stall current @ 6V
  • Torque:1.2Kg*cm @ 6V

DOCUMENTS

  • Dimension

SHIPPING LIST

  • Micro Metal Gearmotor 30:1 x1
