LoRa LoRaWan Weather Monitor Kit Air Temperature Air Humidity Barometric Pressure

WisBlock Kit 1 is used to track and monitor the weather in the location you want.

Use WisBlock Kit 1 to measure air temperature, air humidity, barometric pressure, and environment luminosity values. With WisBlock Kit 1 you can gather the data that you need to learn more about the weather conditions in your chosen location. This kit can also transmit whatever data it acquires to a LoRaWAN® server regularly.

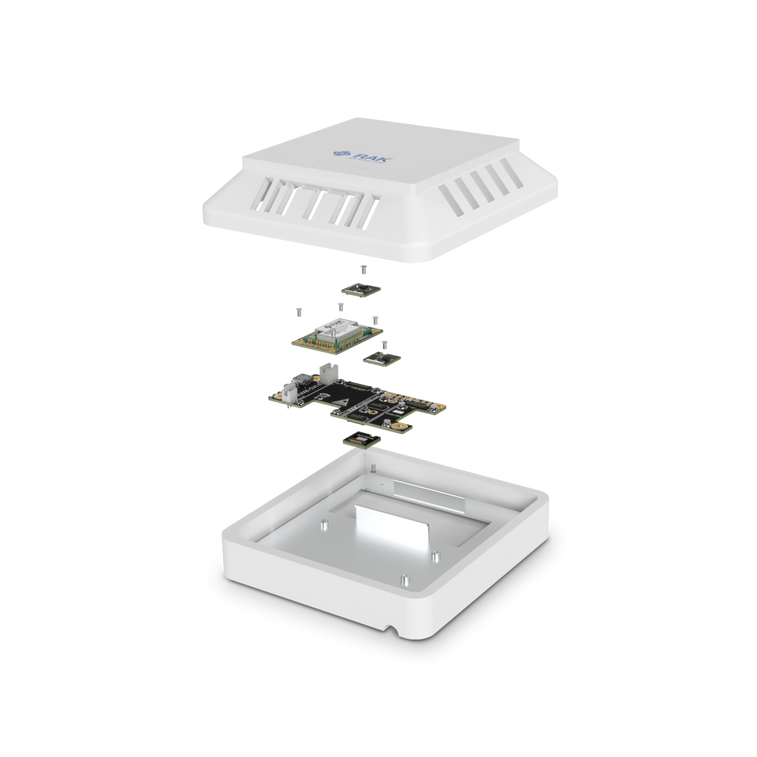

WisBlock Kit 1 uses a sturdy enclosure that helps it withstand weather complications without a hitch.

Key Features

• Frequency: AS923

RAK5005-O

• Easy Plug'n'Play slots for WisBlock Core MCU, WisBlock Sensor, and other WisBlock modules
• Small form factor
• Supports 3 different power supply sources
• Optimized for low power consumption applications
• I2C, UART, GPIO's an analog input accessible with solder contacts
• 2 user-definable LED's
• Reset button
• USB debug port
• 1 slot for WisBlock Core MCU
• 4 slots for WisBlock Sensor sensor modules
• 1 slot for another WisBlock extension modules

RAK4631

• LoRaWan® 1.0.2 protocol stack (supports Class A & C)
• Bluetooth Low Energy 5.0 protocol stack
• Nordic nRF52840
• Wide range of connections
• Semtech SX1262
• RAK1901
• Using the Sensirion SHTC3 temperature & humidity sensor
• Low power consumption
• Small form factor
• ±2.0 °C temperature accuracy
• -40 to +125 °C temperature range
• ±2.0 % RH humidity accuracy
• 0 to 100% humidity range
• RAK1902
• Using the ST KPS22HB barometric pressure sensor
• Low power consumption
• Small form factor
• Pressure range 260-1260 hPa
• Low power consumption of 3uA

RAK1903

• Using the TI OPT3001DNPR light sensor
• Low power consumption
• Small form factor
• Measurement range from 0.01 lux to 83865 lux
• Optical filtering to match the human eye
• Low power consumption of 1.8uA

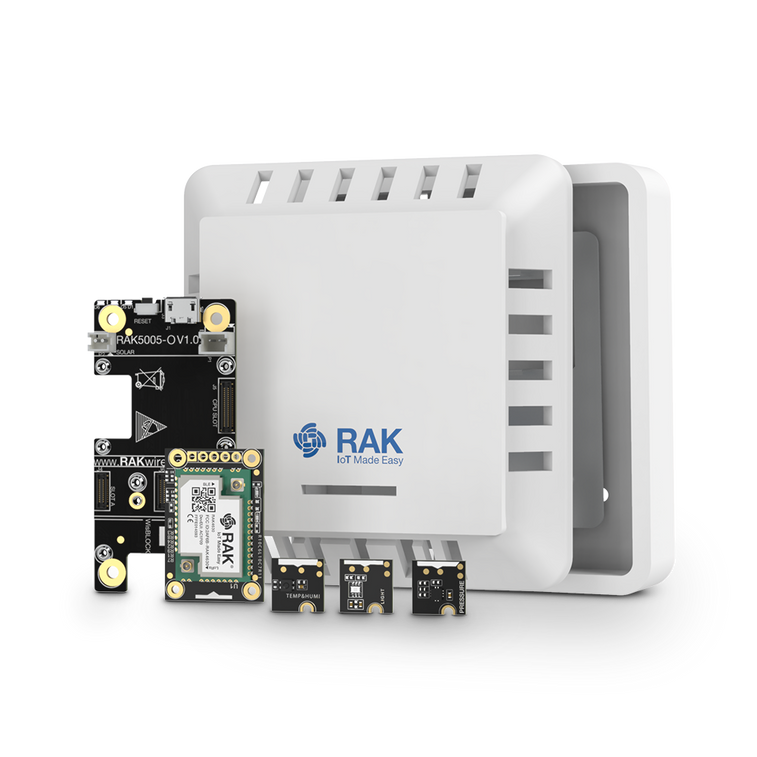

Package Inclusion

• RAK5005-O
• RAK4631
• RAK1901
• RAK1902
• RAK1903
• RAKBox-B3
• Lora Antenna
• BLE Antenna
