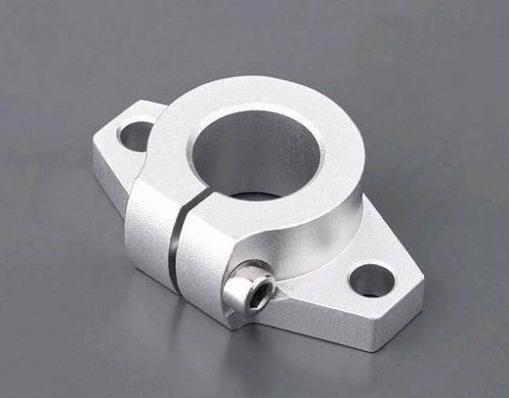

Linear Rail Shaft Horizontal Support for 12mm Rail

If you have a 12mm linear rail, you'll want to give it a bit of guidance and support to help it through the day. Sometimes a good word and a pat on the back is all you need, but when that's not enough, use a pair of these aluminum cast rail supports!

QUICK SPECS:

• Shape Flanged
• Bore Diameter (D)(Ø) 12 mm
• Shaft Tightening Method One Piece Clamp-On
• Material [Aluminum] Aluminum Casting Alloy 514.0
• Surface Finish Clear Anodized Type Cast
• Flanged Type - Features Standard
• Flanged Type - Wall Thickness Standard
• Dowel Holes Provided
• Clamp Lever Not Provided
• RoHS 6
