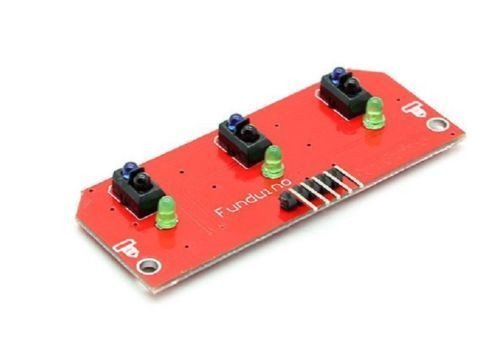

Line Tracking Sensor 3 Channel Module

The TCRT5000 Red 3Ch Line Follower Sensor features three channels of infrared sensors that use infrared light to distinguish between dark and light colors, particularly black and white, based on the difference in surface color. It operates on 5V and produces a low output when detecting a black line and a high output when detecting a white line. The sensor is easy to install with its fixed bolt hole and is beneficial for robotics projects, specifically for creating line-follower robots. It emits an infrared beam onto an object and measures the amount of light reflected back to accurately track and follow lines.

Features:

Uses three infrared sensors to detect surface color differences, specifically black and white lines
Provides a digital output, with a low output when detecting a black line and a high output when detecting a white line
Operating voltage of 5V
Compact design with a fixed bolt-hole for easy installation
Suitable for line following robots, sumo/mini-sumo robots, and other applications that require infrared tracking detection
Emits an infrared light beam onto the object and measures how much light is reflected back
Can be used for various robotics projects that require accurate tracking and detection of lines

Specifications:

Sensor Type: TCRT5000 Infrared (IR) Reflective
Channels: 3
Operating Voltage: 5V DC
Output Type: Digital (High/Low)
Detection Range: 1 to 10 mm
Response Time: Fast
Mounting: Fixed bolt-hole
Size: 118 mm x 80 mm x 10 mm
Weight: 11 grams
Applications: Line-following, sumo robots, obstacle detection, path tracking
