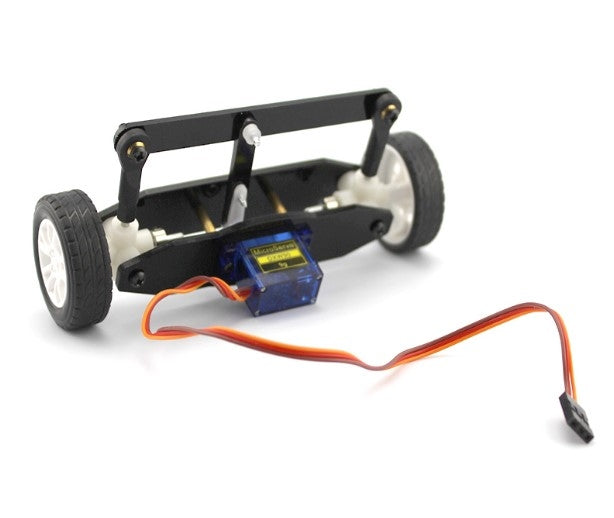

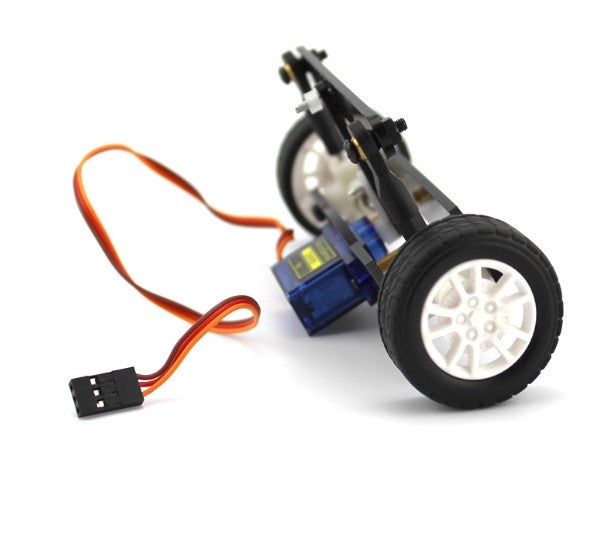

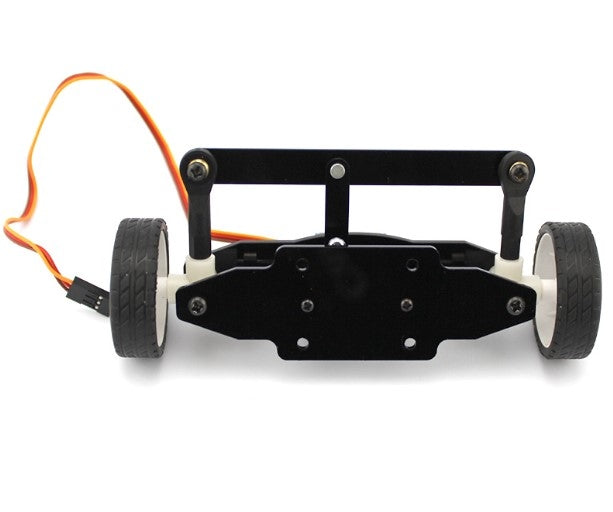

Front Axle Steering Gear Kit
Here's a snazzy answer to your mobot steering issues! The Front Axle Steering Gear Kit includes a 9g micro servo that may be programmed to control your mobile robot's steering. It is built of durable plastic, which is both strong enough to withstand collisions and light enough to allow for maximum speed. By attaching this device to the front of your DIY automobile, you can create a basic steering effect.
This kit has a high-quality 9g micro motor that has powerful torque up to 1.4kg/cm, which has the power to change directions and is built with lightweight plastic, It is ideal for high-speed mobile robots and DIY carts.
Specialisation
- Wheel size: 2.5mm aperture
- Driver Motor: 9g servo
- Speed: 0.12seconds with no load/60 degrees
- Coupling Torque: 1.2-1.4kg/cm
- Size: 13.5*6*4.5cm
Features
- The steering gear is different from the ordinary DC motor; however, red line is the positive pole, brown is the negative pole, and the orange line is the signal.
- This can be used to provide signals by using a signal-chip microcomputer or a modern remote-control receiver.
- It is easily interfaced with Arduino, Raspberry Pi, or any MCU for signals
- Light-weight helps in speed and offers excellent weight-to-strength ratio
Applications
- Remote-Controlled Vehicles
- Obstacle-Avoiding robots
- Prototyping smart mobility systems
- DIY Arduino Robotic Cars
FAQs
Q1. Where can you use this 9g micro servo kit?
Ans. This kit is used for the steering controller, which receives PWM signals that turn the wheels accurately.
Q2. With the RC controller, is this controller useful?
Ans. The servo is compatible with remote control receivers, especially for wireless operations.
Q3. Can this be compatible for outdoors?
Ans. You can use this outdoors as it is made of high-quality plastic, but not meant for heavy outdoor.
Q4. Is this safe for school students to do projects?
Ans. Yes, it is safe for robotics education, prototyping, and also in competitions in which steering-based vehicles are required.
