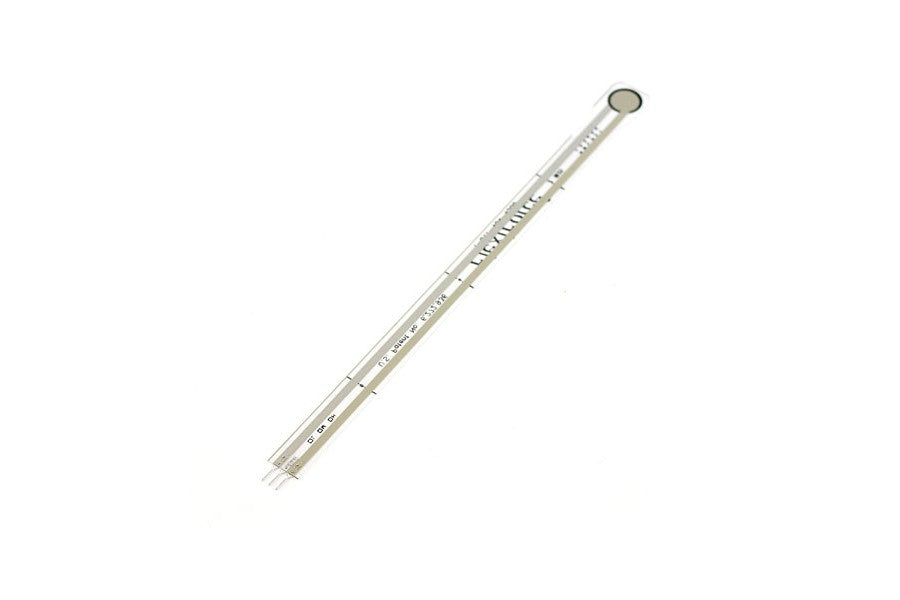

Flexiforce Pressure Sensor - 100lbs


This is a piezoresistive force sensor. The harder you press, the lower the sensor's resistance. Pressing hard, the resistance changes from infinite to ~300k. The sensor itself is thin and flexible, but the resistance does not change while being flexed. Resistance changes only when pressure is applied to the round area at the end of the sensor. Used as a presence sensor (someone standing), weight sensor, pressure sensor (impact testing), etc.

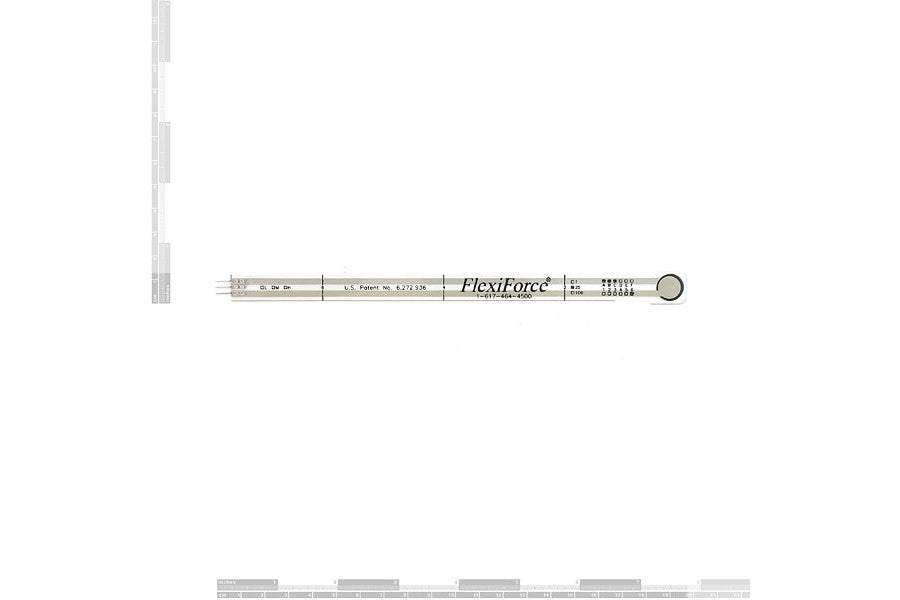

The overall length is about 8.5". Sensor comes with 0.1" spaced, reinforced, breadboard friendly connector.

APPLICATIONS

  • Detect and measure a relative change in force or applied load
  • Detect and measure the rate of change in force
  • Identify force thresholds and trigger appropriate action
  • Detect contact and/or touch

SPECIFICATION

  • Greater flexibility
  • Response time: < 5 ms
  • 0-100lbs(440 N) Detect range
  • Connector 3-pin Male Square Pin
  • Sensing Area 9.53mm (0.38") diameter
  • Max working current:2.5mA
  • Size:216x14mm (8.5x0.55")

DOCUMENTS

  • Datasheet
  • User Manual
  • Flexiforce Homepage
SHIPPING LIST

  • Flexiforce Pressure Sensor - 100lbs  x1

Circuit Rocks

Flexiforce Pressure Sensor - 100lbs

Flexiforce Pressure Sensor - 100lbs

Low stock: 1 left

Product Code

SKU:SEN-08685

Regular price ₱1,345.00 PHP
Regular price Sale price ₱1,345.00 PHP
Sale Sold out
Shipping calculated at checkout.
View full details
