Float Switch Plastic Water Level Control

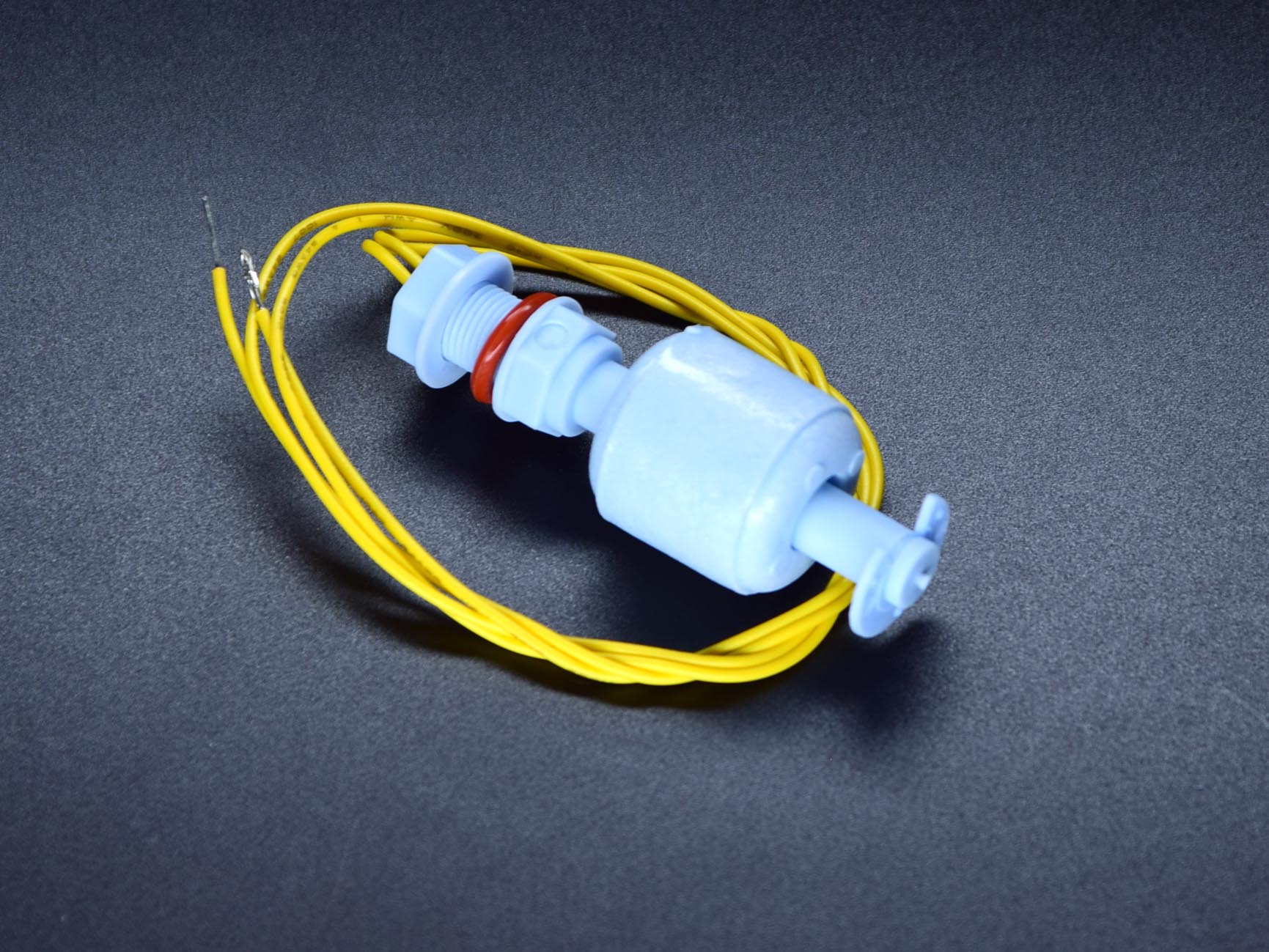

Float Switch Plastic Water Level Control -  Looking for a floating water level solution for your project? This Float Switch might be it! This device has a built-in reed switch that activates and sends a HIGH signal when water level is low. Otherwise, when it's floating, the reed switch doesn't connect so no signal is generated. The floating material is composed of PP plastic, which is non-toxic, low absorbent, and also odorless. You can use this device as a water level indicator for several applications, even for drinking machines. Note that this switch can handle voltages up to 110V but is recommended to use in 36V or less to avoid shock accidents. If you must work with higher voltages, we suggest using a relay.

People Also ASK:

Q1: What distinguishes a float level controller from a float level switch and a float level gauge?

The following are the primary distinctions between float level meter, float level switch, and float level controller:

1 A floating-level controller, a floating-level switch, and a floating-level sensor Structure variation

Most float level indicators are of the straight rod variety. The straight rod is attached to a maglev ball, which can be moved up and down to attract the relay circuit in the straight rod. By enticing the reed switch, the goal of raising the electrical resistance in series is accomplished. Given that the 4-20 mA output remote signal is a current signal, the current is proportional to the resistance when a specific voltage is present.

More current would cause the resistance to increase. As a result, the float level gauge's straight rod has a series circuit board circuit. The reed switch is built right into the float level controller without the need for a separate circuit board. The float level switch is made with the simplest materials. A float level sensor can also be used with the paperless recorder. Further reading Float level, single-point, and multi-point sensors

2 Price differences between a float level sensor, float level switch, and a float level controller

The float level gauge's price is higher because of how complex its structure is. The cost of the float level switch is the least expensive, while the cost of the float pressure regulator is second.

3 A floating-level controller, a floating level switch, and a floating level sensor functional distinction

A float Level Indicator is a liquid level gauge that measures levels. The specific level value cannot be shown via the float level controller. The switch value alarm point signal is limited to one.

Small tanks are ideal for using the float level switch, but you must open the hole at the correct height. Install the float's one end at the location where the alarm is required. The floating ball will be raised and the contact point will be immediately disengaged to serve as a warning when the liquid level reaches that point.

Q2: Can you change the float on a sump pump?

Sump pumps can indeed be electronically and manually regulated. Check the owner's manual for precise directions on raising or decreasing your float as each model varies a little.

Q3: Can stiff or rigid floats be changed?

A float switch can stiffen or grow rigid with time, making it challenging to adjust. Routine servicing or cleaning it with WD-40 can solve this issue.

Specifications:
