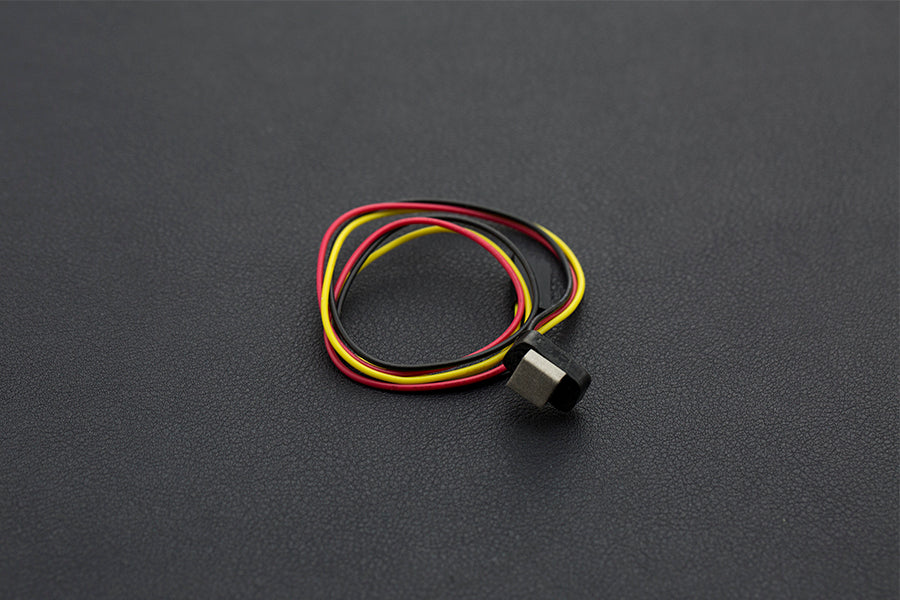

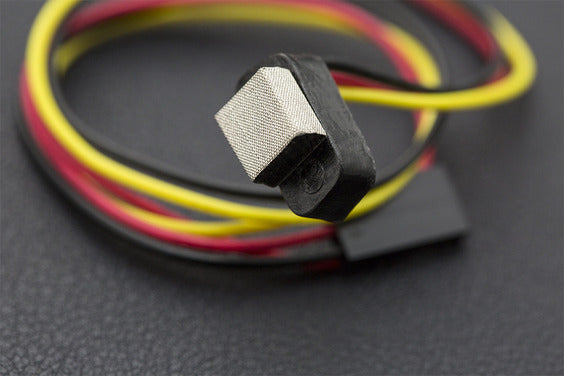

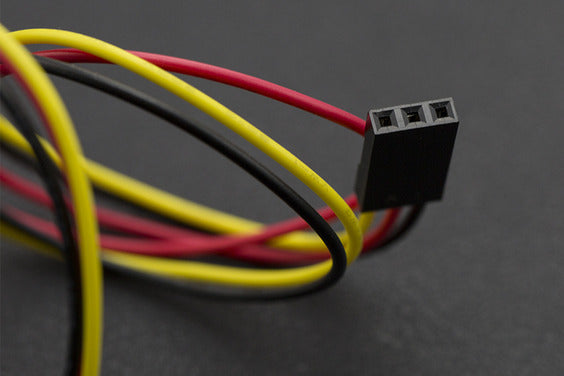

Non-Contact Liquid Level Switch
This Non-Contact Liquid Level Switch can be triggered when the liquid level fall below the sensor attached to the outside surface of a non-metal container. Unlike traditional liquid level sensors, it does not need to be immersed into the liquid. In this way the liquid will not be contaminated and the life of the sensor will not be reduced so fast because of the contact between the liquid and the sensors. The sensor is very sensitive and stable, and the output current is up to 100mA which can directly drive a relay. You can use this switch to monitor the condition of your water machine or make a water-drinking reminder by attaching it to the surface of your cup.
SPECIFICATION
- Power supply: +5V
- Working current: 25μA
- Working temperature: -25~125℃
- Detectable wall thickness: 1~13mm
DOCUMENTS
Non-Contact Liquid Level Switch
Non-Contact Liquid Level Switch
Out of stock
Product Code
SKU:FIT0212
