Motor Dual-Channel H-Bridge Driver Module L9110 12V 800mA

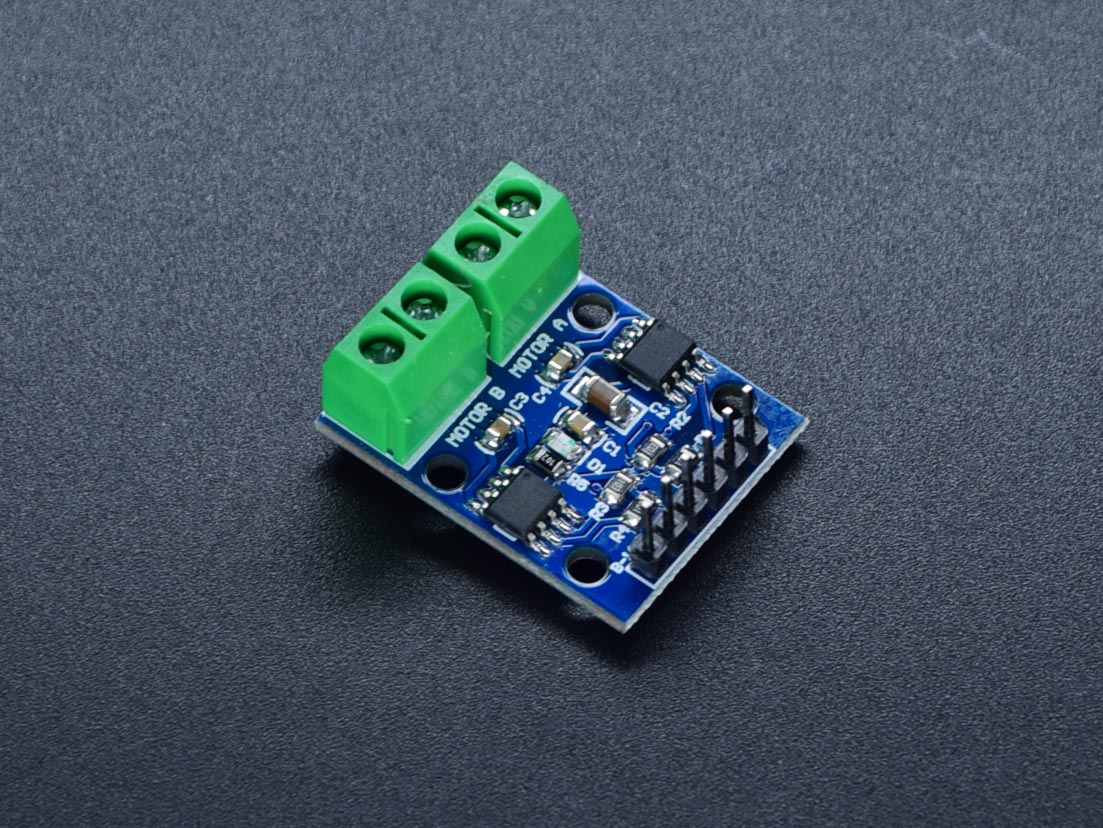

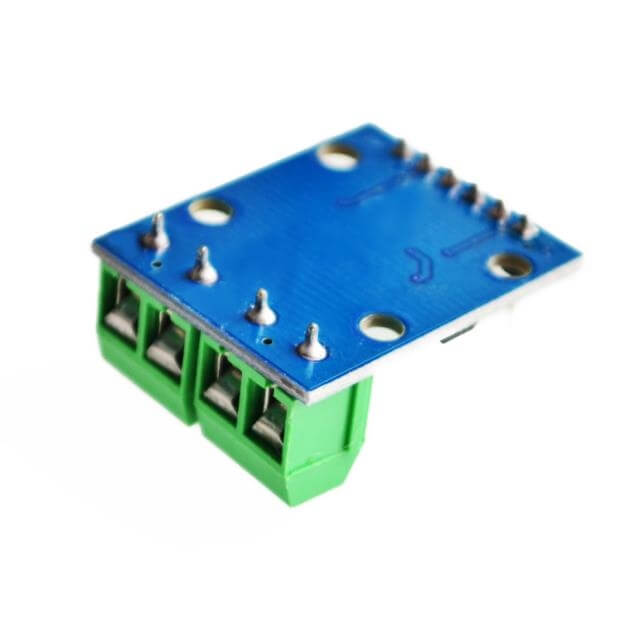

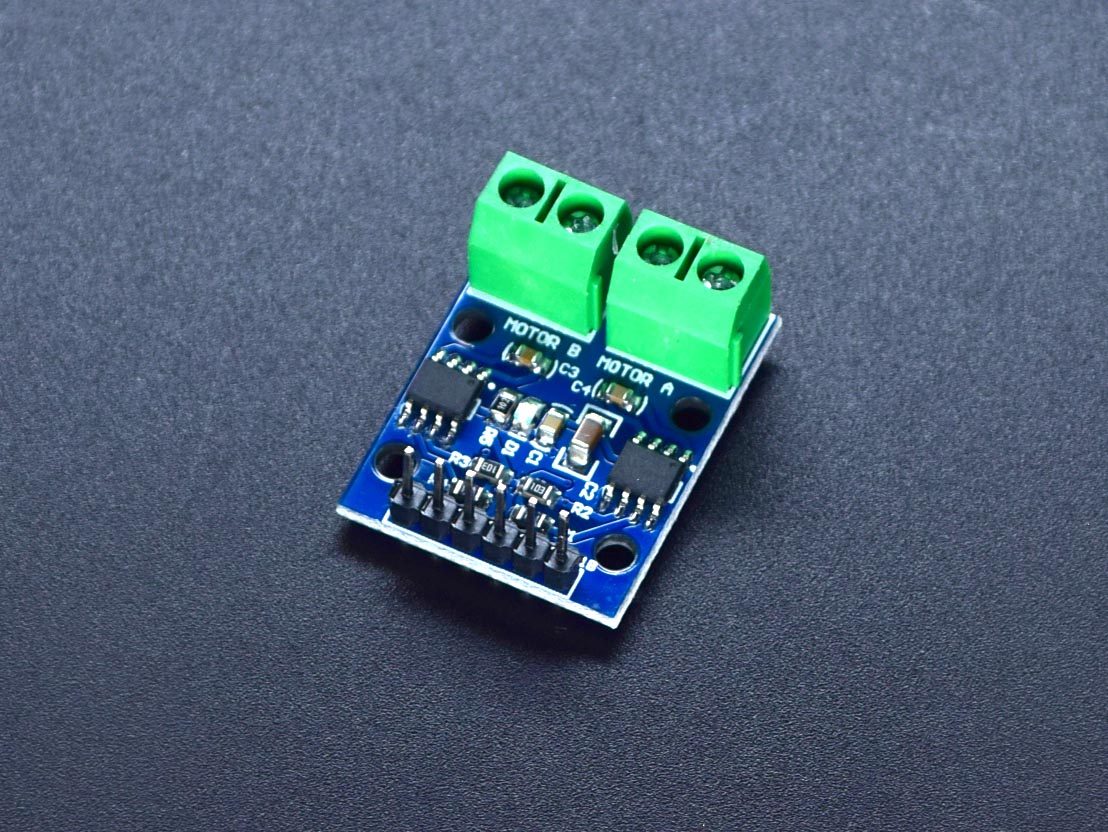

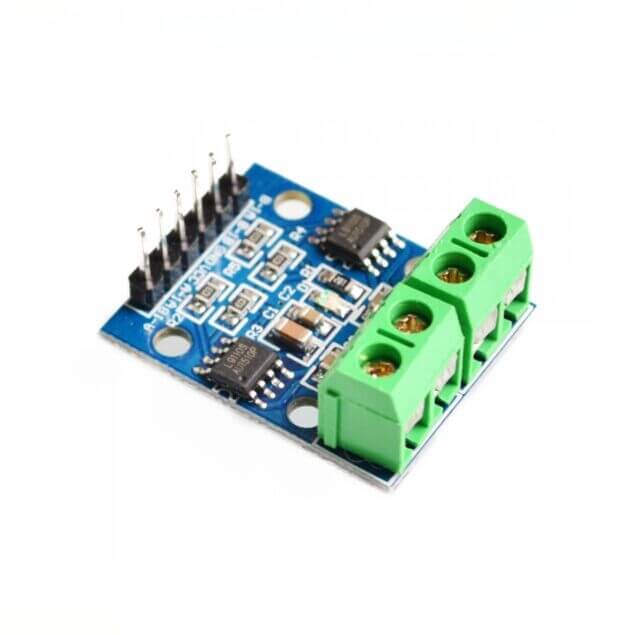

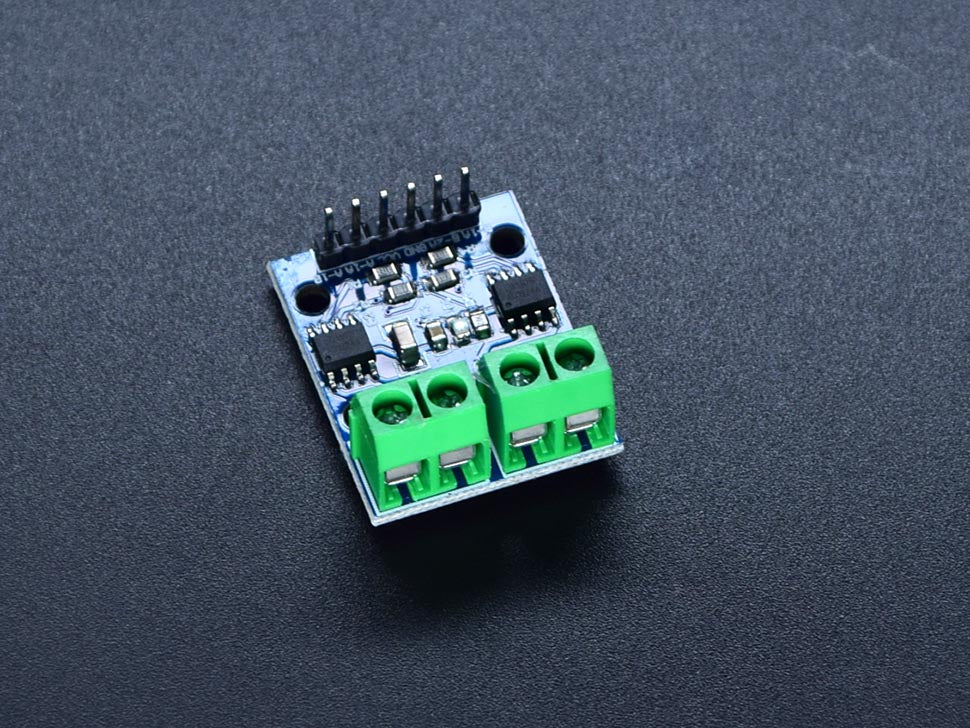

Motor Dual-Channel H-Bridge Driver Module L9110 12V 800mA - The Motor Dual-Channel H-Bridge Driver Module L9110 12V 800mA is a small board that can be used to drive small dc motors for robots. It holds two independent motor driver chips which can each drive up to 800mA of continuous current to the DC motor. This Motor Dual-Channel H-Bridge Driver Module L9110 12V 800mA is highly recommended for your Arduino Projects. This board can be operated from 2.5V to 12 of motor voltage.

Small robots can be driven by the L9110S dual-channel h-bridge motor driver module, which is a small board. The L9110 Motor Driver IC is the foundation of this module. Two separate motor driver chips that can each drive up to 800mA of continuous current are present in this module. This module can be used with both 3.3 V and 5 V microcontrollers since the boards may be operated between 2.5 V and 12 V. The connection between this module and a microcontroller is made via a series of female header pins. Two sets of screw terminals are used to connect the motors.

Feature OF L9110S STEPPER MOTOR DRIVER:

Working with a weak static current
DC power supply voltage 2.5V – 12V
Each channel can emit 800mA continuously.
low decrease in saturation pressure
Suitable with both TTL and CMOS output levels, direct CPU connection is possible.
Apply the perceptual load using the built-in clamping diode as an output.
The IC integrates control and drive..
Working range: 0 to 80 degrees Celsius
Size - 29 x 21 mm (L x W)

Frequently Asked Questions

Question 1) What can a dual H-bridge motor driver provide?

Answer)  The motor controller breakout board L298N Dual H Bridge Motor Driver is frequently used to regulate the speed and direction of motors. Additionally, it may be used to regulate the brightness of some lighting fixtures, including powerful LED arrays.

Question 2) Can an H-bridge control speed?

Answer)  A circuit called an "H-Bridge" can be used to regulate a DC motor in a more flexible manner. An "H-Bridge" is a configuration of transistors that enables control of the motor's direction and speed.

Question 3)  Do H bridges need diodes?

Answer) Unfortunately, a single flyback diode is insufficient when employing an H-bridge circuit. There must be four diodes to provide a channel for the induced voltage because of the various current paths.

For the physical aspect:

It has a set of female header pins is used to connect this module to your Arduino or microcontroller board.
The motors are attached via two sets of screw terminals.
PWM (Pulse Width Modulation) signal to control the speed of a motorand a digital output is used to change its rotation.
This module can also be used to drive a single four line two phase stepper motor.
Four holes make this board easy tomount onto your robot or other project.

SPECIFICATIONS:

Motor Voltage: 2.5 ~12V
Motor channels: 2
Max Continuous Current per Channel: 800mA
Size: 31mm x 22mm x 12mm

QUICK LINK

L9110 DATASHEET

Motor Dual-Channel H-Bridge Driver Module L9110 12V 800mA

Name: Motor Dual-Channel H-Bridge Driver Module L9110 12V 800mA
Brand: Circuit Rocks
SKU: AA084
Price: 65.0 PHP
Availability: InStock
