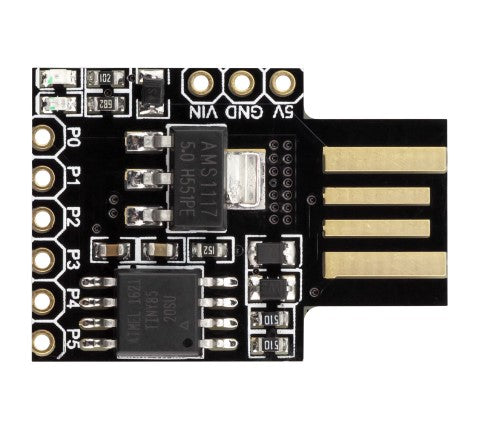

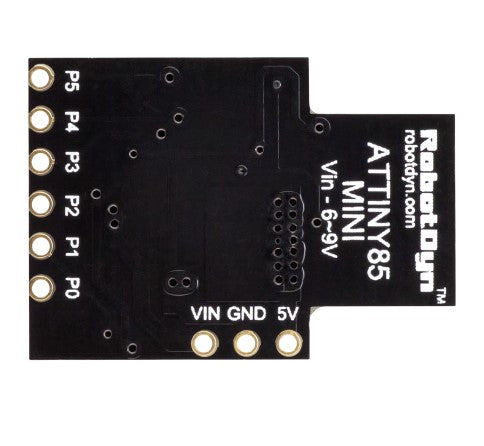

Don't get it confused with a WiFi dongle! The Digispark is a full-blown development board the size of a coin. It is based on an ATtiny85 microcontroller, which comes from the ATtiny line of MCUs, also known as TinyAVR. It is a cheaper and smaller alternative to the Arduino UNO's ATMega328P. The best thing about the Digispark is its plug and play. No need to have a USB connector as the board itself is a USB type-A male plug.

Specifications:

• Support for the Arduino IDE 1.0+ (OSX/Win/Linux)

• Power via USB or External Source - 5v or 7-35v (12v or less recommended, automatic selection)

• On-board 500ma 5V Regulator

• Built-in USB

• 6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)

• 8k Flash Memory (about 6k after bootloader)

• I2C and SPI (vis USI)

• PWM on 3 pins (more possible with Software PWM)

• ADC on 4 pins

• Power LED and Test/Status LED

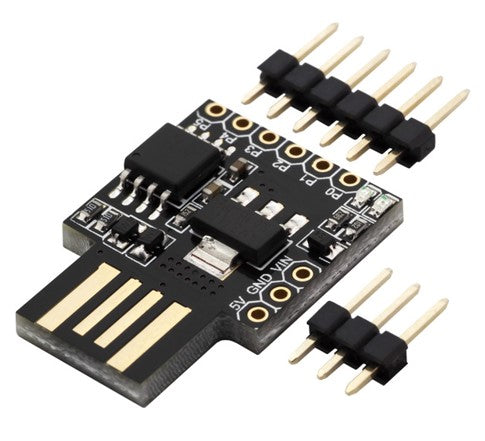

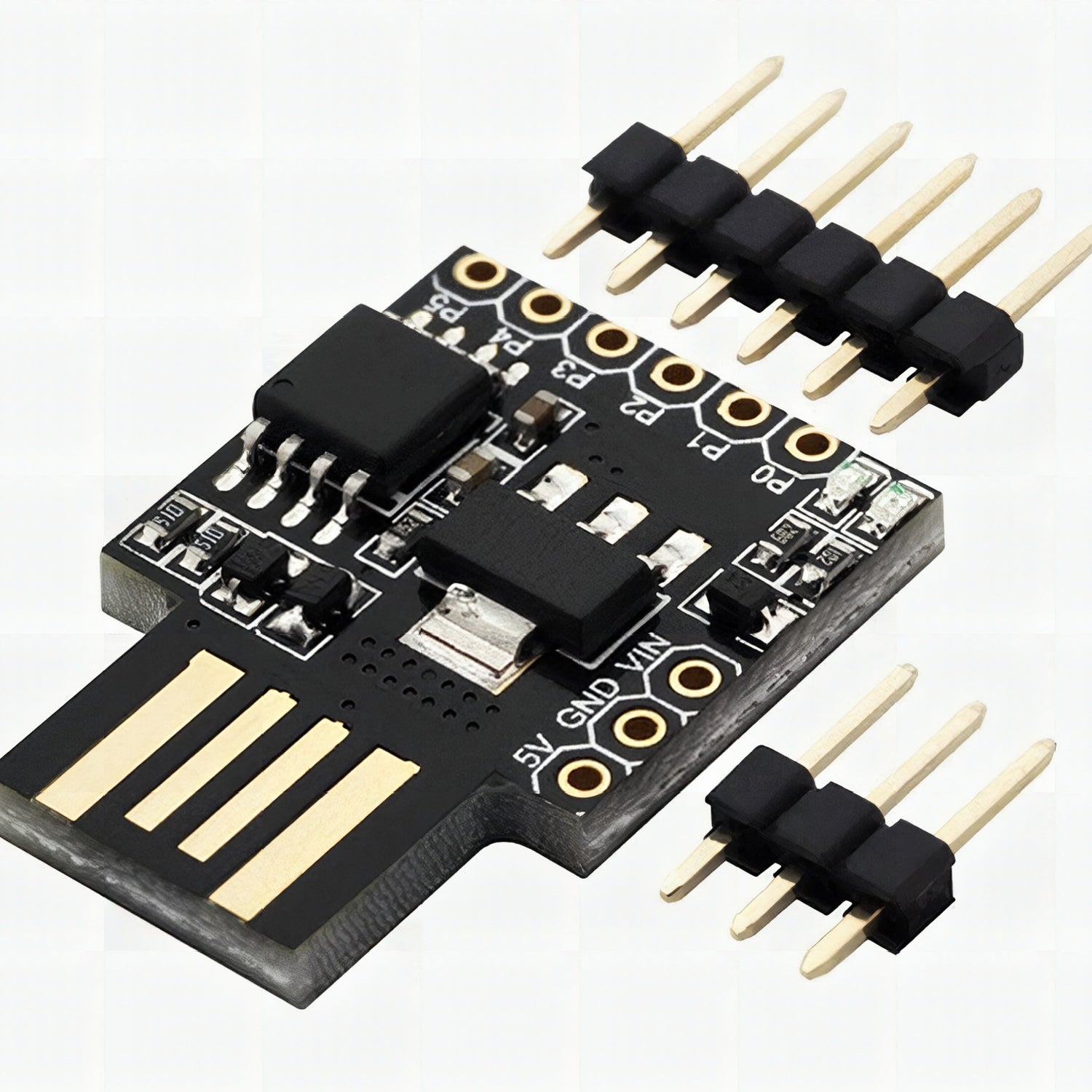

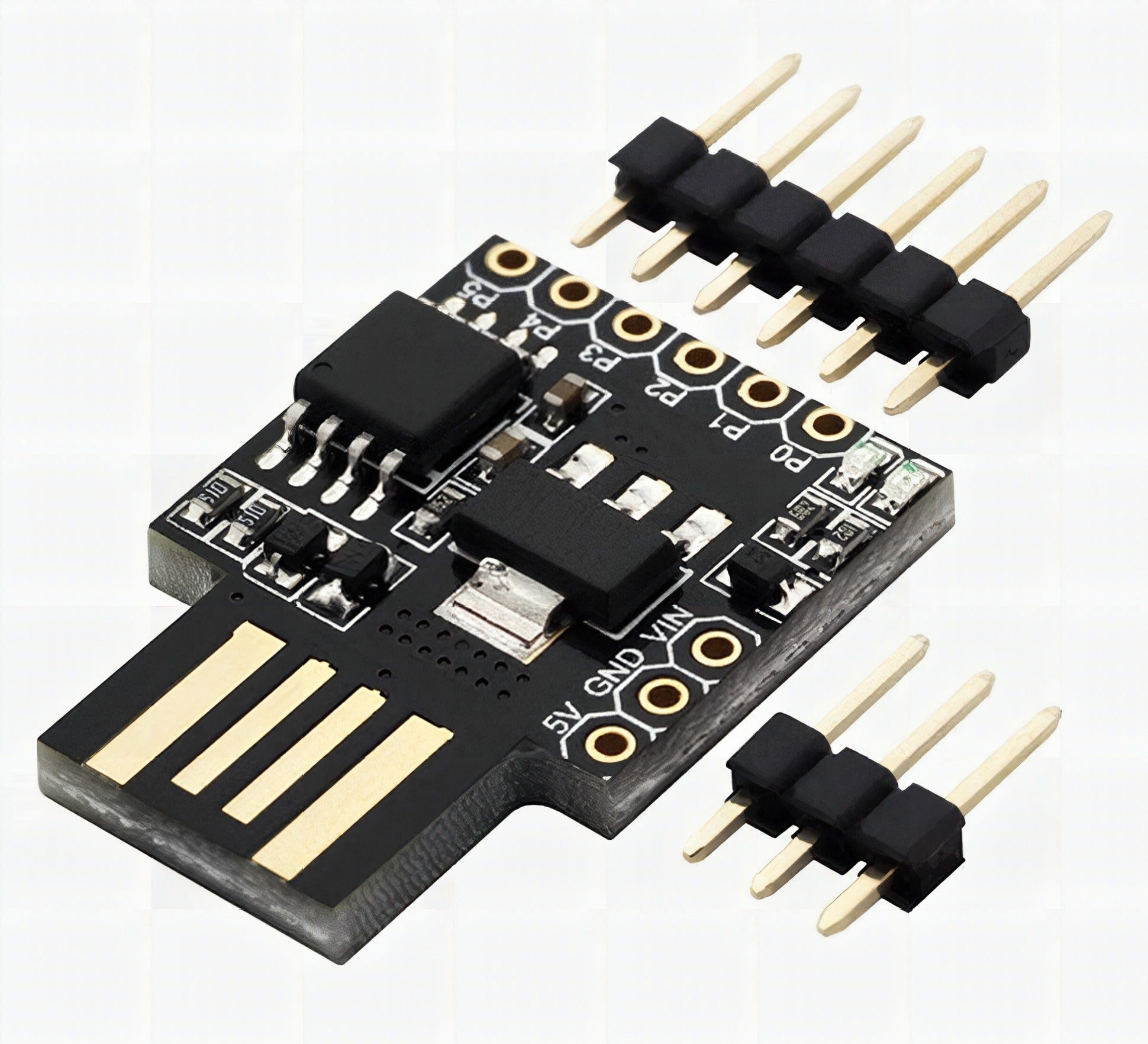

Inclusions:1 x Digispark Development Board;

Documents:

• Schematic
• Eagle File

In the realm of microcontroller development, the Digispark USB Development Board featuring the ATtiny85 has emerged as a game-changer for makers and hobbyists. Compact yet powerful, this little board has garnered attention for its ease of use, versatility, and affordability.

Here, we’ll explore the features, benefits, and potential applications of the Digispark board, making it an essential tool for anyone venturing into the world of electronics.

What is the Digispark USB Development Board?

The Digispark USB Development Board is a tiny microcontroller board based on the ATtiny85, an 8-bit AVR microcontroller. What sets it apart is its built-in USB support, allowing it to be easily programmed and powered through a USB connection. This board is ideal for beginners and experienced developers alike, enabling rapid prototyping and experimentation without the need for complex setups.

Key Features of Development Board

• Compact Size: Measuring just 1.5 x 1.0 inches, the Digispark board is incredibly compact, making it suitable for projects where space is a constraint. Its small footprint allows it to be embedded in various applications without adding bulk.
• USB Compatibility: One of the most significant advantages of the Digispark is its USB interface. You can connect it directly to your computer for programming using the Arduino IDE, eliminating the need for an external programmer. This feature streamlines the development process and enhances accessibility for beginners.
• ATtiny85 Microcontroller: The heart of the Digispark is the ATtiny85, which offers 8 KB of flash memory, 512 bytes of SRAM, and six I/O pins. While it may not be as powerful as larger microcontrollers, it is more than capable of handling simple tasks and can be programmed for a variety of functions.
• Arduino IDE Compatibility: The Digispark can be easily programmed using the Arduino IDE, making it user-friendly for those familiar with Arduino programming. This compatibility allows developers to leverage existing libraries and resources to kickstart their projects.
• Low Power Consumption: The ATtiny85 is known for its low power consumption, making it an excellent choice for battery-operated devices. This feature is particularly beneficial for IoT projects or wearable technology where energy efficiency is paramount.

Applications of Development Board

The versatility of the Digispark USB Development Board opens up a plethora of project possibilities:

• DIY Gadgets: Create custom gadgets like timers, remote controls, or simple sensors. The board’s I/O pins can be used to interface with various components, such as LEDs, buttons, and buzzers.
• IoT Projects: With the right sensors and modules, the Digispark can serve as a lightweight IoT device, collecting data and transmitting it to a server or mobile app.
• Home Automation: Use the Digispark to build automated systems for home control, such as smart lights or temperature sensors, enhancing convenience and energy efficiency.
• Wearable Tech: Its compact size and low power consumption make the Digispark an ideal candidate for developing wearable devices, like fitness trackers or health monitors.

Conclusion

The Digispark USB Development Board (ATtiny85) is a remarkable tool that empowers both beginners and seasoned developers to bring their creative ideas to life. Its compact design, USB compatibility, and ease of use make it an attractive choice for a wide range of applications, from DIY projects to more advanced IoT solutions.

Whether you're looking to experiment, prototype, or build a complete project, the Digispark board provides the functionality and flexibility you need to innovate and succeed in your electronics journey. Embrace the potential of this tiny powerhouse and let your creativity soar!
