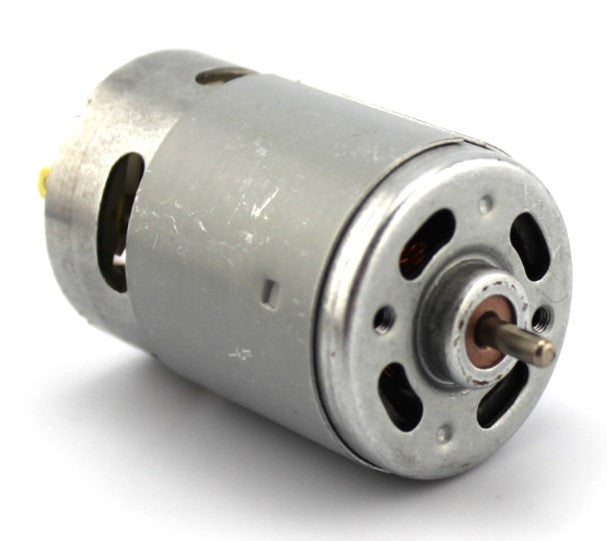

DC Motor 550 12V
This is the powerful RS-550 Motor 19300rpm 12V 62.49oz-in with a 3-pole balanced armature. This motor can also be purchased with a choice of planetary geardowns which reduces the speed and increases torque. If you are using this motor with a microcontroller, you will need a powerful motor controller.
- DC Gearmotor
- Nominal Voltage: 12V
- No Load RPM: 19300
- Stall Current: 85A
- Stall Torque: 69 oz-in
- Shaft Diameter: 3.175 mm
- Backshaft for Encoder
SPECIFICATIONS:
- Nominal Voltage: 12V
- No Load RPM: 19300
- No Load Current: 1.4A
- Rated RPM: 17100
- Rated Torque: 7.86 oz-in
- Stall Current: 85A
- Stall Torque: 69 oz-in
- Shaft Type: Round
DIMENSIONS:
- Size: 36.6D x 56.9L mm
- Weight: 220 g
- Shaft Diameter: 3.175 mm
- Shaft Length: 7.62 mm
In the universe of electronics and robotics, the DC Motor 550 12V stands out as a versatile and essential component. Whether you're a hobbyist working on your latest DIY project or a seasoned engineer developing a complex machine, understanding the characteristics and applications of this motor can be crucial for your success. Let's dive into what makes the DC Motor 550 12V a popular choice and explore how it can enhance your projects.
What is the DC Motor 550 12V?
The DC Motor 550 12V is a small yet robust electric motor designed to operate efficiently at 12 volts. Its compact size and high power output make it suitable for a wide range of applications. The “550” designation refers to the size of the motor, indicating its diameter and length, which in turn affects its torque and speed characteristics.
Key Features and Specifications
- Voltage and Power: Operating at 12 volts, the DC Motor 550 is designed to provide a balance between performance and power consumption. This voltage is commonly used in many applications, making it a versatile choice for various projects.
- High Torque: One of the standout features of the DC Motor 550 is its ability to generate substantial torque relative to its size. This characteristic is crucial for applications requiring significant force, such as driving wheels in robots or actuating mechanical arms.
- Compact Size: Despite its power, the motor's compact design allows it to fit into tight spaces. This makes it ideal for applications where space is at a premium, such as in small robots or intricate machinery.
- Durability: Built to handle continuous operation, the DC Motor 550 is robust and reliable. It can withstand the rigors of various environments, making it suitable for both indoor and outdoor projects.
- Speed Control: The motor's speed can be easily controlled using a PWM (Pulse Width Modulation) controller. This feature allows for precise adjustments, enabling you to fine-tune the motor’s performance according to the needs of your application.
Applications of the DC Motor 550 12V
- Robotics: In robotics, the DC Motor 550 12V is frequently used for driving wheels, actuating joints, or powering other moving parts. Its high torque and speed control capabilities make it a go-to choice for building mobile robots and robotic arms.
- DIY Projects: For hobbyists and DIY enthusiasts, this motor is ideal for various projects, from automated vehicles to remote-controlled gadgets. Its ease of use and reliability make it a favorite among makers and inventors.
- Model Railroads: Model train enthusiasts use the DC Motor 550 to power locomotives and other moving components. Its size and performance characteristics make it suitable for the precision required in model railroading.
- Small Appliances: The motor can also be found in small household appliances where compact size and efficient power delivery are essential. It can drive gears, fans, or other small mechanical systems.
Integrating the DC Motor 550 into Your Project
Integrating the DC Motor 550 into your project is straightforward, but some considerations can ensure optimal performance:
- Power Supply: Ensure you have a stable 12V power source to provide the necessary voltage for the motor.
- Motor Driver: Use a motor driver or controller compatible with the motor to manage its speed and direction. This will help in precise control and protection of the motor.
- Mounting: Securely mount the motor to avoid vibrations and ensure efficient power transfer.
Conclusion
The DC Motor 550 12V is a powerful and versatile component that can enhance a wide range of projects. Its combination of high torque, compact size, and durability makes it a valuable asset for robotics, DIY projects, model railroads, and small appliances.
By understanding its features and applications, you can leverage the DC Motor 550 to bring your creative ideas to life and achieve remarkable results in your engineering endeavors.
