Bracket Pan / Tilt 2 DOF for Standard Servo

This tilt/pan bracket is for your MG995 / MG996-like servo motor.

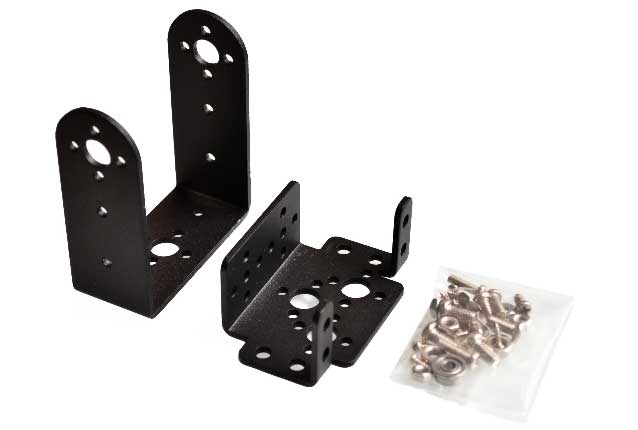

This kit is composed of 2 brackets, one U-shaped bracket, and one multifunctional servo base bracket that attaches for two servo motors. It also has screws, nuts, and bearing included for easier mounting. The brackets are made of aluminum, making it lightweight. This tilt/pan kit creates two degrees of freedom (DOF).

The torque of this tilt/pan kit would depend on the servo motor used.

One use of this tilt/pan kit is for mounting a servo-controlled action camera.

There is no servo motor included in this kit.

QUICK SPECS:

• Material: Aluminum composite
• Weight: 45.2 grams without servo
• Dimensions of base bracket: 65 x 55 x 25 mm (L x W x H)

• Dimensions of servo bracket: 57 x 24 x 37 mm (L x W x H)
