Arduino Mega 2560 Rev3

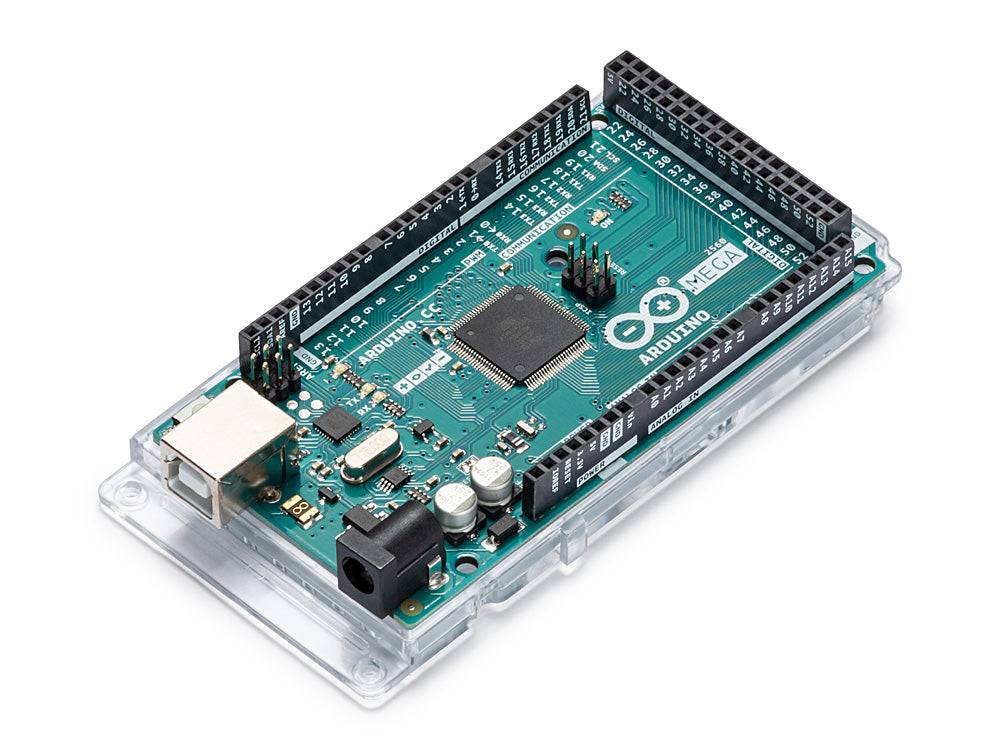

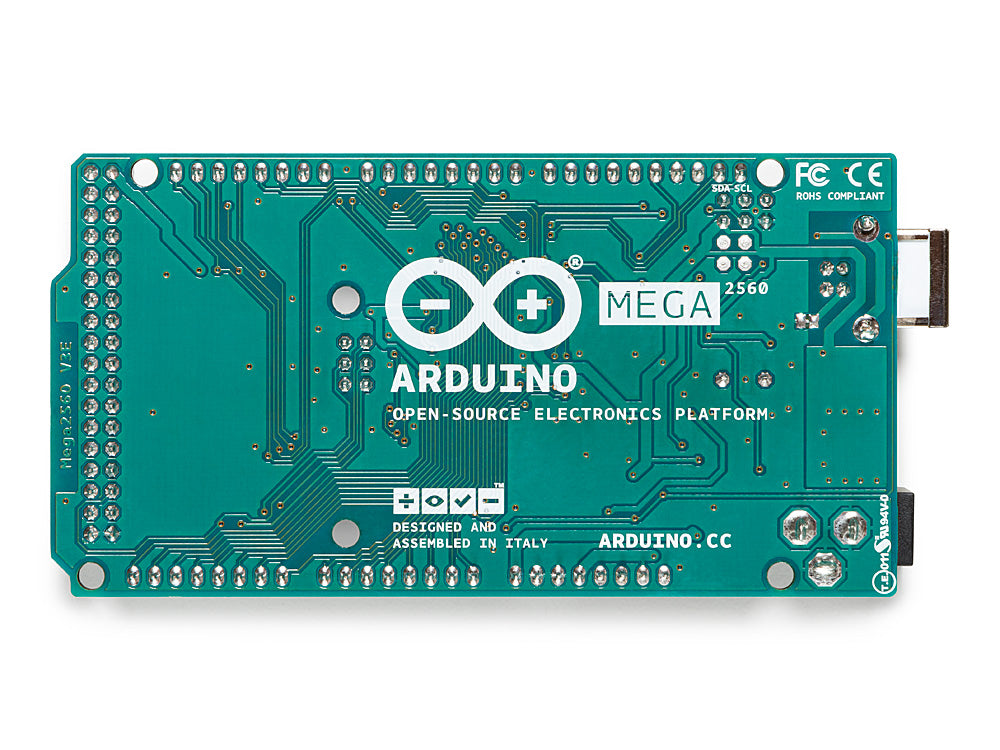

Arduino Mega 2560 R3 is the go-to board when your project needs more pins, memory, and serial ports. Powered by the ATmega2560 @ 16 MHz, it delivers 54 digital I/O (15 PWM), 16 analog inputs, and 4 hardware UARTs—perfect for robots, CNC/3D printers, dashboards, and classroom labs in the Philippines. It keeps 5 V logic and the R3 shield layout, so it plays nicely with most Arduino shields, sensors, and displays.

Why upgrade to the Mega

  • Massive I/O headroom: 54 digital pins, 16 analog inputs, 15 PWM for complex control panels and bots.
  • Four UARTs: Connect GPS, GSM, Bluetooth, and a PC/USB at the same time.
  • More memory: 256 KB Flash, 8 KB SRAM for larger sketches, libraries, and buffers.
  • Shield & library compatible: R3 footprint, 5 V logic, and Arduino ecosystem support.

What you can build

  • Robotics: 4WD/6WD platforms with multiple motor drivers, IMU, ToF, encoders
  • CNC/3D printing: motion control (e.g., RAMPS-style shields), endstops, heaters, fans
  • Data acquisition: multi-sensor logging with RTC + microSD
  • Interface hubs: keypads, relays, stepper drivers, large TFTs and LED matrices

Starter bundles (quick picks)

Recommended add-ons

Technical specifications

Microcontroller ATmega2560 (8-bit AVR) @ 16 MHz
Operating voltage 5 V logic
Input voltage (recommended) 7–12 V via DC jack (allowable 6–20 V)
Digital I/O pins 54 (15 PWM)
Analog inputs 16 (10-bit ADC)
Hardware serial 4× UART (Serial, Serial1, Serial2, Serial3)
Flash / SRAM / EEPROM 256 KB (8 KB bootloader) / 8 KB / 4 KB
Interfaces I²C (SDA/SCL), SPI (ICSP header), UARTs
USB interface ATmega16U2 on-board
USB connector USB-B
Power connectors USB 5 V, DC barrel jack 5.5×2.1 mm (center-positive), VIN/5V/3V3/GND pins
Per-pin DC current 20 mA (observe absolute maximum ratings)
Dimensions ~101.5 × 53.4 mm (R3 footprint)

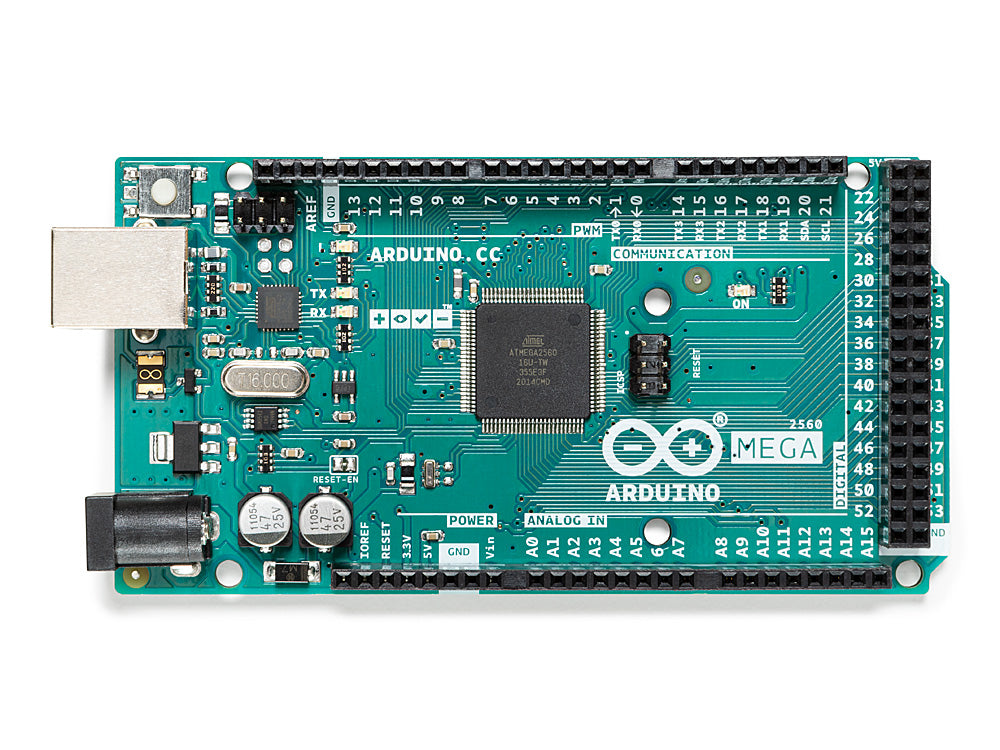

Pinout & power tips

  • SPI: Use the 6-pin ICSP header for SPI to ensure shield compatibility (don’t rely on pins 50–53).
  • 5 V logic: If a module is 3.3 V-only, add a logic level converter.
  • Serial devices: Put GPS/GSM/Bluetooth on Serial1–3 and keep Serial free for debugging.

Learning path (Mega-focused)

  1. Inputs/outputs: multiplexed buttons, multiple PWM channels, LCD keypads
  2. Multi-sensor hub: BME280 + IMU + radar/PIR + logging
  3. Motion control: DRV8825/A4988 steppers, endstops, acceleration profiles
  4. Comms gateway: UART bridges to Bluetooth, GSM, LoRa, Ethernet

What’s in the box

  • Arduino Mega 2560 R3 board

Compatibility & notes

  • Shields: R3 footprint with 5 V logic; most UNO shields work, but check library pin maps.
  • Drivers: Official boards use ATmega16U2 and usually don’t need extra drivers; some compatibles use CH340/CP2102 (install if required).
  • Power budget: Servos/steppers need external power; don’t pull motor current from the board’s 5 V rail.

FAQs – Arduino Mega 2560 R3 (Philippines)

How is the Mega different from the UNO?
Mega has far more I/O (54 vs 14), more memory (256 KB vs 32 KB), and 4 UARTs instead of 1—ideal for large projects and multiple peripherals.
Which cable and power supply do I need?
Use a USB-B cable for programming. For standalone projects, power via the DC barrel jack (7–12 V recommended) or a regulated 5 V supply.
Will my UNO shields work?
Yes—most UNO R3 shields are compatible. For SPI shields, use the ICSP header; adjust chip-select pins if stacking multiple shields.
Do you ship nationwide and support school/corporate orders?
Yes. We ship nationwide across the Philippines via trusted couriers and can prepare classroom bundles and bulk quotations on request.
