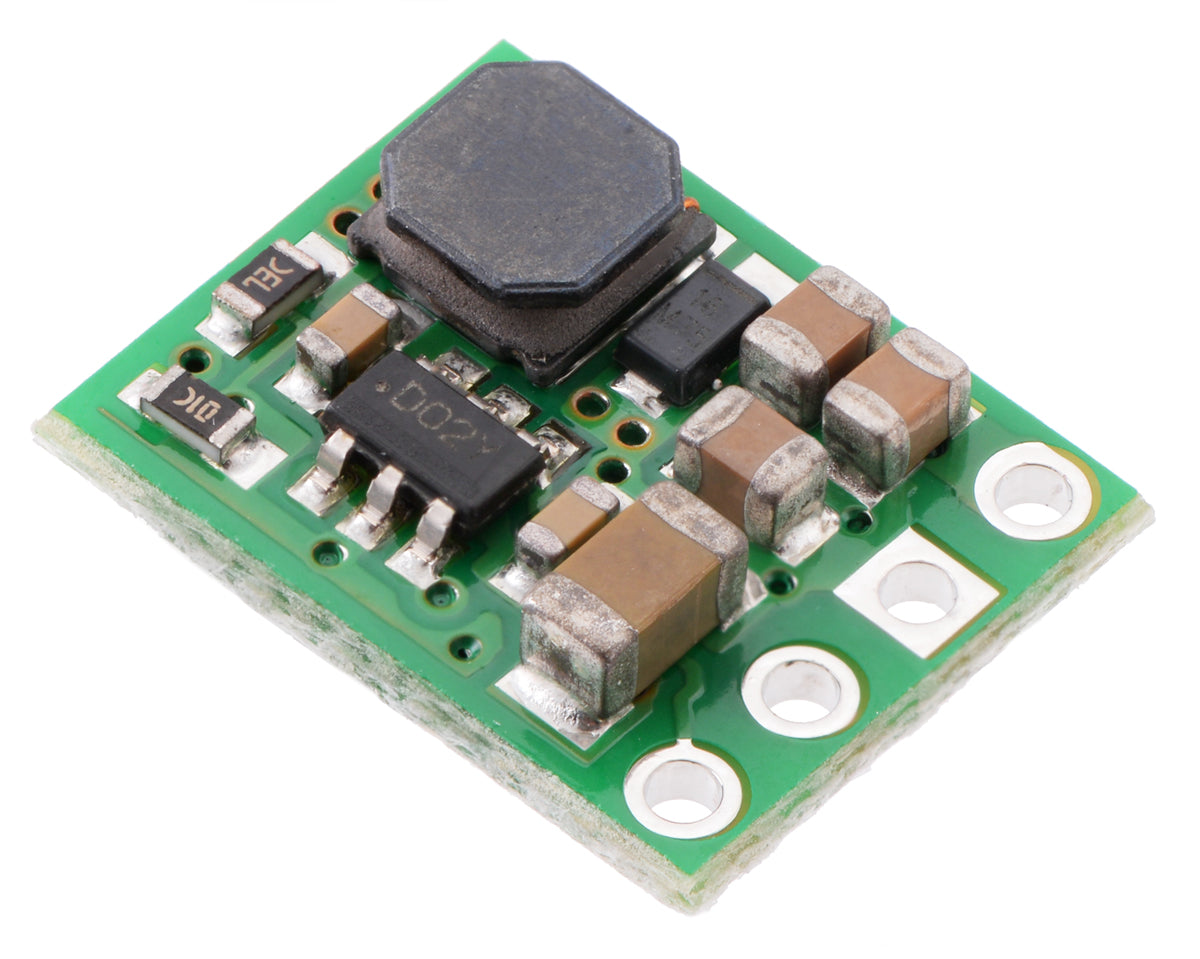

Pololu 5V 600mA Step-Down Voltage Regulator (D36V6F5)

Power your 5V electronics from almost anything. The Pololu D36V6F5  is a tiny buck (step-down) switching regulator that takes 5.2V–50V input and outputs a stable 5V (±4% accuracy), with up to 600mA maximum output current (thermal-dependent). Because it’s a switching regulator, it’s typically far more efficient than a linear 7805—especially when dropping from higher voltages like 12V/24V down to 5V. :contentReference[oaicite:0]{index=0}

  • Wide input range: 5.2V to 50V (minimum input depends on dropout; see notes below).
  • Low-power capable: enable pin can put the board into a low-power state drawing <2µA (typ.).
  • Low quiescent current: <0.1mA while enabled with no load (typical graphs available on Pololu).
  • Protection features: over-current/short-circuit protection and thermal shutdown.
  • Super small: 0.5" × 0.4" × 0.1" (13×10×3mm), ~0.5g.

*Actual continuous output current depends on input voltage, airflow, and thermal conditions (see Pololu’s current graphs).

Important: This board does not have reverse-voltage protection. Double-check polarity before powering.

Why/Benefits

Efficient 5V from higher voltages
  • Great for 12V/24V systems feeding 5V sensors, MCUs, and modules
  • Less heat than linear regulators when dropping large voltage differences
  • Compact footprint for tight builds
Battery & low-power friendly
  • Enable pin supports ultra-low sleep current (<2µA typical)
  • Low quiescent current while enabled (<0.1mA)
  • Good for always-on projects that still need long battery life

Technical specifications

Product Pololu 5V, 600mA Step-Down Voltage Regulator D36V6F5
Input voltage 5.2V to 50V (minimum input subject to dropout)
Output voltage 5V (4% accuracy)
Max output current 600mA (thermal dependent)
Switching frequency Fixed 2.1 MHz
Enable / sleep High-voltage enable pin; <2µA typical in low-power state
Quiescent current <0.1mA (enabled, no load); can be reduced via enable pin
Protection Over-current/short-circuit, over-temperature shutdown
Reverse voltage protection No

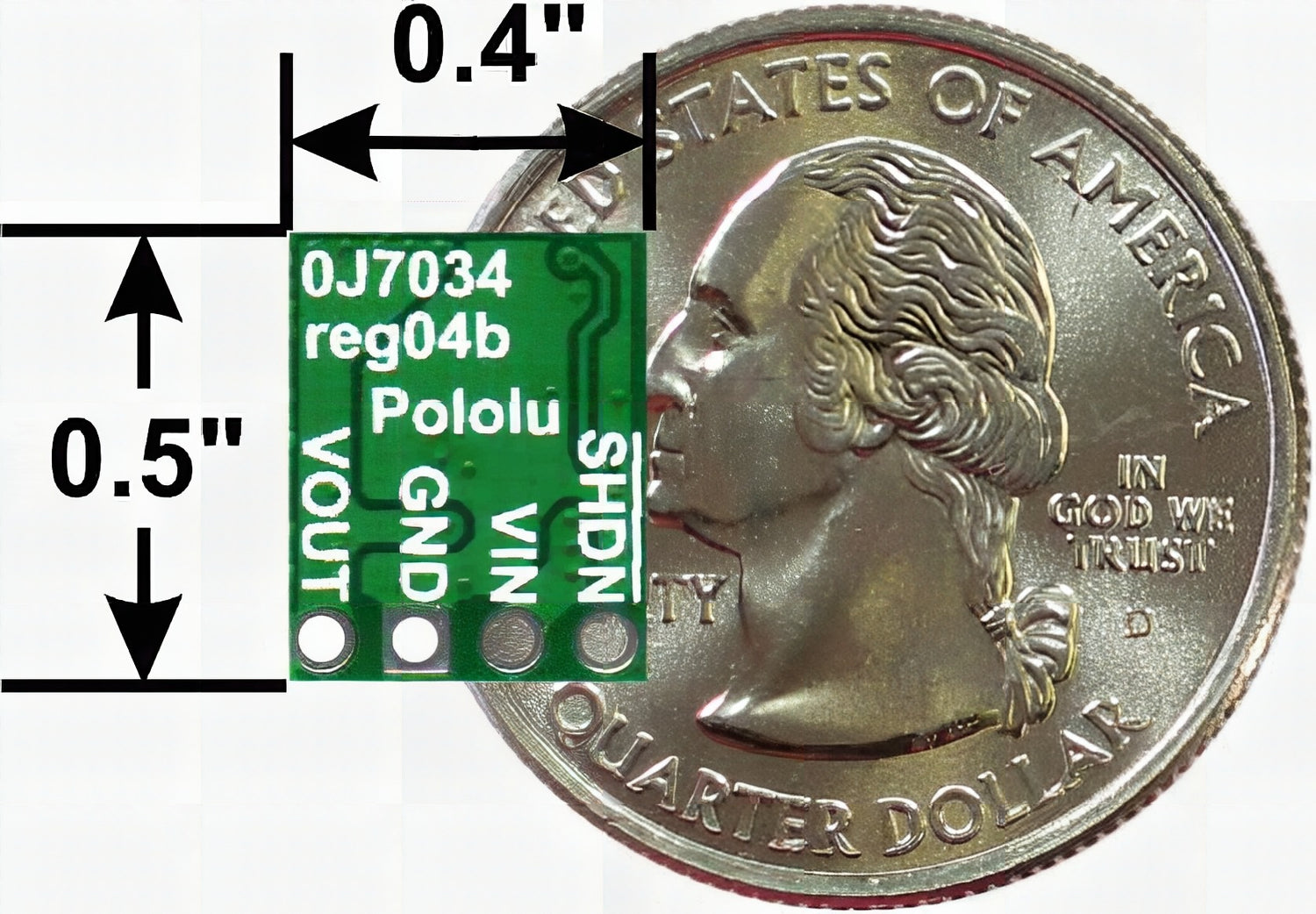

Size 0.5" × 0.4" × 0.1" (13 × 10 × 3 mm)
Weight 0.5 g

Pinout & power notes

  • VIN: connect your input supply (5.2–50V).
  • VOUT: regulated 5V output.
  • GND: common ground between input and load.
  • EN (Enable): use to switch the regulator on/off or enter ultra-low-power mode (<2µA typical).

Dropout reminder: the minimum input voltage depends on dropout; for a stable 5V output, ensure your VIN stays sufficiently above 5V under load.

FAQ

  • Can I use this to power an ESP32/Arduino from 12V?
    Yes—12V is within the 5.2–50V input range. Just ensure your total 5V load stays within the regulator’s current/thermal limits.
  • Does it have reverse-polarity protection?
    No. Use correct polarity and consider adding an external protection diode or fuse for safety.
  • How do I make it ultra low power?
    Use the enable pin to disable the regulator; Pololu notes it can draw less than 2µA typical in the low-power state.

5V, 600mA Step-Down Voltage Regulator D36V6F5

5V, 600mA Step-Down Voltage Regulator D36V6F5

Low stock: 1 left

Product Code

POL3792

₱ 446.00
₱ 446.00
Sale Sold out
View full details
