Out Of Stock DC Motor 550 12V

DC Motor 550 12V

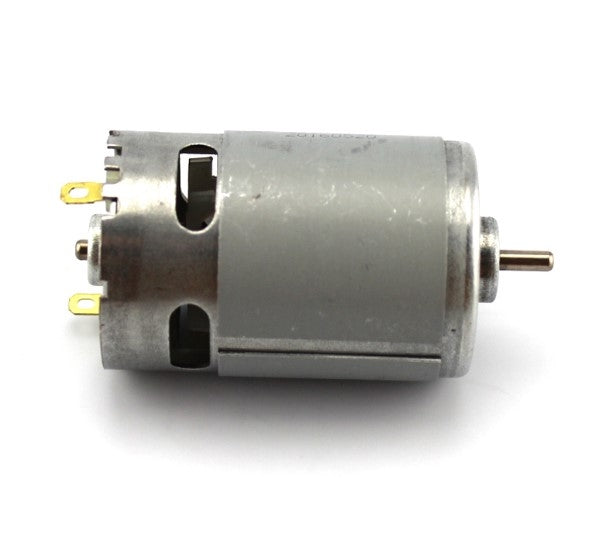

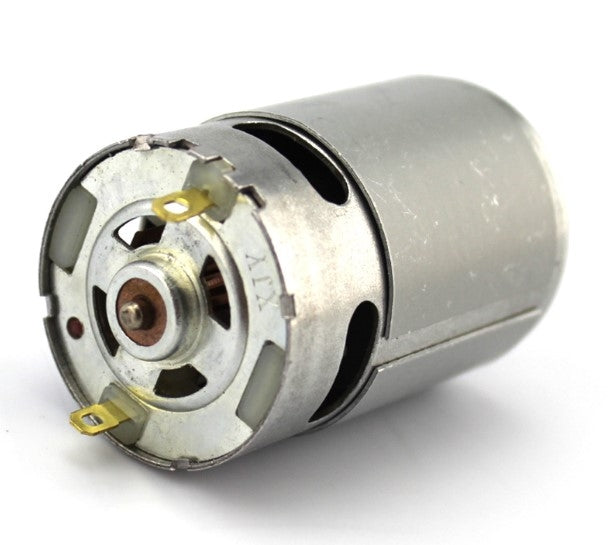

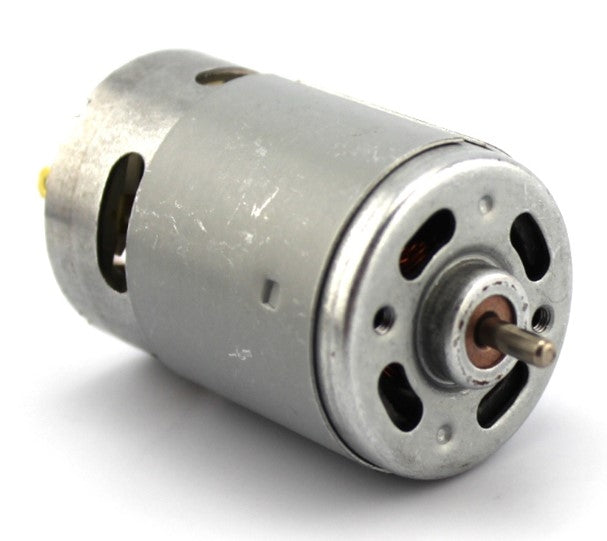

This is the powerful RS-550 Motor 19300rpm 12V 62.49oz-in with a 3-pole balanced armature. This motor can also be purchased with a choice of planetary geardowns which reduces the speed and increases torque. If you are using this motor with a microcontroller, you will need a powerful motor controller.

  • DC Gearmotor
  • Nominal Voltage: 12V
  • No Load RPM: 19300
  • Stall Current: 85A
  • Stall Torque: 69 oz-in
  • Shaft Diameter: 3.175 mm
  • Backshaft for Encoder
SPECIFICATIONS:

  • Nominal Voltage: 12V
  • No Load RPM: 19300
  • No Load Current: 1.4A
  • Rated RPM: 17100
  • Rated Torque: 7.86 oz-in
  • Stall Current: 85A
  • Stall Torque: 69 oz-in
  • Shaft Type: Round

DIMENSIONS:

  • Size: 36.6D x 56.9L mm
  • Weight: 220 g
  • Shaft Diameter: 3.175 mm
  • Shaft Length: 7.62 mm
