Measure Temperature with a Sensor Made for Embedded Builds

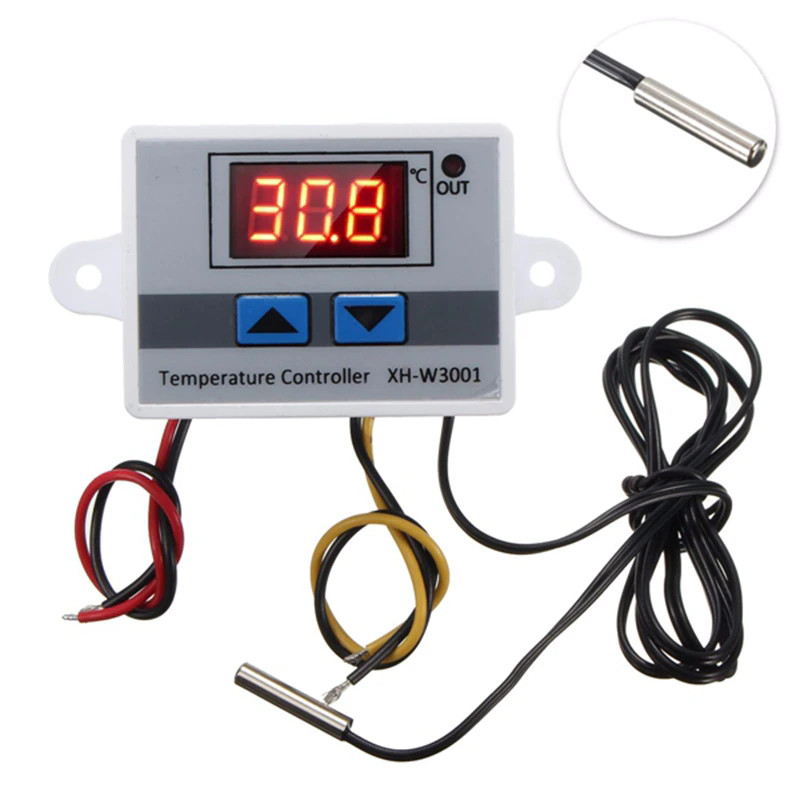

The XH-W3001 Digital Temperature Controller Thermostat 220V is a temperature sensor with digital output designed for temperature logging, thermal control, and equipment monitoring. It is a practical fit for makers, students, and engineers who want reliable sensor data in embedded builds.
Key details include Temperature Measurement range: -50-110°; Temperature Control Range: -50-110°; Supply Voltage: AC 110V /220V /DC 12V /24V.
Why you’ll love it
- Controller output: Relay Output(Output Switch)
- Sensing range: -50-110°
- Power range: AC 110V /220V /DC 12V /24V
- Expected accuracy: 0.1°
- Compact size: about 5.5 x 3.8 x 3.2cm (2.17 x 1.50 x 1.26” )
- Maker-friendly build: Easy to use in prototypes, classroom projects, and custom electronics
Compare with similar products
| Product | Sensor style | Standout |
|---|---|---|
| XH-W3001 Digital Temperature Controller Thermostat 220V | temperature sensor with digital output | Current item |
| STC-1000 Digital Temperature Controller with Waterproof Sensor (AC 110-220V) | temperature sensor with digital output | waterproof build, digital output |
| W1209 Temperature Control Thermostat Switch | button or switch input module | temperature sensing |
| Thermocouple Wire TP01 | thermocouple module | waterproof build, temperature sensing |
What you can build
This sensor is a good fit for thermostats, incubators, battery monitors, weather nodes, and thermal data loggers.
Starter bundles
Pair it with an Arduino-compatible board, ESP32, or Raspberry Pi, plus a breadboard and jumper wires for quick setup and testing.
Recommended add-ons
Useful add-ons include a microcontroller board, jumper wires, and pull-up or pull-down support when needed, depending on how you plan to power, mount, and log the sensor.
Technical specifications
| Product | XH-W3001 Digital Temperature Controller Thermostat 220V |
|---|---|
| Output Type | Relay Output(Output Switch) |
| Output Capacity | 10A |
| Temperature Measurement range | -50-110° |
| Temperature Control Range | -50-110° |
| Supply Voltage | AC 110V /220V /DC 12V /24V |
| Control Accuracy | 0.1° |
| Display Accuracy | 0.1° |
| Size(Length x Width x Height) | about 5.5 x 3.8 x 3.2cm (2.17 x 1.50 x 1.26” ) |
Wiring & usage notes
Connect power and ground, then wire the output pin to a digital GPIO input. Check whether the module uses active-high or active-low logic in your code.
What’s in the box
1 × XH-W3001 Digital Temperature Controller Thermostat 220V
