Compact SMD WiFi Module for PCB Integration and Custom IoT Designs

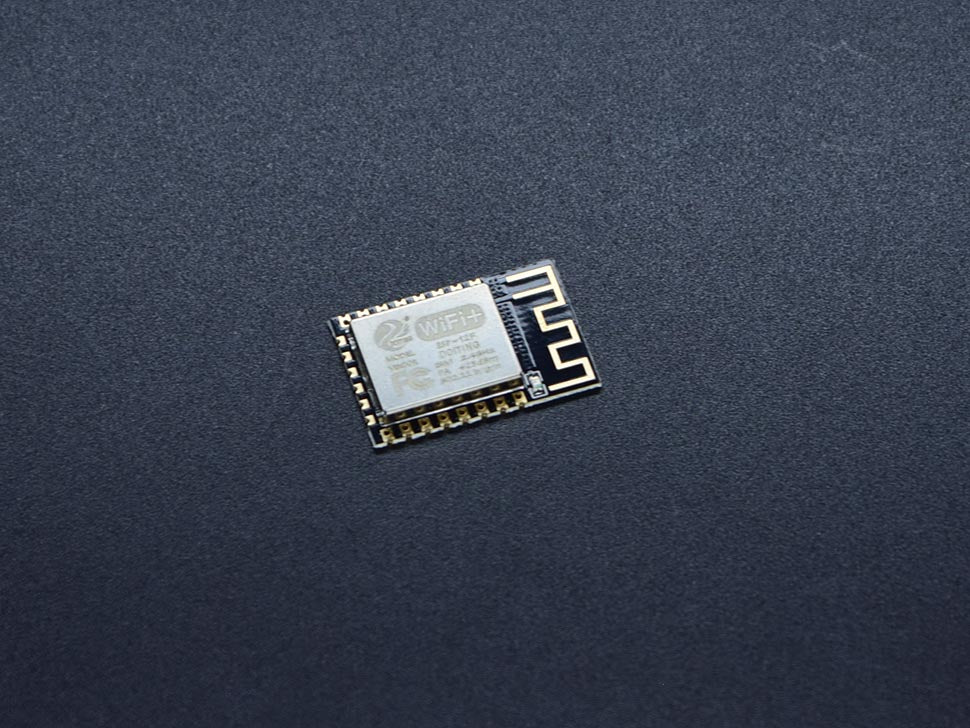

The ESP8266 ESP-12F WiFi Module is the go-to choice when you need WiFi on a custom PCB without the overhead of a full development board. Roughly the size of a thumbnail, it packs an 80 MHz Tensilica L106 processor, 4 MB of onboard flash, 11 usable GPIO pins, and a complete TCP/IP stack — all in an SMD-friendly form factor ready for mass production.
Unlike the ESP-01, the ESP-12F exposes more GPIO pins and includes a PCB antenna shielded with a metal cover for improved RF performance and FCC/CE compliance — making it suitable for commercial and industrial IoT products.
Note: The ESP-12F is a bare module — no USB, no voltage regulator, no reset button. You will need external 3.3V power and a USB-to-serial adapter to program it. For breadboard-friendly prototyping, consider the NodeMCU V3 or WeMos D1 Mini instead.
Why choose the ESP-12F over ESP-01?
| Feature | ESP-12F | ESP-01 / ESP-01S |
|---|---|---|
| GPIO pins | 11 usable GPIOs | 2 GPIOs |
| Flash memory | 4 MB | 512 KB / 1 MB |
| PCB antenna | ✅ Shielded metal cover | PCB trace only |
| Form factor | SMD castellated — PCB integration | Through-hole 2.54 mm pitch |
| ADC pin | ✅ Yes (TOUT) | ❌ No |
| Best for | Custom PCB, production runs, IoT products | Quick Arduino WiFi add-on |
Key features
- 11 GPIO pins: SPI, I2C, UART, PWM — far more flexible than ESP-01
- 4 MB flash: Room for full firmware + OTA updates
- Shielded metal cover: Better RF performance and reduced interference
- 3.3V operation: Works with low-power battery designs
- Integrated TCP/IP stack: Station, AP, and Station+AP modes
- Arduino + MicroPython + AT firmware: Program with your preferred toolchain
Technical specifications
| Model | ESP8266 ESP-12F |
|---|---|
| CPU | Tensilica L106, 80 / 160 MHz |
| Flash Memory | 4 MB SPI Flash |
| GPIO Pins | 11 usable (SPI, I2C, UART, PWM, ADC) |
| ADC | 1 × 10-bit (TOUT, 0–1V range) |
| WiFi Standard | 802.11 b/g/n, 2.4 GHz |
| Operating Voltage | 3.0V – 3.6V |
| Operating Current | ~80 mA average, 170 mA peak |
| Antenna | Onboard PCB antenna with metal shield |
| Dimensions | 24 × 16 mm |
| Interface | UART (AT commands), SPI, I2C, PWM |
Frequently Asked Questions
Do I need a USB-to-serial adapter to program this? Yes. The ESP-12F has no USB port. You need a 3.3V USB-to-serial adapter (CP2102 or CH340) to flash firmware.
Can I use Arduino IDE to program it? Yes. Install the ESP8266 board package via Arduino Board Manager and select "Generic ESP8266 Module".
What is the difference between ESP-12E and ESP-12F? The ESP-12F has improved antenna design and more reliable GPIO routing. ESP-12F is the recommended version for new designs.
Is this 5V compatible? No. It operates at 3.0V–3.6V. Applying 5V will damage the module. Use a 3.3V regulator.
