Water Turbidity Detection Kit

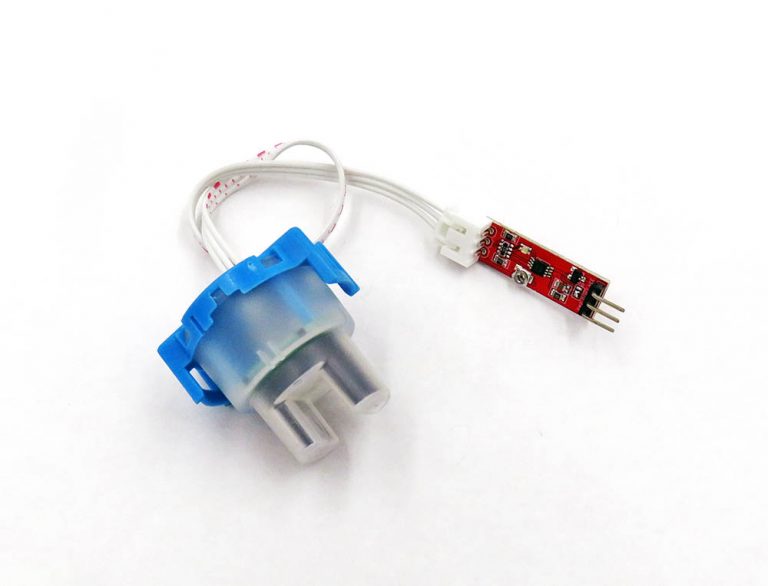

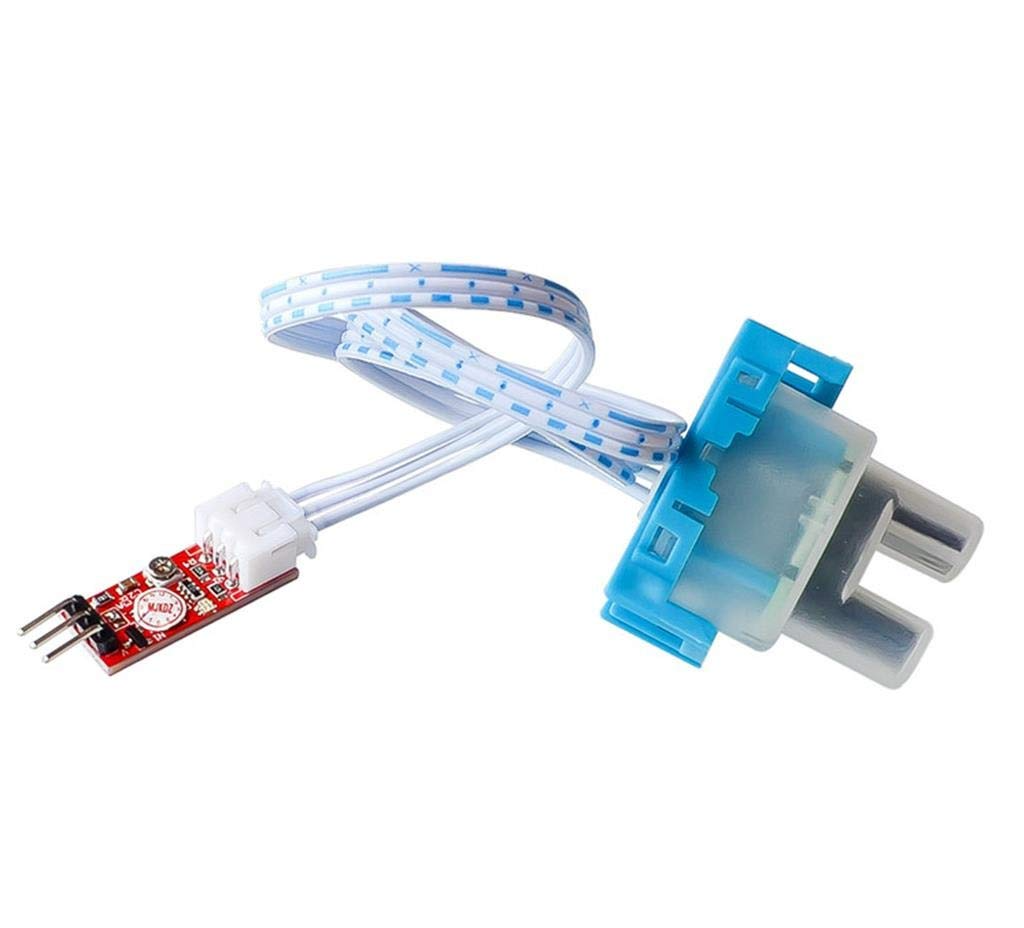

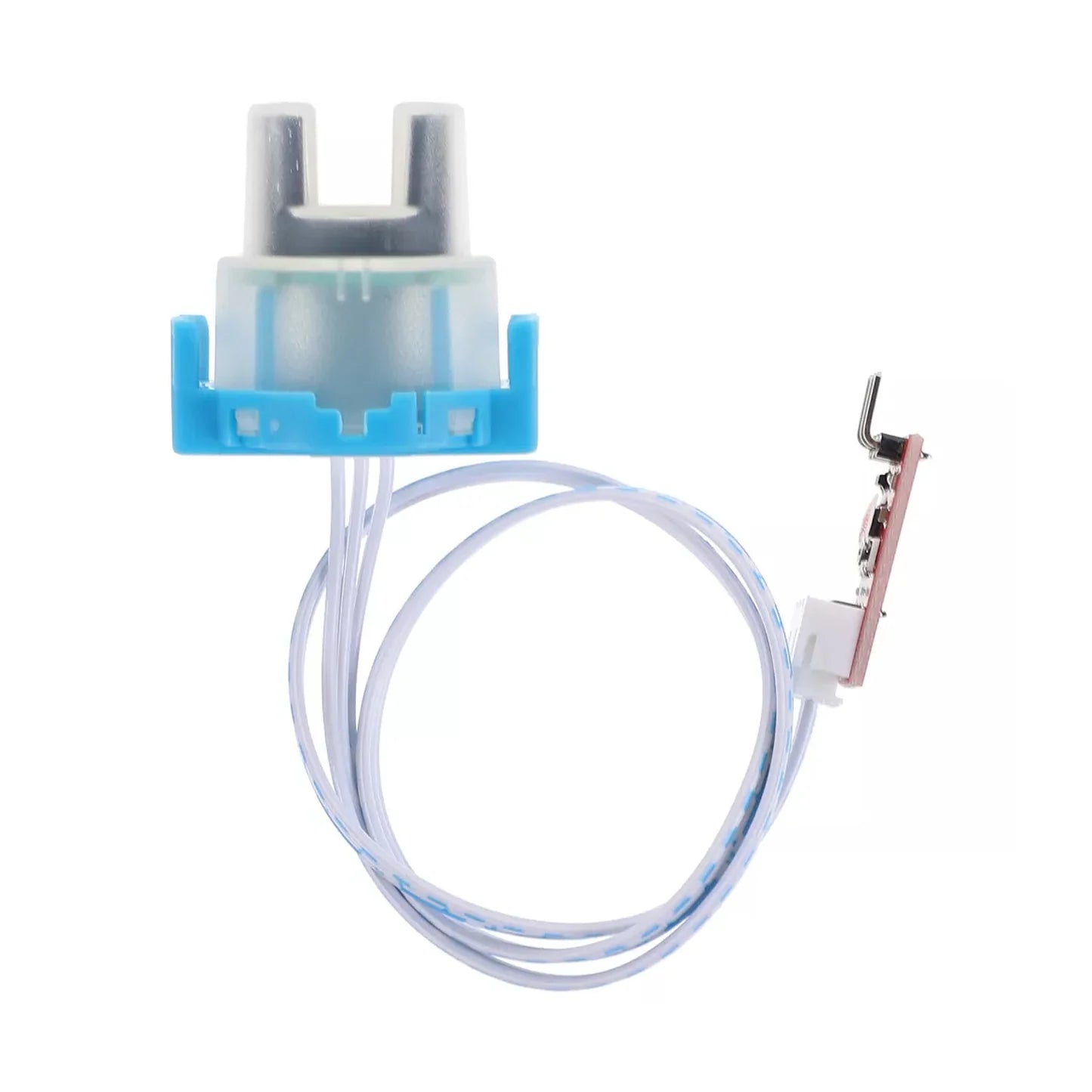

The TS-300B Turbidity Sensor Water Turbidity Module is a reliable and efficient solution for measuring water clarity by detecting suspended particles. Turbidity is a key factor in water quality analysis, and this module provides a straightforward method for monitoring it. Designed for use with single-chip microcontrollers, the module reads and calculates turbidity levels via an analog port, making it ideal for projects ranging from environmental monitoring to industrial applications.

To ensure accurate results, the TS-300B Turbidity Sensor requires calibration using a turbidity calibration solution. Each module outputs a unique voltage based on turbidity levels, which must be calculated rather than simply read with a multimeter. The module is sensitive to environmental factors such as light and temperature, both of which can influence the output voltage. For optimal performance, it should be used away from direct light and under stable temperature conditions.

Operating within a voltage range of 3.3V-5V and a measurement range of 0-1000 NTU, the TS-300B is well-suited for various water quality measurement tasks. It features an anti-reverse circuit for safe operation and supports both analog and high/low level output, offering flexibility for different projects. Its compatibility with popular microcontrollers and broad measurement range make it an ideal choice for students, researchers, and engineers working on real-time water clarity monitoring.

Specifications:

• Operating Voltage: 5V DC
• Working Current: 40mA (Max)
• Response Time: <500ms
• Insulation Resistance: 100MΩ (Min)
• Output Mode:
  • Analog Output: 0~4.5V
  • Digital Output: High/low-level signal (threshold adjustable via potentiometer)
• Operating Temperature: -20°C to 90°C
• Module Size: 38.6mm x 22.1mm

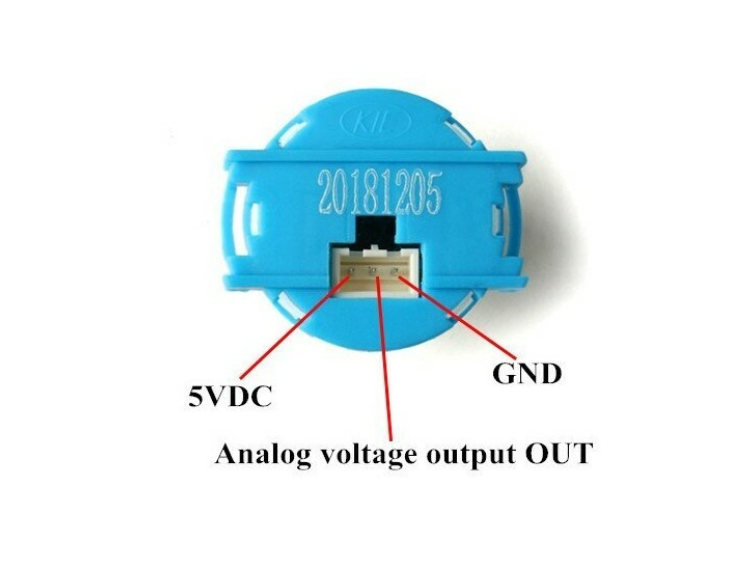

• Sensor Interface: XH2.54
