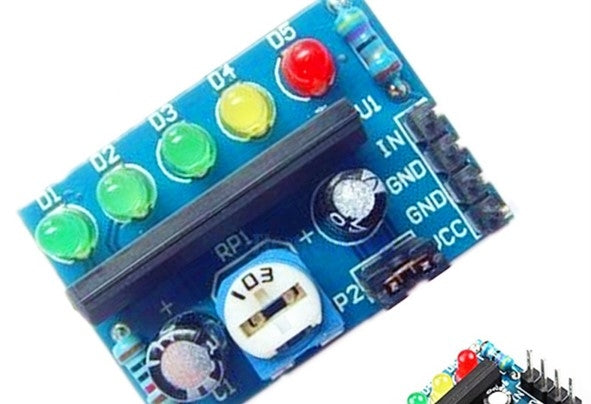

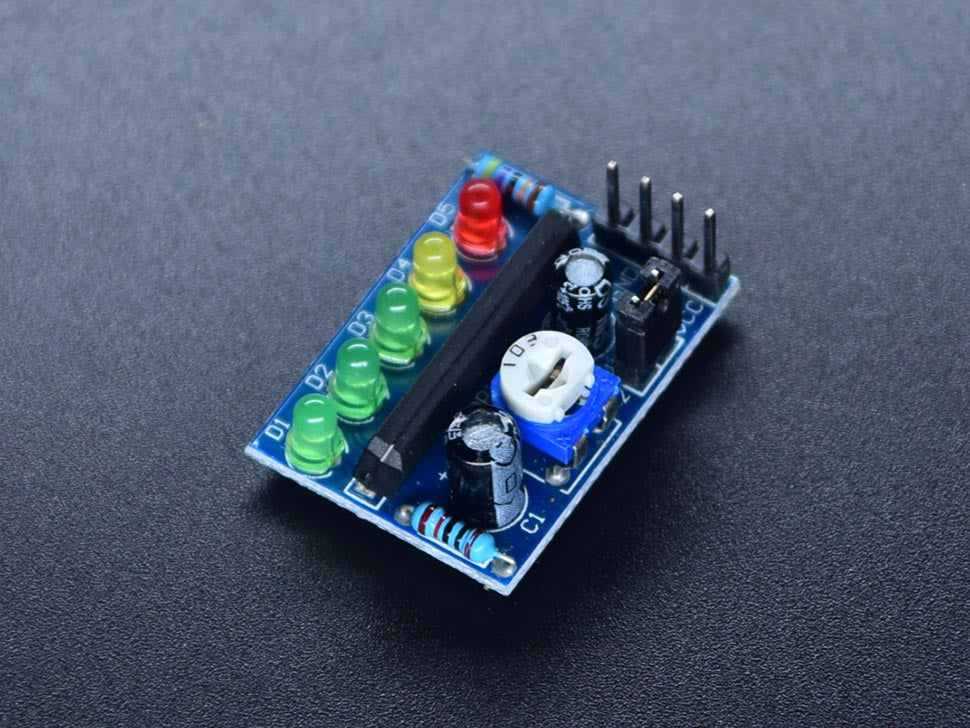

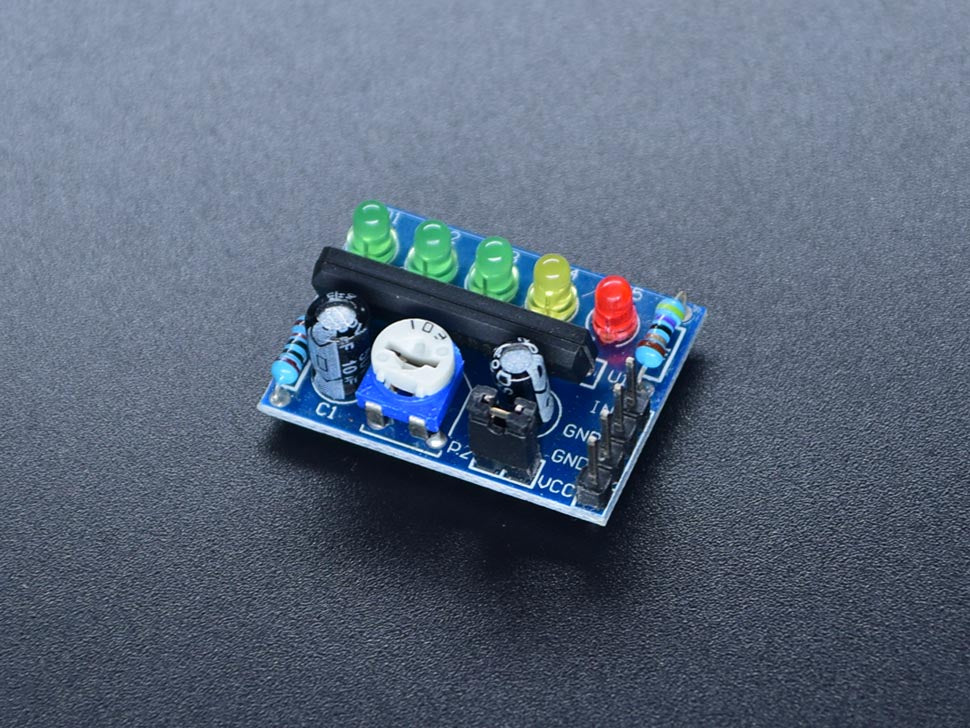

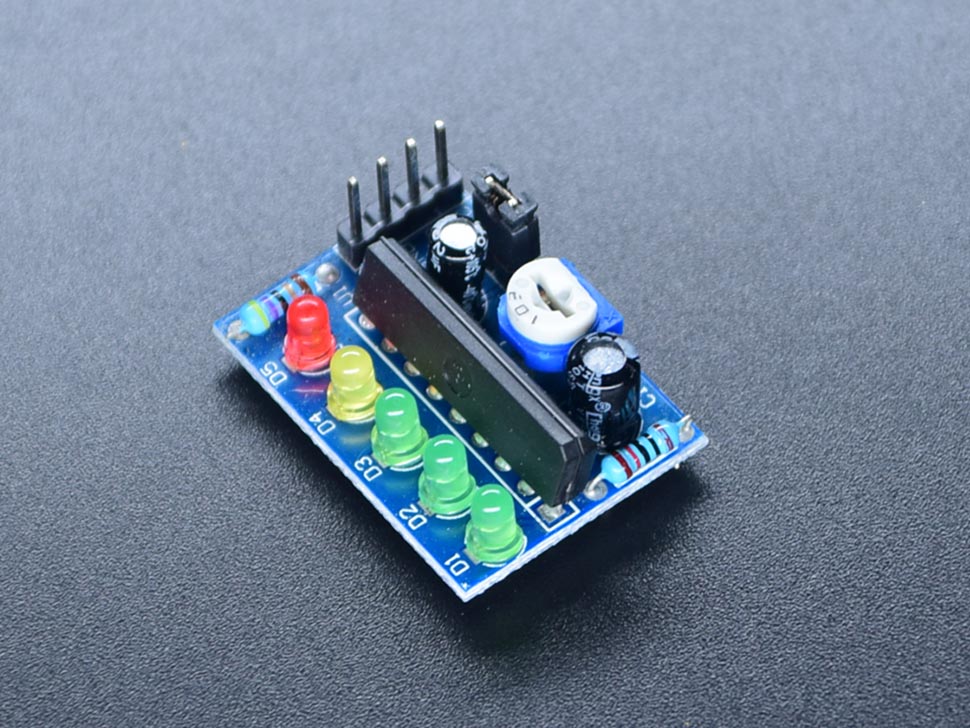

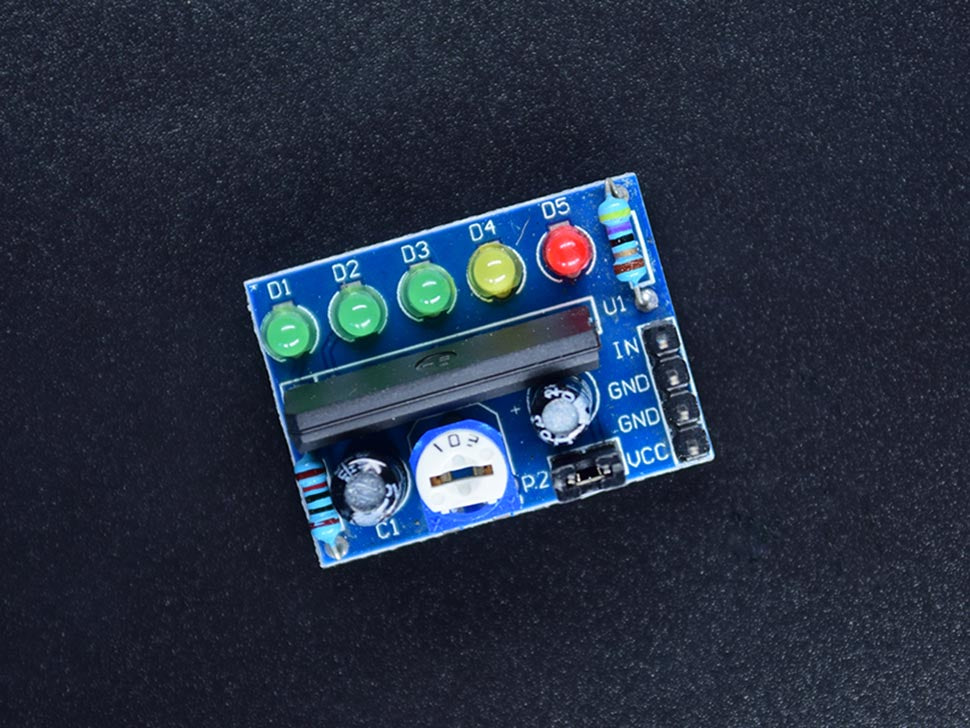

Voltage Level Indicator KA2284

This Voltage-Level Indicator KA2284 is the practical component every maker needs. It provides a visual representation of a source power's voltage level using different colored LEDs. Additionally, an onboard potentiometer can be used to adjust the range for the LEDs. It is ideal as a battery voltage visual indicator or a VU meter for audio applications and the likes.

Specifications:

• Working voltage: 3.5V-12V

• the magnitude of the level can be adjusted;

• AC and DC signals can be controlled by jumper;

• PCB board Dimension: 29 (mm) x21 (mm);

Inclusions: 1 x Voltage Level Indicator KA2284

Documents:

• KA2284 Datasheet
