Detect Nearby Objects Without Contact

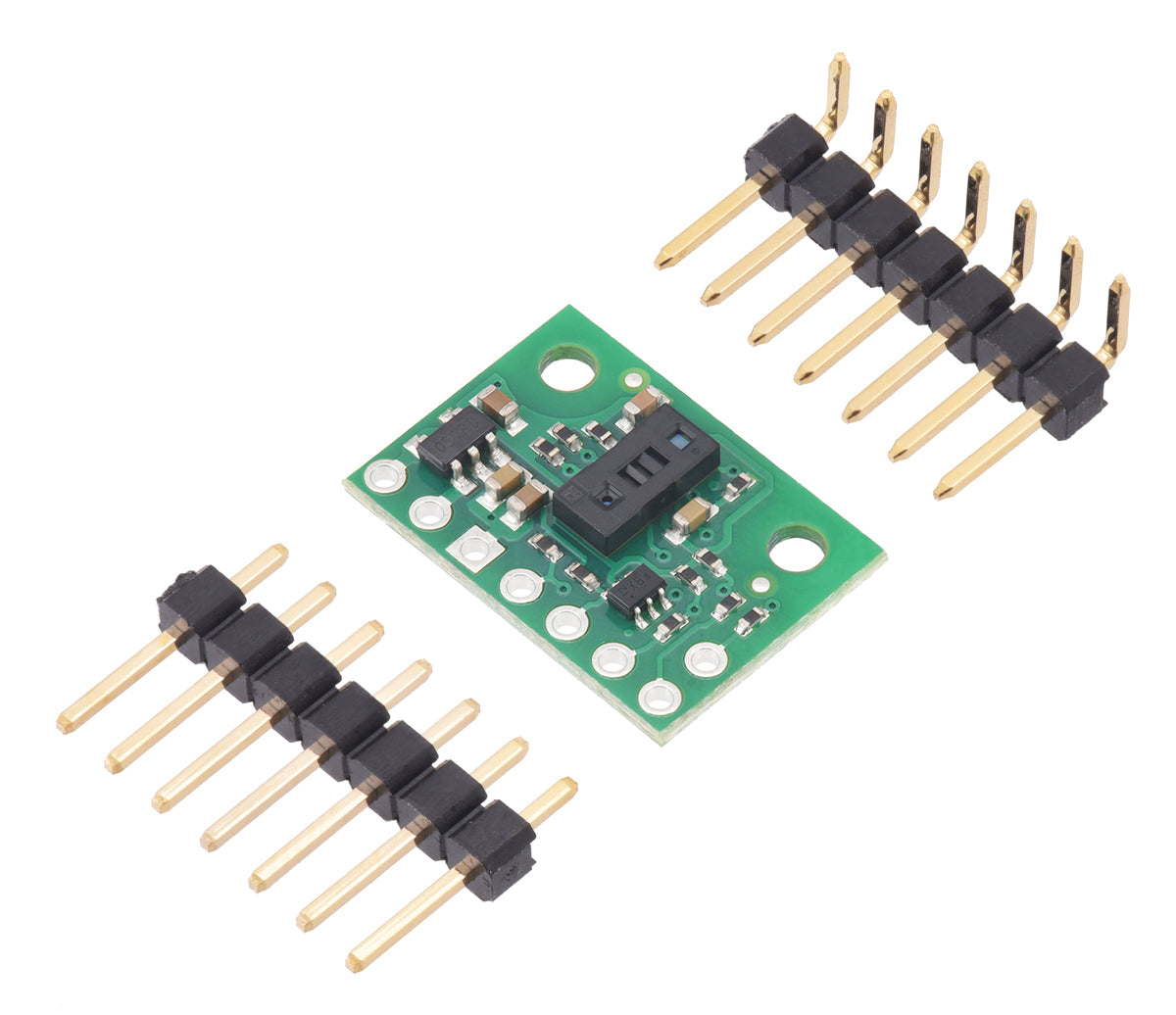

The VL53L7CX Time-of-Flight 8×8-Zone Wide FOV Distance Sensor Carrier with Voltage Regulator, 350cm Max is an infrared distance sensor designed for distance measurement, obstacle detection, level checks, and basic automation. It is a practical fit for makers, students, and engineers who want reliable sensor data in embedded builds.
Key details include Range: 20mm min; up to 3.5m max (conditions dependent); Operating voltage: 2.5V to 5.5V (via VIN; on-board 3.3V regulator); Zones / output: 4×4 or 8×8 zones; histogram output format.
Important: Infrared and optical readings change with target color, surface finish, distance, and strong ambient light. Test with your real target before final mounting.
Why you’ll love it
- Current draw: ~100mA average; peak can reach 150mA
- Easy wiring: I²C (level-shifted to VIN logic level)
- Controller output: 4×4 or 8×8 zones; histogram output format
- Sensing range: 20mm min; up to 3.5m max (conditions dependent)
- Power range: 2.5V to 5.5V (via VIN; on-board 3.3V regulator)
- Readable detail: 1mm
Compare with similar products
| Product | Sensor style | Standout |
|---|---|---|
| VL53L7CX Time-of-Flight 8×8-Zone Wide FOV Distance Sensor Carrier with Voltage Regulator, 350cm Max | infrared distance sensor | Current item |
| VL53L8CX Time-of-Flight 8×8-Zone Distance Sensor Carrier with Voltage Regulators, 400cm Max | infrared distance sensor | motion sensing |
| VL53L4CD Time-of-Flight Distance Sensor Carrier with Voltage Regulator, 120cm Max | infrared distance sensor | motion sensing |
| VL53L1X Time-of-Flight Distance Sensor Carrier with Voltage Regulator, 400cm Max | infrared distance sensor | motion sensing |
What you can build
This sensor is a good fit for robot obstacle avoidance, tank level checks, parking aids, object counters, and range alarms.
Starter bundles
Pair it with an Arduino-compatible board, ESP32, or Raspberry Pi, plus a breadboard or jumper wires for quick setup and testing.
Recommended add-ons
Useful add-ons include breadboards, jumper wires, displays, enclosures, and logging modules, depending on how you plan to power, mount, and log the sensor.
Technical specifications
| Product | VL53L7CX Time-of-Flight 8×8-Zone Wide FOV Distance Sensor Carrier with Voltage Regulator, 350cm Max |
|---|---|
| Model | VL53L7CX ToF 8×8-zone wide FOV distance sensor carrier |
| Typical active current | ~100mA average; peak can reach 150mA |
| Interface | I²C (level-shifted to VIN logic level) |
| Zones / output | 4×4 or 8×8 zones; histogram output format |
| Range | 20mm min; up to 3.5m max (conditions dependent) |
| Minimum range | 20mm; resolution: 1mm. |
| Operating voltage | 2.5V to 5.5V (via VIN; on-board 3.3V regulator) |
| Resolution | 1mm |
Wiring & usage notes
Check the pin labels on the VL53L7CX Time-of-Flight 8×8-Zone Wide FOV Distance Sensor Carrier with Voltage Regulator, 350cm Max and match them to your controller voltage, ground, and signal pins. Keep wiring short and verify the logic level before powering the module. Infrared and optical readings change with target color, surface finish, distance, and strong ambient light. Test with your real target before final mounting.
What’s in the box
1 × VL53L7CX Time-of-Flight 8×8-Zone Wide FOV Distance Sensor Carrier with Voltage Regulator, 350cm Max
Frequently Asked Questions
What does the VL53L7CX Time-of-Flight 8×8-Zone Wide FOV Distance Sensor Carrier with Voltage Regulator, 350cm Max measure?
It is designed to measure distance or object presence.
Can I use it with Arduino, ESP32, or Raspberry Pi?
Yes. It is well suited for common maker and embedded platforms, as long as you power it at the correct voltage and match the signal level to your controller.
What affects accuracy?
Power quality, wiring, mounting, target material, and the real environment can all affect the reading. It is best to test and calibrate in the final setup.
Is it good for prototyping?
Yes. It is a practical choice for learning, proof-of-concept builds, and small automation projects.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
Compatibility & downloads
// downloads
- VL53L7CX datasheet pdf
- Schematic pdf
