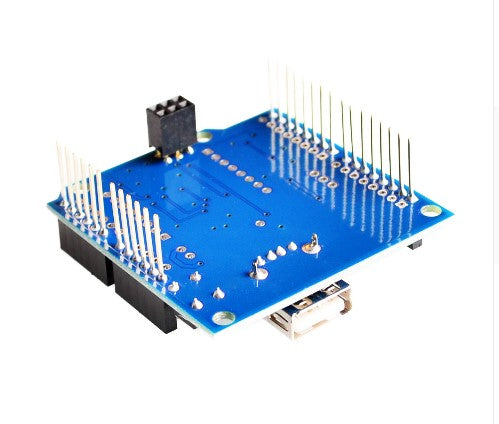

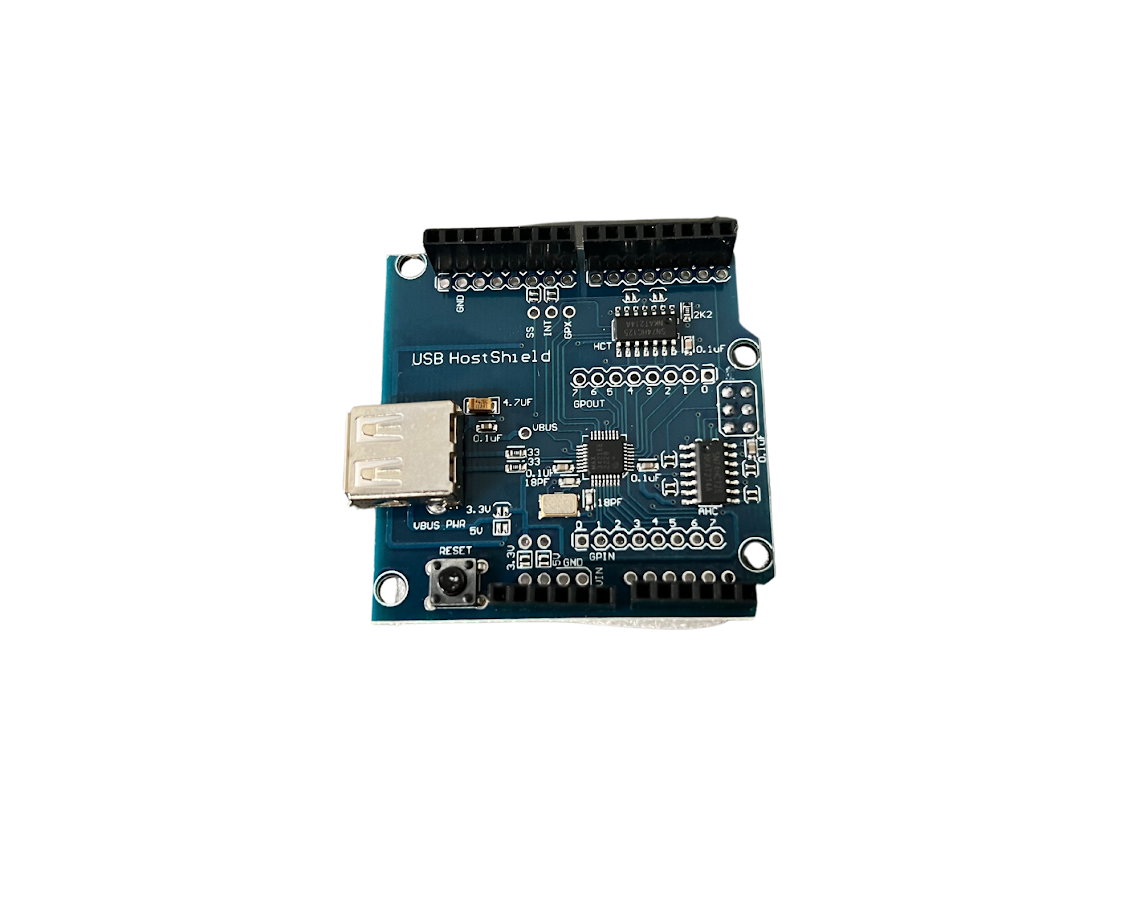

USB Host Shield for Arduino

This shield lets you communicate with other USB devices such as a barcode scanner and a keyboard.

This shield supports USB 2.0 full/low-speed operation.

You could use this shield with Arduino Boards that have the same form factor as the Arduino Uno, like Arduino Uno Wifi, Arduino Mega, Arduino Due, and other Arduino clones as well. The communication is through SPI.

We also have a compact version here.

QUICK LINKS:

The Arduino platform has long been celebrated for its versatility and ease of use, making it a favorite among hobbyists, educators, and professionals alike. One accessory that significantly expands its capabilities is the USB Host Shield. Designed specifically for Arduino boards, this shield opens up a world of possibilities by enabling USB connectivity, allowing users to interface with a variety of USB devices.

What is the USB Host Shield?

The USB Host Shield is a specialized board that connects directly to an Arduino, allowing it to act as a host for USB devices. Unlike standard USB connections that function in a client role, the USB Host Shield enables the Arduino to communicate with devices like keyboards, mice, printers, and even USB flash drives.

This functionality turns your Arduino into a powerful control center capable of interacting with an array of peripherals.

Key Features of USB Host Shield

  • Versatile Compatibility: The USB Host Shield is compatible with various USB devices, including game controllers, USB storage, and sensors. This versatility makes it ideal for projects requiring human interaction or data input.
  • Easy Integration: Designed to seamlessly stack on top of Arduino boards, the USB Host Shield is easy to set up. The shield’s pin layout aligns perfectly with the Arduino, making installation a breeze without complex wiring.
  • Rich Library Support: The shield comes with a comprehensive library that simplifies programming. The USB Host Shield library provides examples and functions for communicating with USB devices, significantly speeding up the development process.
  • Supports Multiple Protocols: The USB Host Shield can handle various protocols, including HID (Human Interface Devices) and mass storage. This means you can connect devices like USB keyboards and mice or read data from USB drives effortlessly.
  • Power Management: The shield is designed to manage power efficiently, ensuring that connected devices receive the necessary power without overloading the Arduino. This feature is crucial for maintaining stable operation in extended projects.

Applications of Shield

The potential applications of the USB Host Shield are virtually limitless:

  • Gaming Projects: Hobbyists can use the shield to connect USB game controllers to their Arduino, enabling the creation of custom gaming setups or interactive exhibits.
  • Data Logging: By connecting a USB flash drive, users can log sensor data in real-time, allowing for easy data storage and analysis. This is particularly useful in environmental monitoring or scientific experiments.
  • Interactive Displays: The USB Host Shield can be employed in interactive kiosks or exhibits, allowing users to input information via USB keyboards or mice, enhancing user engagement.
  • Robotics: In robotic applications, the shield can facilitate communication between an Arduino-controlled robot and various input devices, such as gamepads, enabling remote control or programming.

Getting Started

To begin using the USB Host Shield, all you need is an Arduino board and the shield itself. After stacking the shield on your Arduino, you can easily install the USB Host Shield library via the Arduino IDE. With example sketches available, you can quickly test your connections and start building your projects.

Conclusion

The USB Host Shield for Arduino is a transformative accessory that significantly enhances the functionality of Arduino projects. By enabling USB connectivity, it allows users to interface with a wide range of devices, fostering creativity and innovation.

Whether you’re a seasoned developer or just starting your journey with Arduino, the USB Host Shield is an essential addition to your toolkit. With it, the possibilities are endless—unlock new dimensions in your projects and take your creations to the next level!

USB Host Shield for Arduino

USB Host Shield for Arduino

49 in stock

Product Code

SKU:AC006

Regular price ₱ 455.00
Regular price Sale price ₱ 455.00
Sale Sold out
