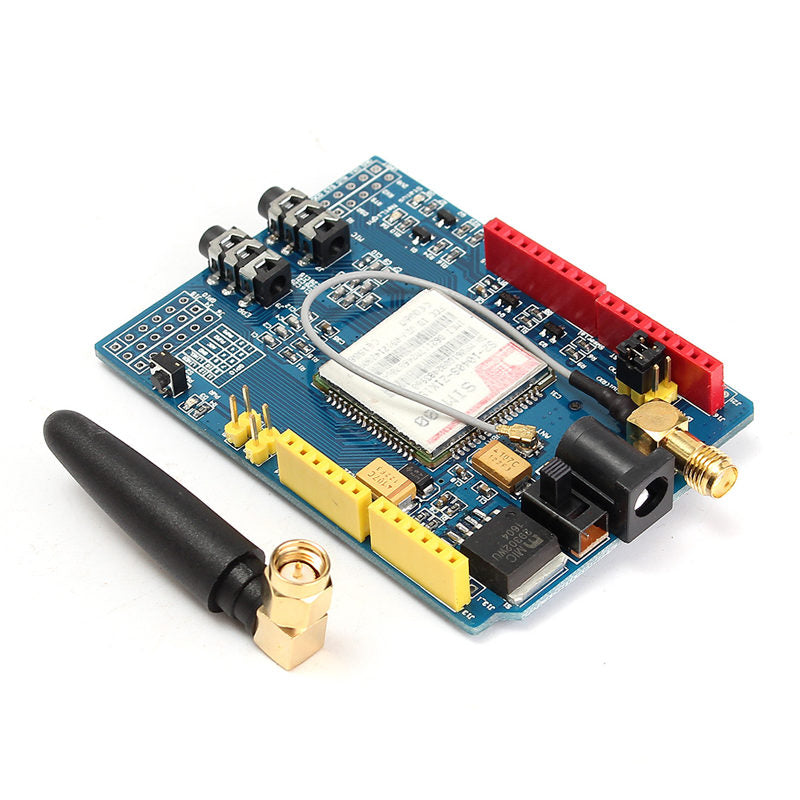

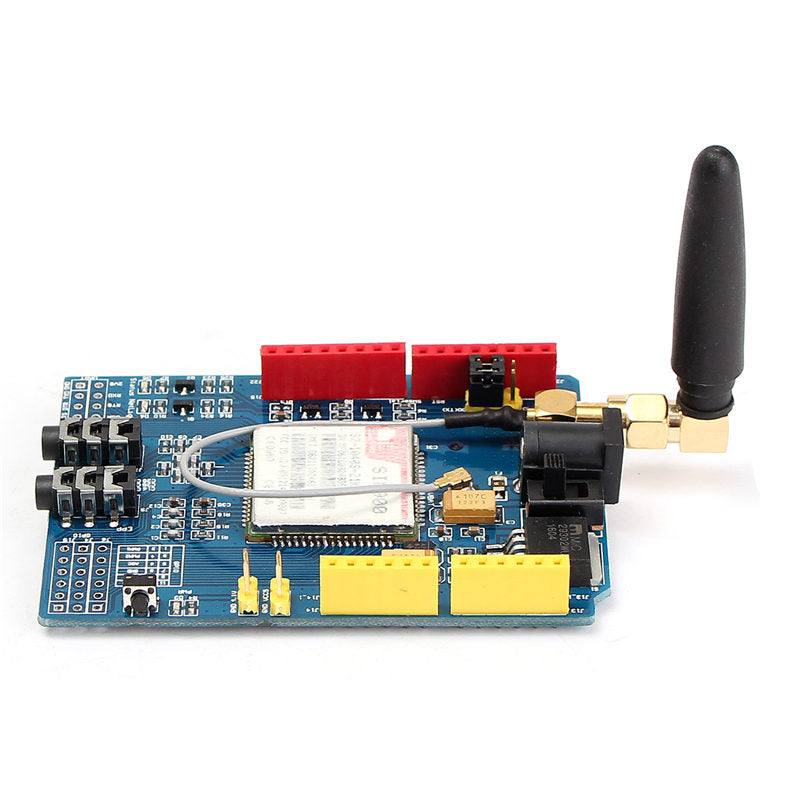

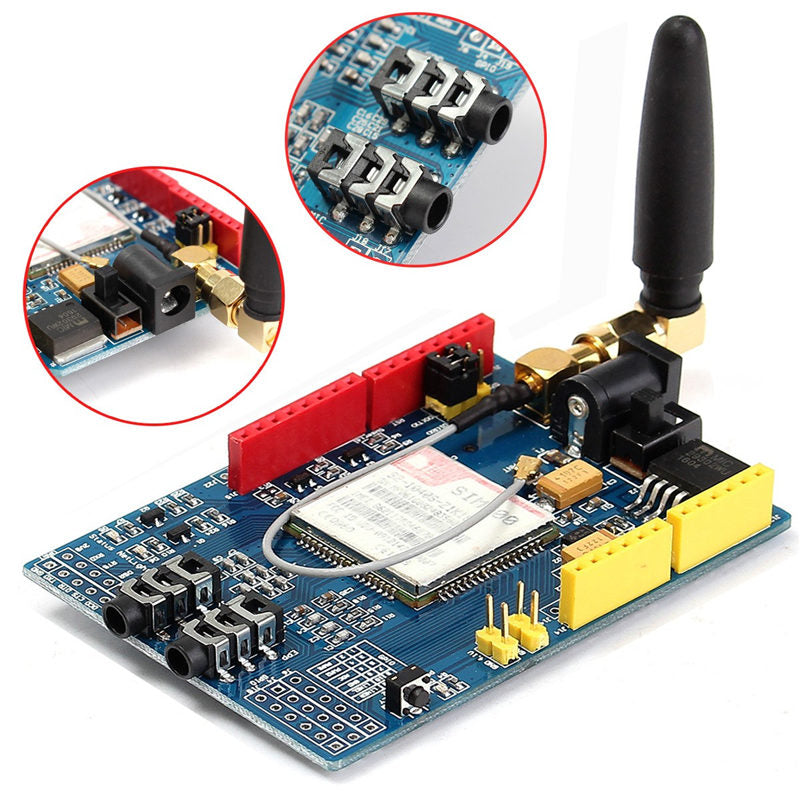

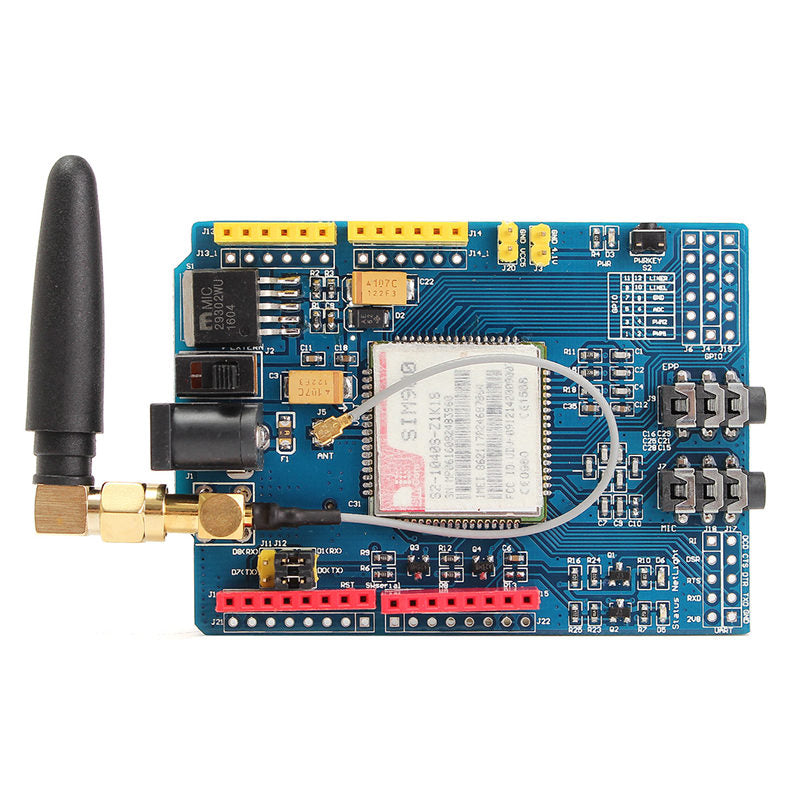

GPRS / GSM SIM900 for Arduino

Checking your system from afar would be a piece of cake by using this GSM SIM900 module. This module uses the sim900 chip that supports Quad-Band 850/900 1800/1900 MHz. It has a low power consumption at around 1.5mA in sleep mode and can be supplied with 3.1v to 4.8v power.

You can do what a regular cellphone could do, like sending/receiving an SMS, making/taking a call, connecting to GPRS(data) for internet usage. This module is also ideal if you want to create your DIY cellphone.

This module is a GPRS Class B meaning it could only do one service (GPS/GPRS) at a time. To elaborate, you could receive/make calls, or send/receive an SMS during a GPRS connection but the

GPRS service is suspended and resume once done with call/SMS.

QUICK SPECS:

Quad-Band 850/ 900/ 1800/ 1900 MHz
GPRS multi-slot class 10/8
GPRS mobile station class B
Compliant to GSM phase 2/2+
Class 4 (2 W @850/ 900 MHz)
Class 1 (1 W @ 1800/1900MHz)
Control via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands)
Low power consumption: 1.5mA(sleep mode)
Operation temperature: -40°C to +85 °C
2-in-1 headset jack

In an age where connectivity is key, the GPRS/GSM Shield for Arduino has emerged as an essential component for hobbyists, makers, and engineers alike. This versatile device allows you to add mobile communication capabilities to your Arduino projects, opening up a world of possibilities. Let’s delve into what makes this shield a must-have for your electronics toolkit.

What is the GPRS/GSM Shield?

The GPRS/GSM Shield is a device that connects to your Arduino board and enables it to communicate via GSM (Global System for Mobile Communications) networks. It utilizes GPRS (General Packet Radio Service) to send and receive data over the cellular network, allowing your projects to send SMS messages, make voice calls, and access the internet.

This shield is particularly useful in scenarios where Wi-Fi is not available or when you need remote communication capabilities. Whether you’re creating a weather station that sends updates via SMS or a security system that alerts you of intrusions, the GPRS/GSM Shield can help you achieve your goals.

Key Features of the Shield

Easy Integration: The shield is designed to fit directly onto standard Arduino boards, making installation straightforward. With just a few screws and connections, you can have your shield up and running in no time.
SMS and Voice Call Support: You can easily send and receive SMS messages or make voice calls through your Arduino. This feature is invaluable for applications such as alarm systems or notifications where immediate communication is crucial.
Internet Connectivity: The GPRS functionality allows your Arduino to access the internet, enabling projects like remote data logging and monitoring. You can send data to web servers or retrieve information from online sources.
Wide Compatibility: The shield is compatible with various Arduino boards, including Uno, Mega, and Leonardo, making it accessible to a broad audience of users.
Low Power Consumption: Designed to be energy efficient, the GPRS/GSM Shield is suitable for battery-powered projects, allowing for longer operational times without the need for frequent recharging.

Getting Started GPRS/GSM Shield

To start using the GPRS/GSM Shield, you will need an Arduino board, the shield itself, and a GSM SIM card (which you can get from your mobile service provider). The setup process is simple:

Attach the Shield: Align the pins on the shield with the corresponding holes on the Arduino and secure it in place.
Insert the SIM Card: Place your GSM SIM card into the designated slot on the shield.
Connect Power: Power up your Arduino, and you’re ready to start coding.
Install Libraries: Use libraries such as GSM.h that come with the Arduino IDE to simplify communication with the shield. These libraries provide functions to send SMS, make calls, and connect to the internet.

Project Ideas

The possibilities are nearly limitless with the GPRS/GSM Shield. Here are a few project ideas to spark your creativity:

Remote Weather Station: Collect weather data and send it via SMS to your phone.
Home Security System: Get real-time alerts via SMS when motion is detected.
IoT Applications: Send sensor data to cloud services for monitoring and analysis.

Conclusion

The GPRS/GSM Shield for Arduino is a powerful tool that empowers you to create connected projects easily. Its blend of versatility, ease of use, and robust features makes it an excellent addition to your electronics arsenal.

Whether you’re a seasoned developer or just starting, this shield can elevate your projects and help you stay connected in a rapidly advancing technological landscape. Start exploring today, and watch your ideas come to life!
