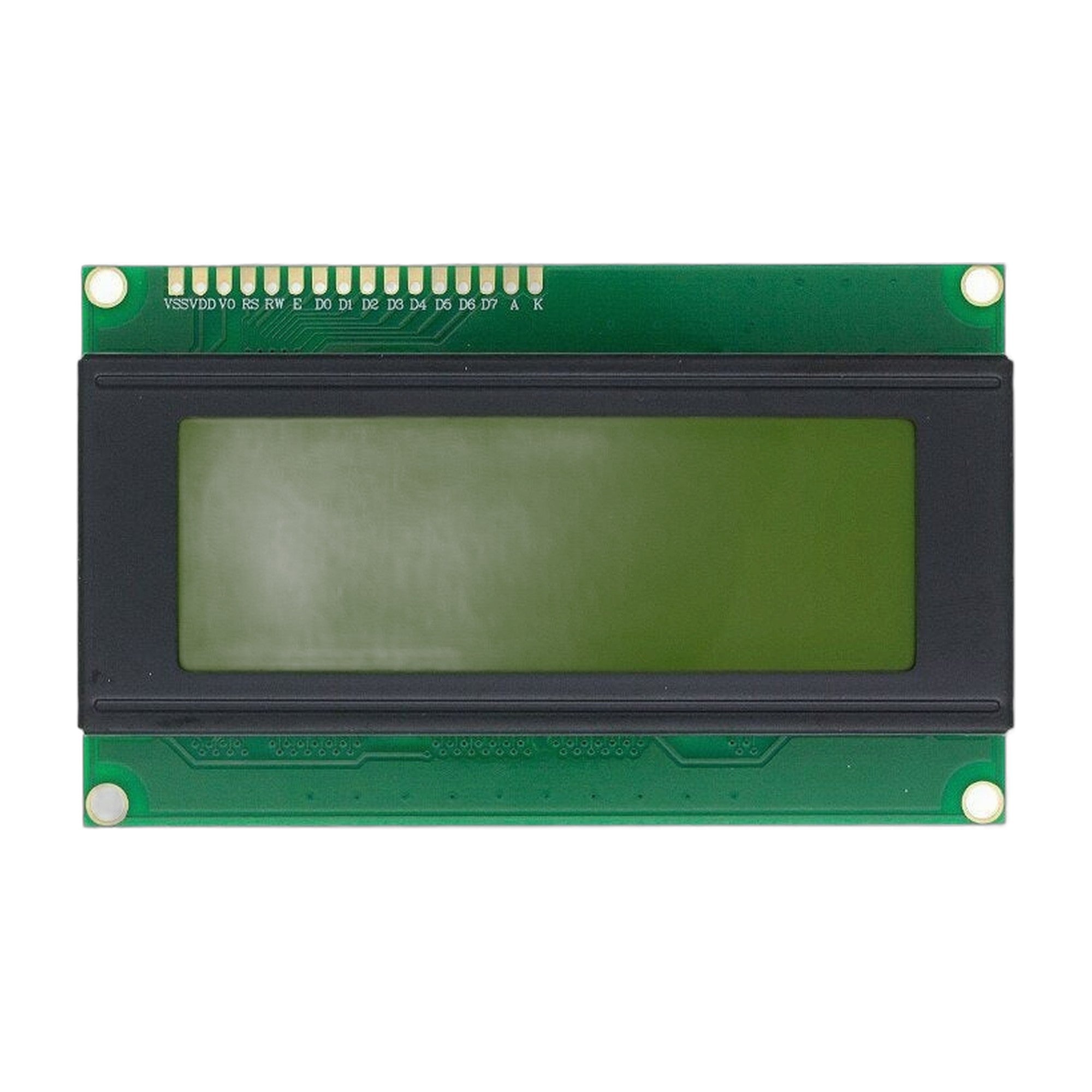

LCD Display Module I2C 20x4 Yellow Arduino

If your current LCD is frustrating you because it occupies all your GPIO pins and lacks characters' space, it is time to replace it with this one. This LCD Display Module uses an I2C communication interface, which only needs 2 wires to display information on any microcontroller-based project, including the Arduino. It is capable of displaying 4 lines of 20 white characters on a blue background. Moreover, it is compatible with either 3.3V or 5V logic systems, which is basically everything in programmable electronics.

Specifications:

• I2C Address: 0x20-0x27(0x20 default)
• Number of Characters: 20 characters x 4 Lines
• Blue LED backlight with white char color
• Adjustable contrast
• Supply voltage: 5V(via Pin)  3.3V(via IDC10)
• Interface: IIC/TWI x1,IDC10 x2
• View direction: Wide viewing angle
• Dot size: 0.55 x 0.55 mm(0.02x0.02")
• Dot pitch: 0.60 x 0.60 mm(0.023x0.023")
• Character size: 2.96 x 4.75 mm(0.11x0.19")
• Character pitch: 3.55 x 5.35 mm(0.14x0.21")
• Size: 98x60x24mm(3.86x2.36x0.94")
• Library: https://github.com/fdebrabander/Arduino-LiquidCrystal-I2C-library

In the world of electronics and microcontroller projects, displaying information in a user-friendly way is crucial. The 20x4 I2C LCD Display Module from Circuitrocks is a standout component that simplifies the process of integrating visual output into your Arduino projects. Here, we will explore the features, advantages, and practical applications of this versatile display module.

What is the 20x4 I2C LCD Display Module?

The 20x4 I2C LCD Display Module is a liquid crystal display (LCD) that can show up to 20 characters per line and has four lines. The "I2C" (Inter-Integrated Circuit) interface allows for easy communication between the LCD and your Arduino, reducing the number of pins needed for connection. This makes it an excellent choice for projects where space is at a premium or where multiple displays are used.

Key Features of LCD Display Module

• High Visibility: With a yellow-green backlight, the 20x4 LCD is easy to read in various lighting conditions. The characters are sharp and clear, making it suitable for both indoor and outdoor applications.
• I2C Interface: The I2C communication protocol allows you to connect multiple devices using just two wires (SDA and SCL). This reduces the complexity of your wiring and frees up valuable pins on your Arduino for other components.
• Ease of Use: The module is designed to be user-friendly, making it accessible even for beginners. With well-documented libraries available, getting started with this display is straightforward.
• Compact Design: The module's small footprint allows it to fit seamlessly into a variety of enclosures and project setups, making it a practical choice for compact designs.

Advantages of Using I2C LCD Display

Using the 20x4 I2C LCD offers several advantages over traditional LCDs:

• Fewer Connections: With only two data lines for multiple devices, the I2C interface minimizes clutter, making your projects neater and easier to troubleshoot.
• Simplified Code: Libraries like LiquidCrystal_I2C simplify coding for the display, allowing you to focus more on your project rather than the intricacies of handling the LCD.
• Expandable: The I2C protocol supports multiple devices on the same bus, allowing you to expand your project easily without overwhelming your Arduino’s pin capacity.

Applications of LCD Display Module

The 20x4 I2C LCD Display Module is suitable for a wide array of projects:

• Data Display: Whether you're building a weather station, monitoring sensor data, or creating a simple game, this LCD can effectively display real-time information.
• User Interfaces: Many DIY projects benefit from user interfaces that require displaying menu options or settings. The 20x4 display is perfect for navigation and user interaction.
• Status Indicators: Use the display to show the status of your projects, such as connection states, error messages, or operational data. This makes it easy to debug and monitor your device.

Conclusion

The 20x4 I2C LCD Display Module from Circuitrocks is a powerful tool that can elevate your Arduino projects. Its ease of use, high visibility, and compact design make it an excellent choice for a variety of applications. Whether you’re a beginner or an experienced developer, integrating this display into your projects can significantly enhance user interaction and data presentation. Embrace the versatility of the 20x4 I2C LCD and unlock new possibilities for your creative electronics endeavors!
