U Shape Jumper Wires

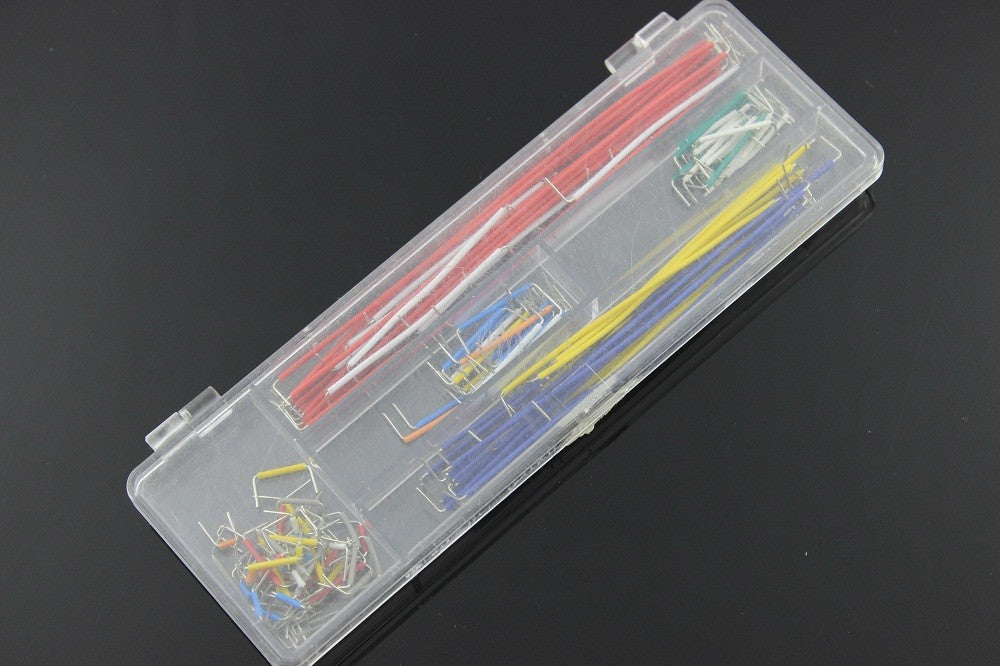

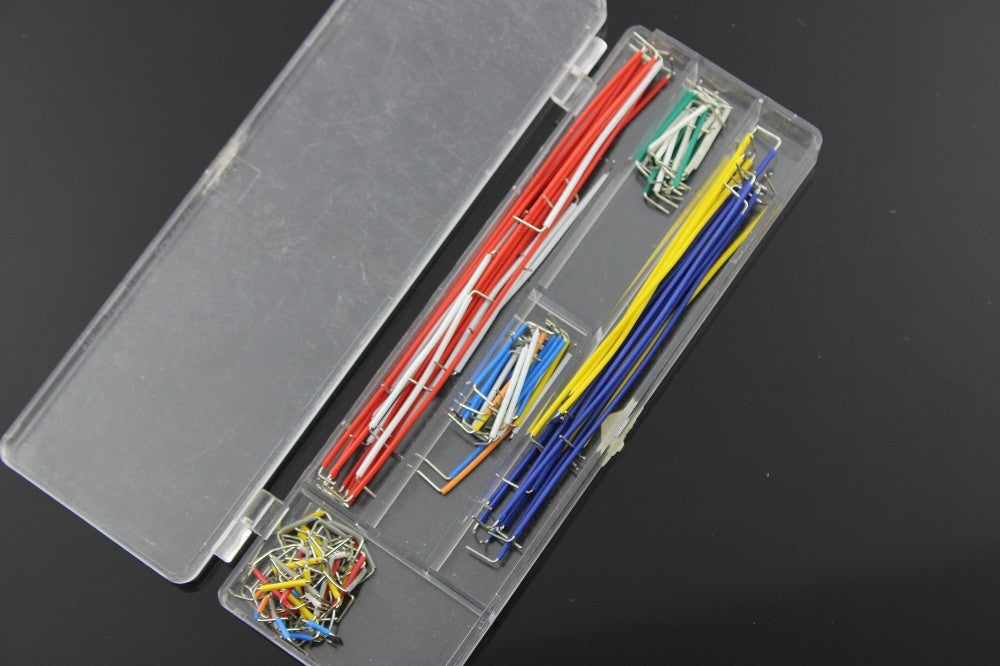

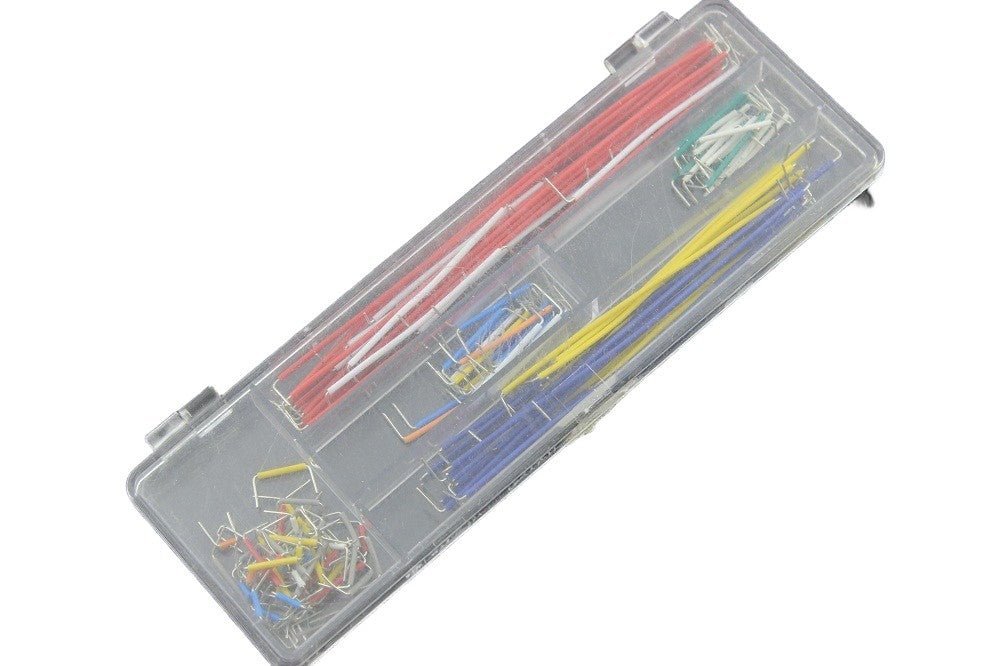

U Shape Jumper Wires - Tired of seeing messy wires in the breadboard? This U-Shaped jumper wire kit is perfect for you. The wires are cut, stripped, and bent 90 degrees on both ends for ease of use and prototyping convenience. It includes 14 various lengths of 22AWG wire - 2, 5, 7, 10, 12, 15, 17, 20, 22, 25, 50, 75, 100, and 125mm - 10 pieces each.

This product is perfect for projects involving microcontroller boards of similar form factors. You can leave the wires on the breadboard as is, replacing the next microcontroller to be programmed. This will not only ease the process but streamline the development as well.

Frequently Asked Questions About U Shape Jumper Wires

Q1: What exactly are U-shaped jumper wires?

A: U-jumper wires are electrical cables that are used to connect components on a breadboard or circuit board. They are normally constructed of thin, flexible wire with U-shaped connections at both ends and are available in a range of lengths and colors.

Q2: What is the wire gauge in U-shaped jumper wires?

A: The wire gauge of U shape jumper wires varies. However, it is normally between 24 and 26 AWG (American Wire Gauge), which is a standard size for jumper wires.

Q3: How long are the U-shaped jumper wires?

A: U shape jumper wires are available in several lengths, commonly ranging from 2 to 6 inches.

Q4: What material are the connections on the U-shaped jumper wires?

A: U shape jumper wire connections are often constructed of metal, such as brass or copper, with a gold or tin coating to promote conductivity and prevent corrosion.

Q5: Can these cables be reused?

A: These wires are often reusable and may be utilized for a variety of tasks.

Q6: How easy are these wires to bend and shape?

A: These wires are often highly flexible and simple to bend and shape as needed.

Q7: Can large currents be carried by these wires?

A: Because the wire gauge of U shape jumper wires is rather tiny, it is not suggested that these wires be used for high-current applications. It is important to consult the project requirements to identify the proper wire gauge and current capacity.

Q8: Can I use U-shaped jumper wires for prototype and hobby projects?

A: Indeed, because of their flexibility, ease of usage, and compatibility with breadboards and circuit boards, U shape jumper wires are often used in prototype and hobby projects.

Q9: Can U-shaped jumper wires replace straight jumper wires?

A: It is determined by the unique application and the breadboard or circuit board layout. U shape jumper wires may be more handy or flexible than straight jumper wires in some instances. Nonetheless, it is critical to ensure that the U-shaped connections are properly fastened and that they create excellent electrical contact with the components.

Specifications:

  • #22 AWG solid
  • tinned copper
  • PVC insulated
  • stripped 1/4"
  • 90 degree on both ends
  • 14 different lengths and 140 units.
Library: None

Inclusions: 140 x U Shape Jumper Wires

Documents: None
