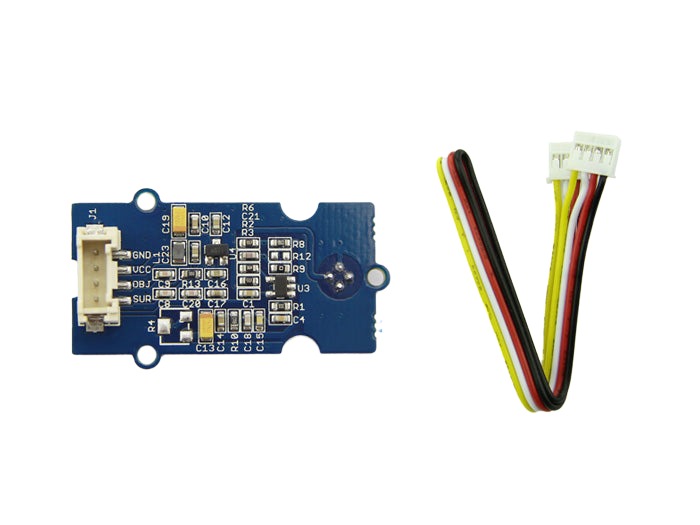

Temperature Infrared Sensor Grove

This Grove-Infrared temperature sensor is a non-contact temperature measure model.The sensor is composed of 116 elements of thermocouple in series on a floating micro-membrane having an active diameter of 545μm and with blacken surface to absorb the incident thermal infrared radiation, which induces a voltage response at output terminals.

FEATURES

• Grove compatible interface

• ŸWide supply voltage range: 3V~5V

• ŸZero drift amplify current

• ŸPower consumption: less than 0.6mW

• ŸTemperature measure range: -10~100°C

• ŸMeasure accuracy: ±2°C

• ŸNominal measure distance: 9CM

• 2.0cm x 4.0cm Grove module


Application Ideas

• ŸMotion sensor

• ŸThief-guarding System

• ŸSwitch

• ŸIndustrial automation

• ŸBody distance check
