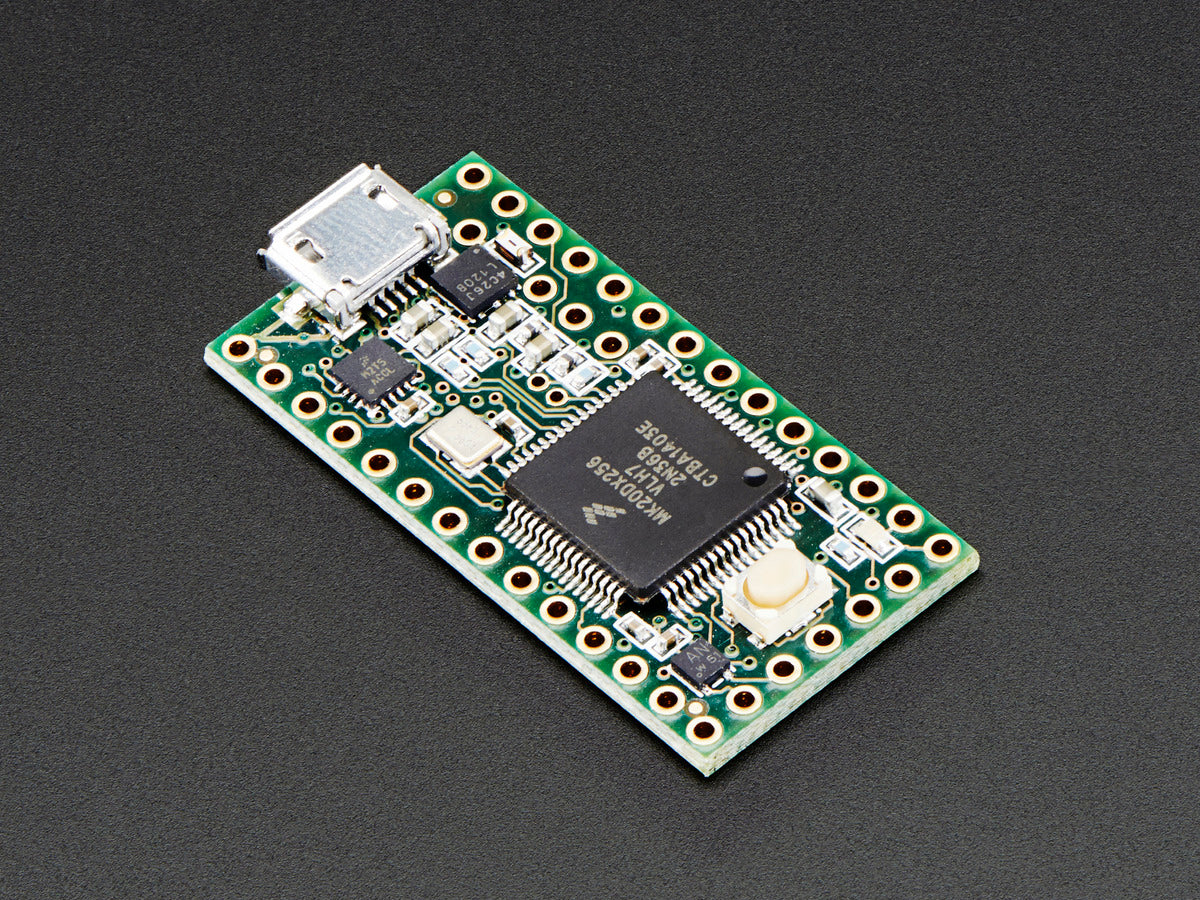

Popular 32-bit Teensy Board for Fast Prototypes and Compact Embedded Builds
The Teensy 3.2 is a compact 32-bit development board that gives you much more speed and memory than classic AVR boards while staying easy to prototype on a breadboard. It is a favorite for control systems, synth projects, sensors, displays, and smart embedded builds.
It uses a 72 MHz ARM Cortex-M4, supports native USB, and works with the Teensy boards add-on for Arduino IDE. That makes it a practical step up when you want more power than an Arduino-class AVR board without moving to a much larger board.
Important: Teensy 3.2 is often chosen when you want a compact 32-bit board with strong library support and 5V-tolerant digital input pins.
Why you'll love it
- Fast 32-bit core: Better for real-time control and signal work than older 8-bit boards
- Native USB support: Useful for serial, MIDI, HID, and custom USB devices
- Breadboard-friendly footprint: Easy to test with sensors and modules
- Good peripheral mix: Includes serial, SPI, I2C, CAN, analog, PWM, and audio features
- Solid upgrade path: A good middle ground before moving to Teensy 4.x
Comparison table
| Product | Best for | Core / Speed | Main edge |
|---|---|---|---|
| Teensy LC 32-bit Microcontroller | Budget 32-bit builds and student projects | 32-bit Cortex-M0+ / 48 MHz | Low-cost 32-bit upgrade, compact and capable |
| Teensy 3.2 | Balanced embedded, MIDI, display, sensor builds | 32-bit Cortex-M4 / 72 MHz | Well-balanced speed, 5V-tolerant digital inputs |
| Teensy 3.5 without headers | More I/O with easier 5V digital interfacing | 32-bit Cortex-M4 / 120 MHz | More I/O and 5V-tolerant digital inputs |
| Teensy 4.0 | Fast DSP, displays, robotics, compact high-speed work | 32-bit Cortex-M7 / 600 MHz | Very high speed in a tiny footprint |
What you can build
Use it for MIDI gear, data loggers, compact robotics, display projects, CAN bus experiments, audio playback setups, and sensor-heavy builds that need more speed than an 8-bit board.
Starter bundles
Good pairings include an OLED or TFT display, IMU or environmental sensors, and the Audio Adapter Board for Teensy 3.x if you want sound input and output.
Recommended add-ons
Recommended add-ons include header pins, real-time clock parts, small displays, CAN transceivers, and audio parts if you are building synth, DSP, or playback projects.
Technical specifications
| Product | Teensy 3.2 |
|---|---|
| Main MCU | ARM Cortex-M4 |
| Clock Speed | 72 MHz |
| Memory | 256 KB Flash, 64 KB RAM, 2 KB EEPROM |
| USB | USB device, 12 Mbit/sec |
| I/O Pins | 34 digital I/O, 12 PWM |
| Analog | 21 analog inputs, 1 analog output, 12 touch inputs |
| Communication | 3 Serial, 1 SPI, 2 I2C, 1 CAN |
| Audio | 1 I2S/TDM digital audio port |
| Logic Notes | Digital pins accept 0 to 5V signals |
Pinout & power notes
Teensy 3.2 runs at 3.3V logic, but its digital input pins are 5V tolerant. That makes it easier to interface with many common modules while keeping a fast 32-bit core in a very small board.
Official resources
Official technical specs · Pinout reference · Schematic reference · Teensyduino setup
What’s in the box
1 × Teensy 3.2 board
Frequently Asked Questions
Is Teensy 3.2 good for audio projects? Yes. It supports the PJRC audio library and works well with the Teensy audio adapter board.
Can I use 5V signals with it? Its digital input pins are 5V tolerant, but the board still runs on 3.3V logic.
Does it work with Arduino IDE? Yes. Install the Teensy boards add-on and program it through Arduino IDE.
What is the next step up from this board? Teensy 3.5, 3.6, 4.0, or 4.1 depending on how much speed and I/O you need.
