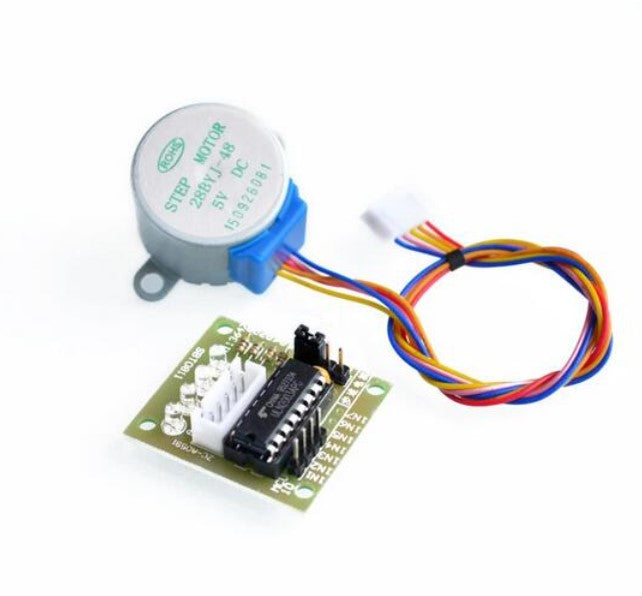

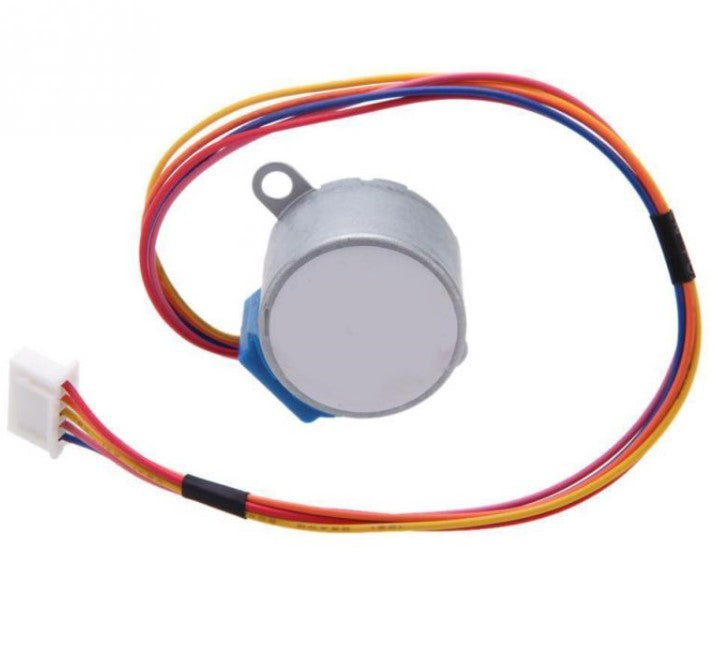

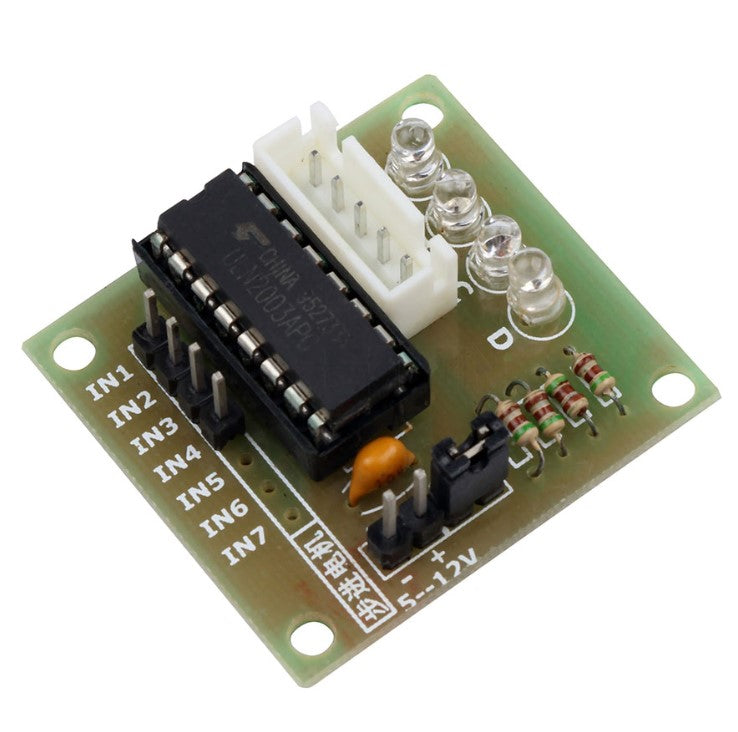

Stepper Motor 5V 28BYJ-48 with ULN2003 Driver Board


A special combination of stepper motor and the its driver. The stepper motor easily fits into the JST connection of the driver.

FEATURES:

  • The rotation angle of the motor is proportional to the input pulse.
  • The motor has full torque at standstill(if the windings are energized)
  • Precise positioning and repeatability of movement since good stepper motors have an accuracy of – 5%of a step and this error is non cumulative from one step to the next.
  • Excellent response to starting/stopping/reversing.Very reliable since there are no contact brushes in the motor. Therefore the life of the motor is simply dependent on the life of the bearing.
  • The motors response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
  • It is possible to achieve very low speed synchronous rotation with a load that is directly coupled to the shaft.
  • A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.

QUICK SPECS:

  • Model: 28BYJ-48
  • Rated voltage: 5VDC
  • Number of Phase: 4
  • Speed Variation Ratio: 1/64
  • Stepper Motor 5V 4-Phase 5-Wire & ULN2003 Driver Board for... http://www.geeetech.com/wiki/index.php/Stepper_Motor_5V_4-...
  • 2 of 7 11/18/16, 1:13 PM
  • Stride Angle: 5.625° /64
  • Frequency: 100Hz
  • DC resistance: 50Ω±7%(25℃)
  • Idle In-traction Frequency : > 600Hz
  • Idle Out-traction Frequency : > 1000Hz
  • In-traction Torque >34.3mN.m(120Hz)
  • Self-positioning Torque >34.3mN.m
  • Friction torque: 600-1200 gf.cm
  • Pull in torque: 300 gf.cm
  • Insulated resistance >10MΩ(500V)
  • Insulated electricity power :600VAC/1mA/1s
  • Insulation grade :A
  • Rise in Temperature <40K(120Hz)
  • Noise <35dB(120Hz,No load,10cm)
QUICK LINKS:

Stepper Motor 5V 28BYJ-48 with ULN2003 Driver Board

Stepper Motor 5V 28BYJ-48 with ULN2003 Driver Board

Out of stock

Product Code

SKU:AJ190

Regular price ₱ 57.00
Regular price Sale price ₱ 57.00
Sale Sold out
View full details
