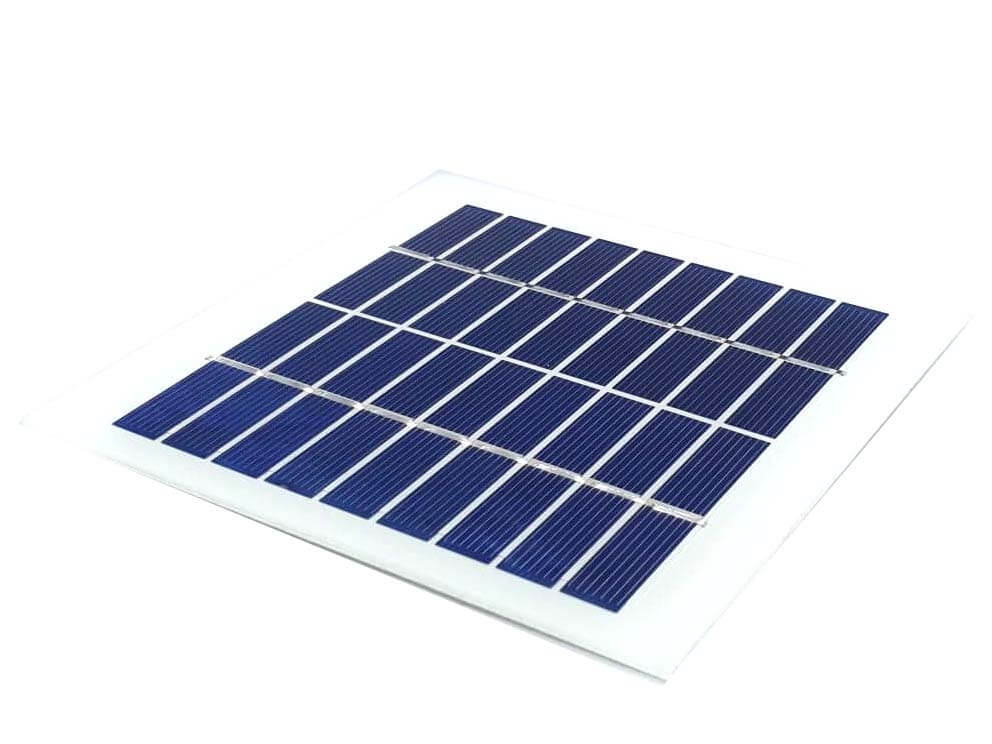

This Solar Panel 9V 220mA provides you a practical way on having a renewable energy to power up your projects. It has a ultra-white glass lamination and waterproof surface, so smooth similar to ceramic tile. The back of the panel has a exposed aluminum wire for easy connection. You can also recharge a 12V battery by connecting it in series. The core material is Polycrystalline Si-based.
All data was gathered from the following test cases of spectrum AM 1.5, light intensity of 1000W/㎡, and cell temperature of 25 ℃.
QUICK SPECS:
- Working voltage: 9V
- Operating Current: 220mA
- Open Circuit Voltage: 9.6V
- Short Circuit Current: 500mA
- Power: 2W
- Use of the environment: -40 ℃ ~ 80 ℃
- Material: Polycrystalline Si-based
- Dimensions L x W x H: 135mm x 125mm x 2.5mm
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
