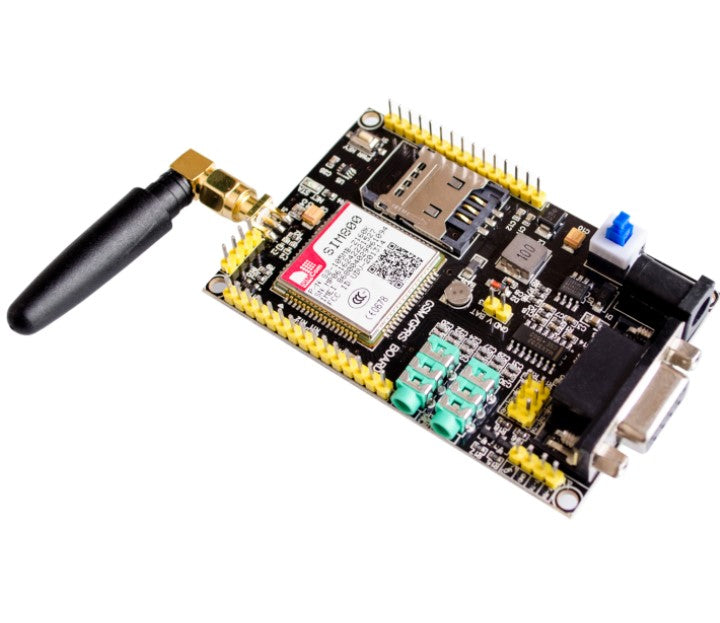

This SIM800 Module from Elecrow is a quad-band GSM/GPRS module that supports GSM frequencies 850MHz, EGSM 900MHz, DCS 1800MHz, and PCS 1900MHz. It has a GPRS multi-slot class 12 and class 10 (optional) and also supports GPRS coding schemes CS-1, CS-2, CS-3, and CS-4. It supports 4G and is backward compatible with older cards. It is the perfect module for practicing GSM telemetry with GPRS connectivity.

Features:

• DC6-24v wide voltage power supply, can also conveniently used in conjunction with your system power. Board high performance DC-DC power supply circuit, plus TVS protection, the system is greatly enhanced stability.
• Support 3.3V / 5V TTL level control, convenience and variety of commonly used microcontrollers, such ARDUINO / 51 / STM32 and other communications Modules listed separately TX / RX / GND, and easy to use.
• With a standard serial interface, easy to use PC control or debugging.
• With headphone and microphone interface, easy to test GSM voice calls .
• SIM card with a chip static protection, static electricity generated when the SIM card plug for protection .
• All pins are available SIM800 go out, so you can develop applications for a variety of SIM800.
• RTC with battery backup.
• With NET_STA indicator for easy viewing of the current status of SIM800

Specifications:

• TGPRS class 12: max. 85.6 kbps (downlink/uplink)

• PBCCH support

• Coding schemes CS 1, 2, 3, 4

• PPP-stack

• CSD up to 14.4 kbps

• USSD

• Non transparent mode

• Specifications for SMS via GSM/GPRS

• Point to point MO and MT

• SMS cell broadcast

• Text and PDU mode

Library: You can use the item without a library using serial communication or get pre-written libraries such as TinyGSM.

Inclusions:

• SIM800 GSM/GPRS Module x 1
