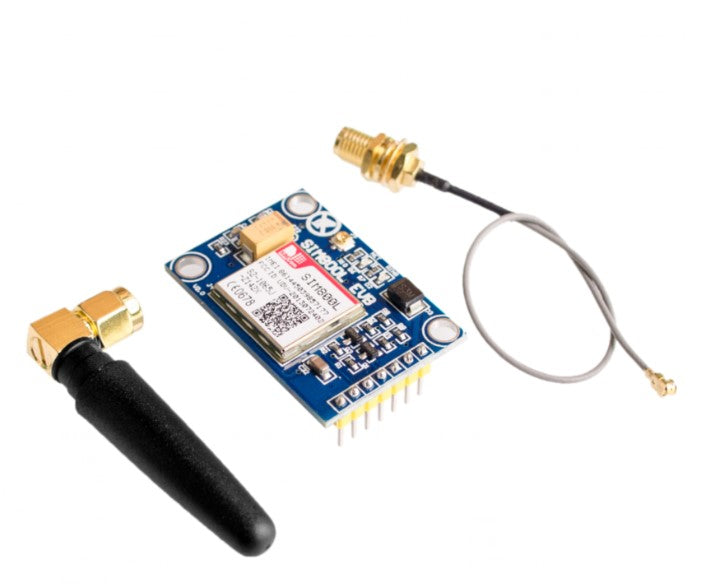

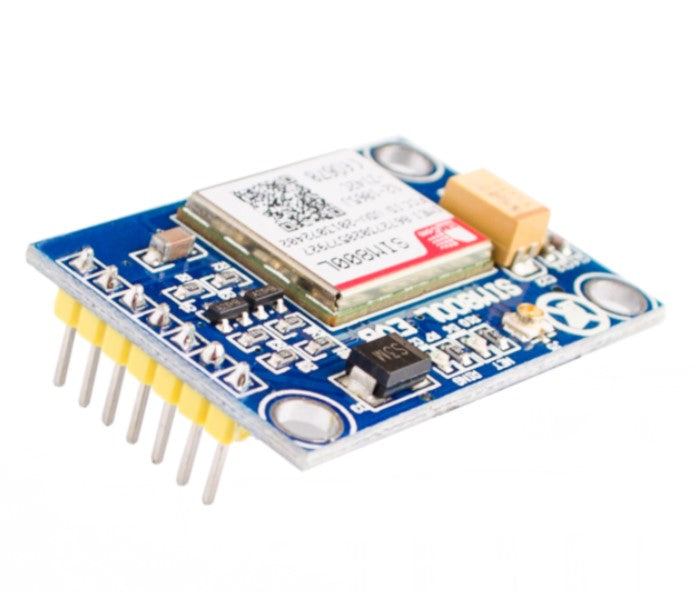

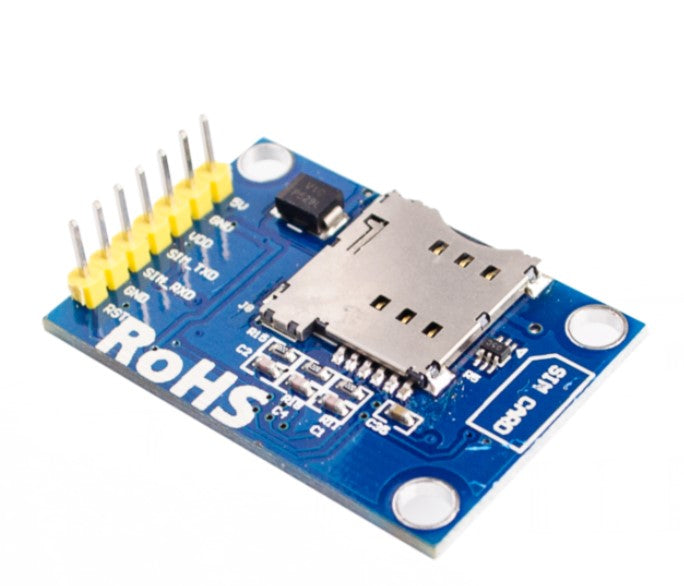

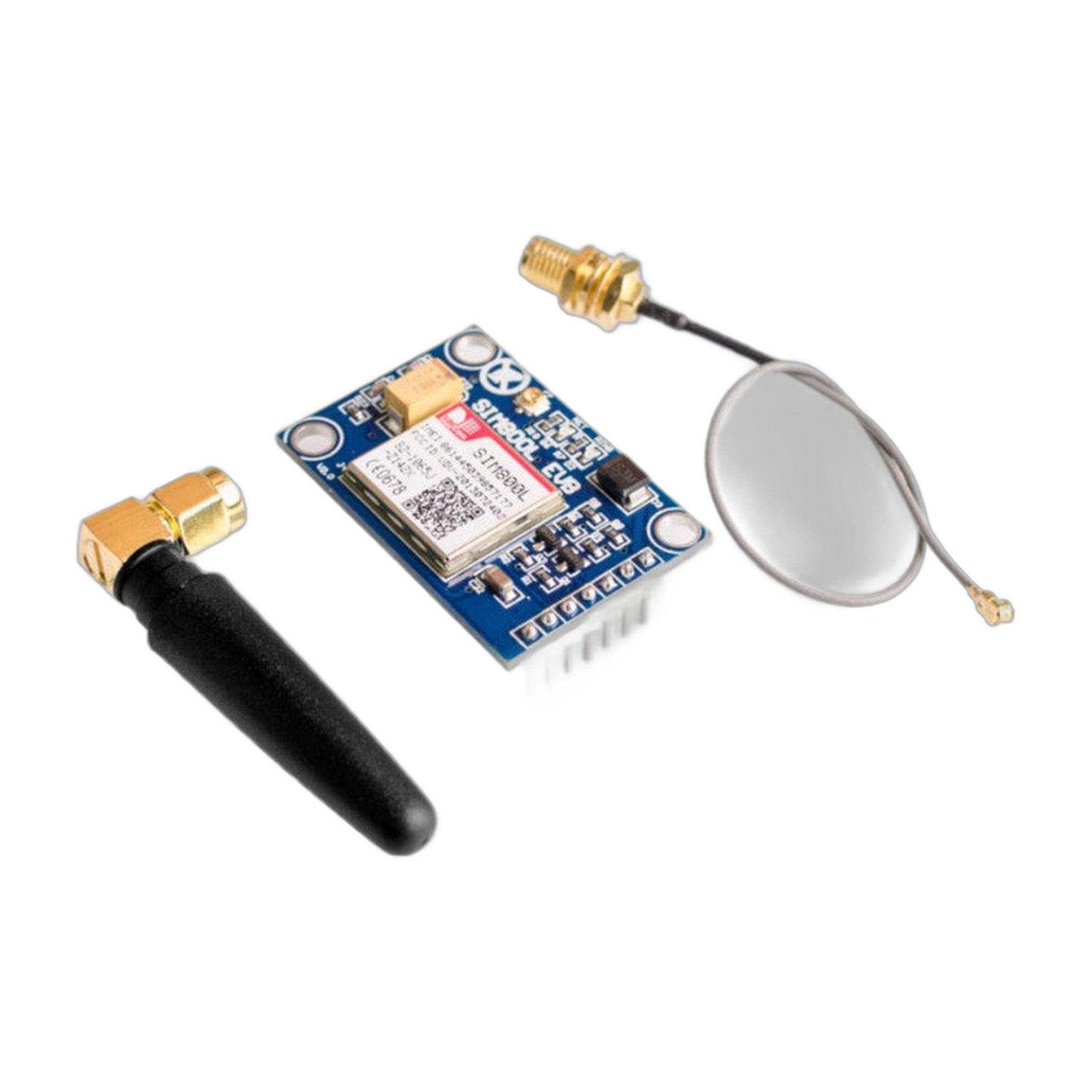

The SIM800L module is a complete Quad-band GSM/GPRS solution in a LGA type which can be embedded in the customer,it has a set of TTL level serial interface, a set of power supply interface. Besides, there are a set of antenna interface on this module.

FEATURES:

• Supply voltage range 3.4 ~ 4.4V and

• Current of 1A or more(the current is very important)

• It features Bluetooth, FM and Embedded AT(AT commands)

• Quad-band 850/900/1800/1900MHz

• Operation temperature:-40 ~85 degree celcius


APPLICATIONS:

• SIM800L support Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power

• Due to its size,It can fit into slim and compact demands of customer design.


In the realm of Internet of Things (IoT) projects, reliable connectivity is paramount. Enter the GSM/GPRS Module SIM800L V2, a powerful tool for engineers, hobbyists, and innovators looking to integrate cellular communication into their projects. With its compact design and robust features, this module has gained popularity for various applications, from remote monitoring to mobile communication.

What is the SIM800L V2?

The SIM800L V2 is a quad-band GSM/GPRS module that operates on frequencies 850/900/1800/1900 MHz. This versatility allows it to function globally, making it ideal for projects that require mobile connectivity across different regions. The module is designed to support SMS, voice calls, and data transmission, enabling a wide range of communication options.

Key Features of SIM800L V2

• Compact Size: One of the standout features of the SIM800L V2 is its small footprint, making it easy to integrate into space-constrained projects.
• Low Power Consumption: Despite its capabilities, the module is energy-efficient, which is essential for battery-powered applications. It operates on a voltage range of 3.4V to 4.4V, making it suitable for a variety of power supplies.
• Built-in Antenna: The module comes equipped with a PCB antenna, simplifying the setup process. However, users have the option to connect an external antenna for improved signal strength, especially in areas with poor coverage.
• Serial Communication: The SIM800L V2 uses UART for communication, making it compatible with a wide range of microcontrollers, including Arduino and Raspberry Pi.
• GPRS Data Transfer: With GPRS capabilities, the module can handle data transfer, allowing for the implementation of real-time applications like GPS tracking, remote sensor monitoring, and cloud data logging.

Applications of SIM800L V2

The versatility of the SIM800L V2 opens the door to countless applications. Here are a few popular use cases:

• Remote Monitoring Systems: Whether it’s monitoring environmental conditions or tracking the location of assets, the SIM800L V2 allows data to be sent to a central server or cloud platform in real-time.
• Home Automation: Integrating the module into home automation systems enables remote control of devices via SMS or internet protocols.
• Vehicle Tracking: By combining the SIM800L V2 with GPS modules, users can create effective vehicle tracking systems, providing real-time location updates.
• Health Monitoring: In the healthcare sector, this module can be used to transmit patient data to healthcare providers, ensuring timely interventions.

Getting Started

Using the SIM800L V2 in your project is relatively straightforward. Here’s a brief guide to get you started:

• Connect the Module: Use a microcontroller like Arduino for initial tests. Connect the TX and RX pins appropriately and power the module within the specified voltage range.
• Install Libraries: For Arduino users, libraries like TinyGSM or Adafruit FONA can simplify communication with the module.
• Write Your Code: Start with simple commands to send SMS or make calls, gradually progressing to more complex tasks like sending data over GPRS.
• Testing: Ensure your SIM card is activated and has sufficient balance for data and SMS usage. Test various functionalities to ensure everything works smoothly.

Conclusion

The SIM800L V2 is a game-changer for anyone looking to add GSM/GPRS capabilities to their projects. Its combination of compact size, power efficiency, and robust features makes it a versatile choice for a wide range of applications.

As IoT continues to expand, modules like the SIM800L V2 will undoubtedly play a crucial role in shaping the future of connected devices. Whether you’re a seasoned developer or a curious beginner, the possibilities with this module are endless. So, why not dive in and explore what you can create?
