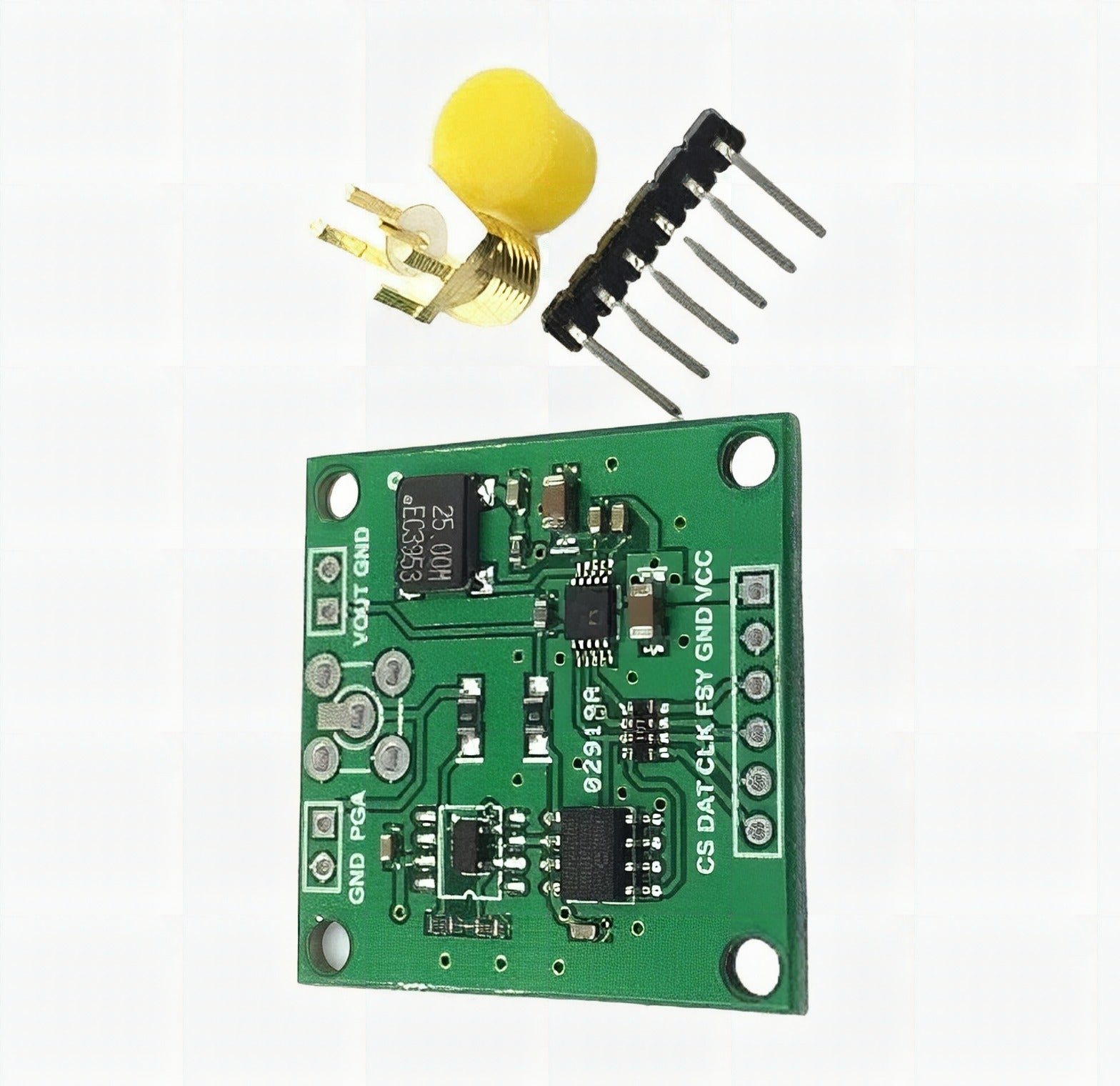

Signal Generator AD9833 Module 0-12.5MHz Square / Triangle / Sine Wave

The AD9833 is a programmable waveform generator capable of creating sine, triangular, or square wave outputs in a frequency range of 0 to 12.5 MHz. It has two 28-bit frequency registers and two 12-bit phase registers whose values can be used to calculate the frequency and phase of an output waveform. This chip is perfectly suited for use with the PIC 18F4520, as it uses SPI communication for its setup and control. A connection diagram for the AD9833 is given to the right. The MCLK pin is tied directly to the oscillator of the PIC, and the three SPI communication lines are connected to three I/O pins on the PIC (in this case pins A1, A2, and A3).
