Servo Motor Iron Gear

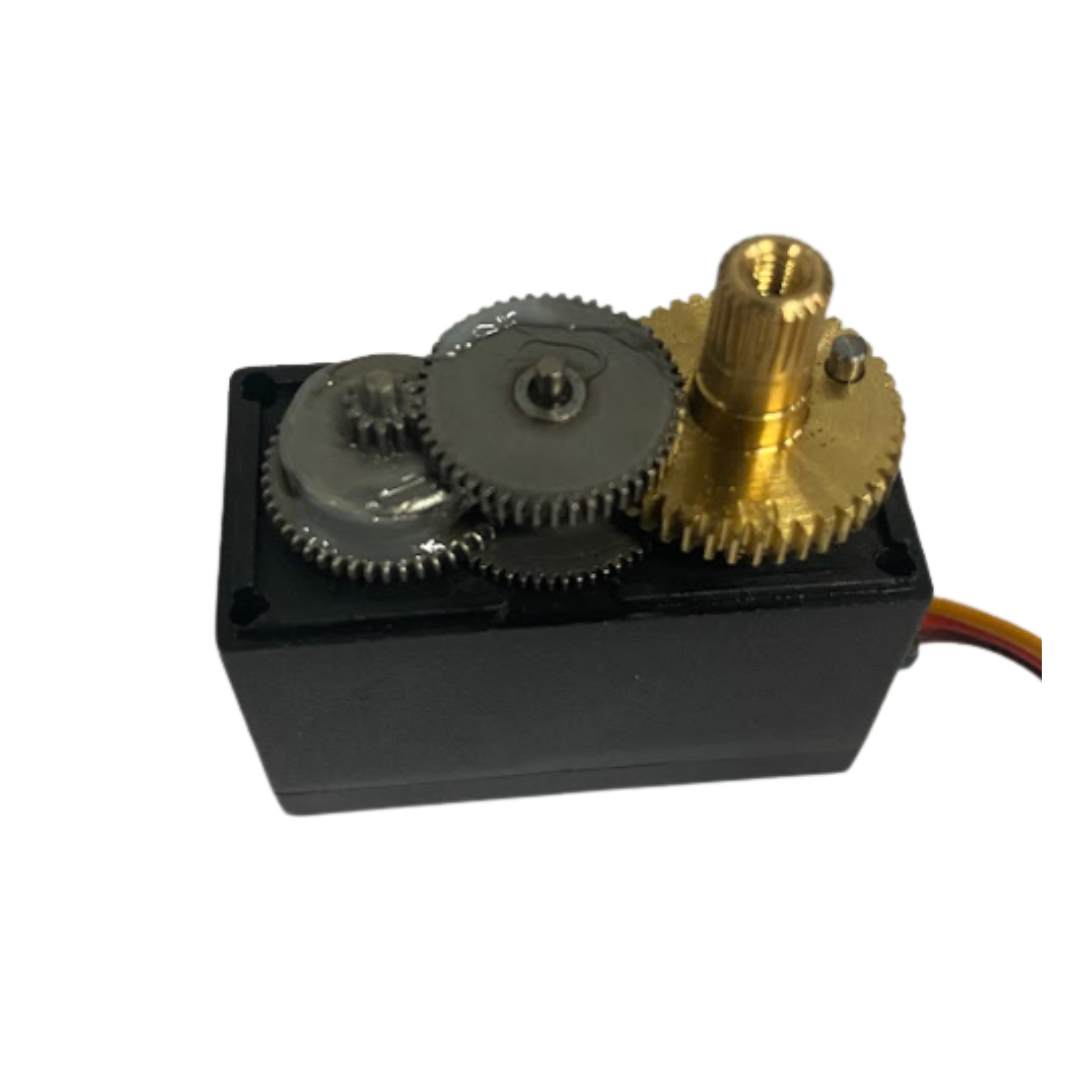

The Servo Motor Iron Gear is a high-strength, reliable servo motor designed for applications requiring robust torque and durability. Unlike standard plastic or copper gear servos, this model uses iron gears for enhanced strength, making it suitable for demanding tasks where high mechanical stress is common. The iron gear construction provides increased torque capacity and impact resistance, ensuring long-lasting performance even in harsh conditions. This servo motor is ideal for robotics, RC vehicles, automation systems, and other projects where precision and power are essential.

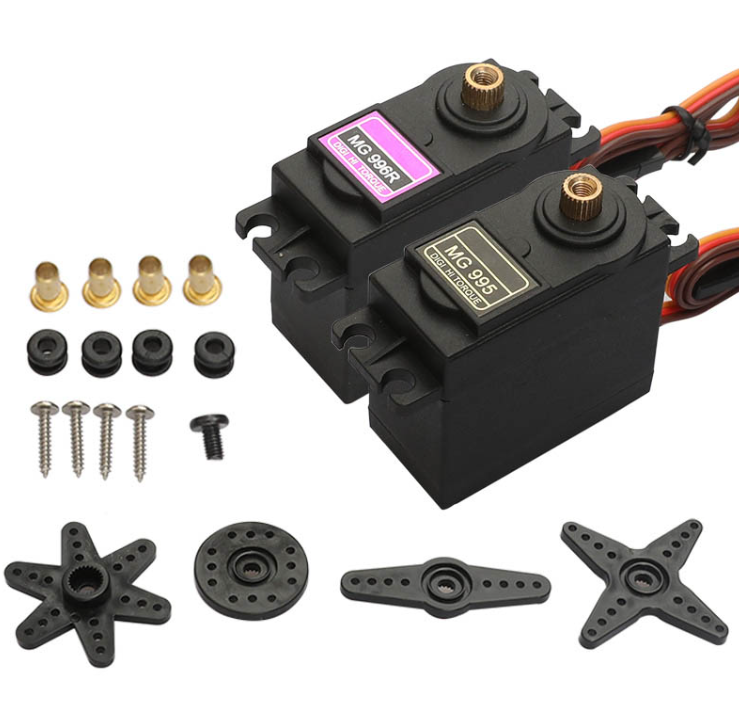

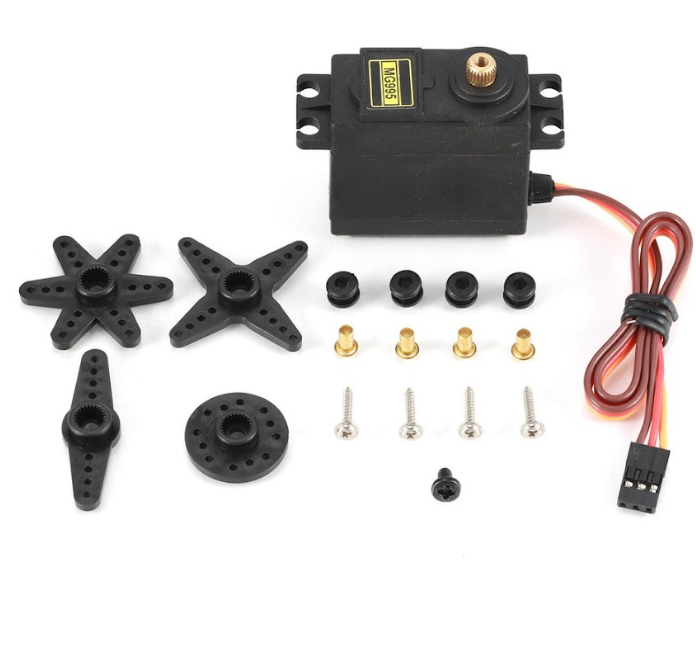

MG995：
Dimension : 40mm x 19mm x 43mm
Color: Black
Operating Speed : 0.17sec / 60 degrees (4.8V no load)
Operating Speed : 0.13sec / 60 degrees (6.0V no load)
Stall Torque : 13 kg-cm (180.5 oz-in) at 4.8V
Stall Torque : 15 kg-cm (208.3 oz-in) at 6V
Operation Voltage : 4.8 - 7.2Volts
Gear Type: All Metal Gears
Connector Wire: Heavy Duty, 300mm

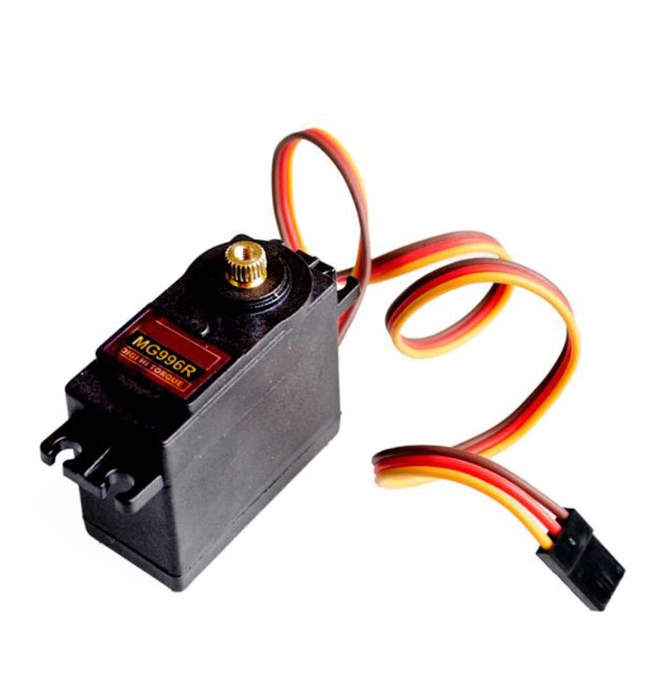

MG996R:
Stall torque:12kg/cm(6V)
Power Supply: Through External Adapter
Operation Voltage : 4.8 - 7.2 V
Temperature range: 0'C to 55‘C
Operating Speed: 0.17sec / 60 degrees (4.8V no load)
Operating Speed: 0.13sec / 60 degrees (6.0V no load)
Connector Wire:Length 300mm
Package Dimension: 54 x 38 x 20 mm

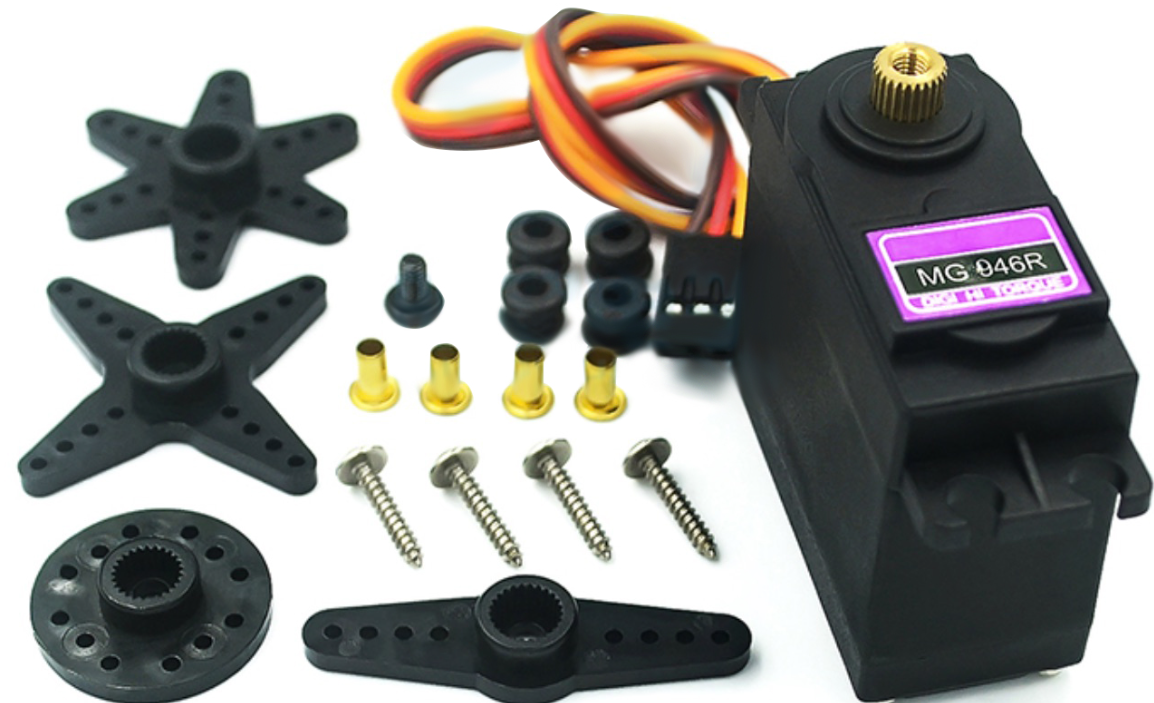

MG946R：
Product Dimensions: 40.7 * 19.7 * 42.9mm
Products Torque: 10.5-13kg (4.8-6.0v)
Product Speed: 0.17-0.14s (4.8-6.0v)
Operating temperature: 0 ° C-55 ° C
Deadband setting: 5 sec

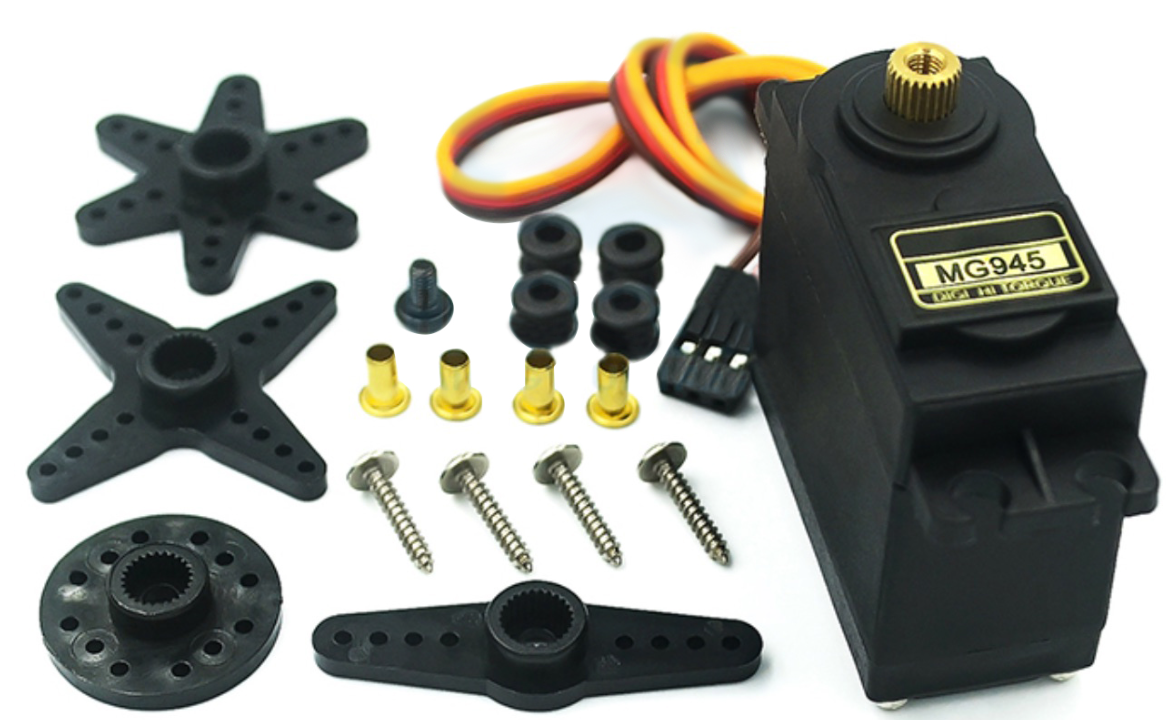

MG945:
Working Torque: 10.5 kg/cm (4.8V), 13.0 kg/cm (6.0V)
Reaction Speed: 0.2 Seconds/60 Degrees (4.8V), 0.17 Seconds/60 Degrees (6.0V)
Operating Temperature: 0-55℃
The Deadband Setting: 4 Microseconds
Operating Voltage: 4.8V-7.2V
Features: High Speed, Stable, Shock Proof
Size: 43mm x 40.7mm x 19.7mm
Line Length: 30cm
