Servo Motor All Copper Gear

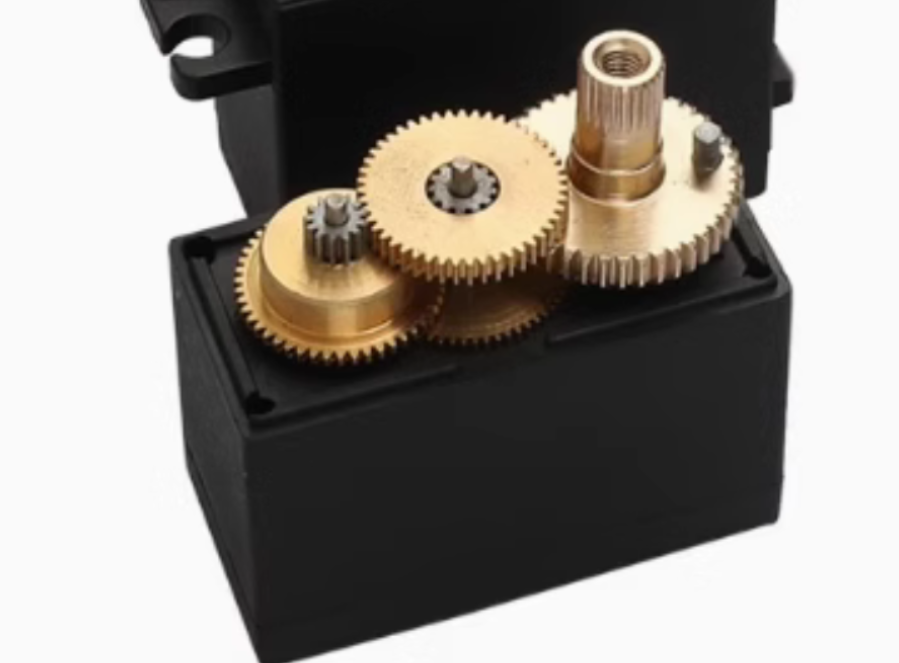

The Servo Motor All Copper Gear is a high-performance servo designed for precision control in robotics, RC models, and automation systems. It features an all-copper gear system that provides superior strength, durability, and heat resistance compared to plastic or mixed-metal gears. This design ensures longer life and consistent torque output, making it ideal for demanding applications where reliability is critical. The motor is optimized for smooth, accurate movement, with high torque and fast response times, making it a popular choice for engineers and hobbyists alike.

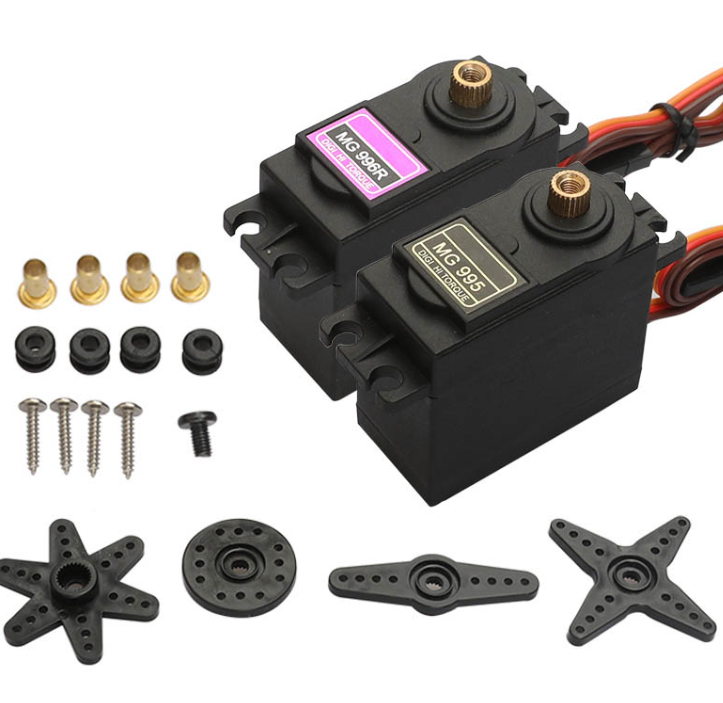

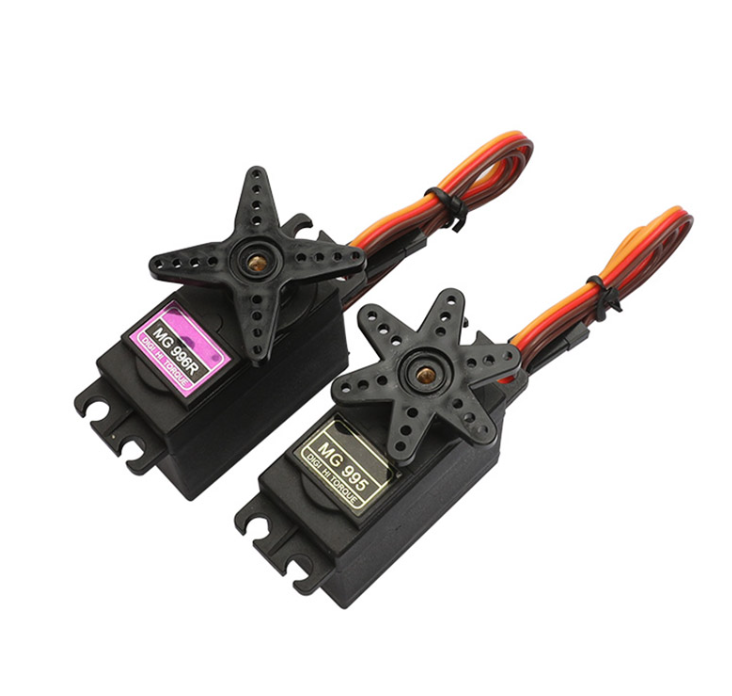

MG995:
Dimension : 40mm x 19mm x 43mm
Color: Black
Operating Speed : 0.17sec / 60 degrees (4.8V no load)
Operating Speed : 0.13sec / 60 degrees (6.0V no load)
Stall Torque : 13 kg-cm (180.5 oz-in) at 4.8V
Stall Torque : 15 kg-cm (208.3 oz-in) at 6V
Operation Voltage : 4.8 - 7.2Volts
Gear Type: All Metal Gears
Connector Wire: Heavy Duty, 300mm
MG996R:
Stall torque:12kg/cm(6V)
Power Supply: Through External Adapter
Operation Voltage : 4.8 - 7.2 V
Temperature range: 0'C to 55‘C
Operating Speed: 0.17sec / 60 degrees (4.8V no load)
Operating Speed: 0.13sec / 60 degrees (6.0V no load)
Connector Wire:Length 300mm
Package Dimension: 54 x 38 x 20 mm
Servo Motor All Copper Gear
Servo Motor All Copper Gear
Out of stock
Product Code
SKU:ACG995-90
