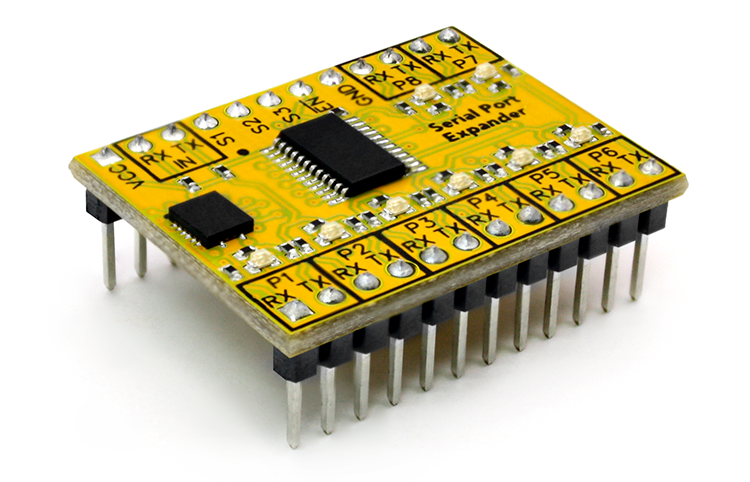

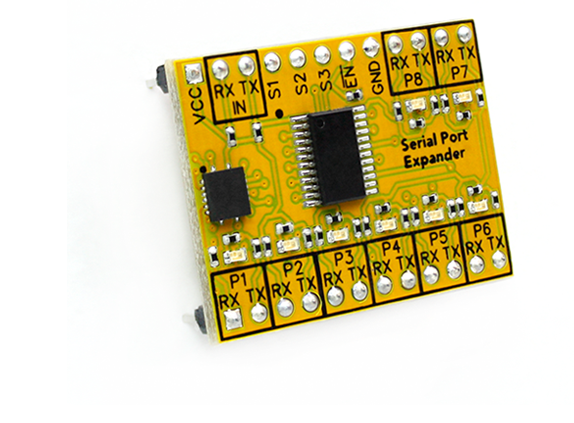

Serial Port Expander 8:1 Arduino Compatible

• Expand a single UART (RX/TX) serial port into 8 additional serial ports

• On-board LEDs indicate which channel has been opened

• Supports baud rates greater then 1M Baud

• Easily connect two Serial Port Expanders together to get 16    additional serial ports

• Operating voltage: 3.3V to 5V

• Power consumption: 0.15mA at 3.3 volts

Documents:

• 8:1 Serial Port Expander Datasheet

• 1 Serial Port Expander code

• Raspberry Pi Sample Code Serial Port Expander CAD Footprint File (*.dxf)

• RoHS Certificate

• CE Certificate
