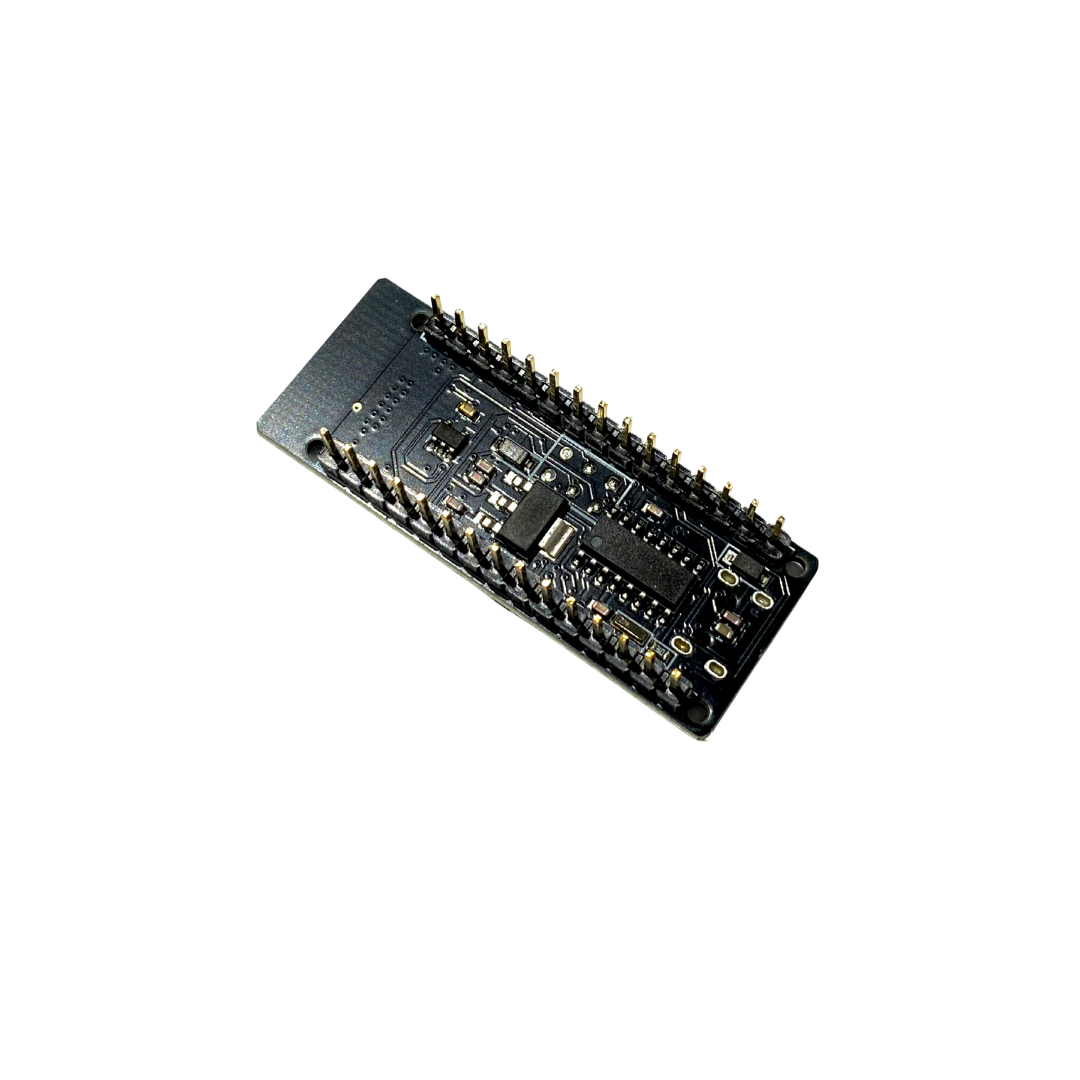

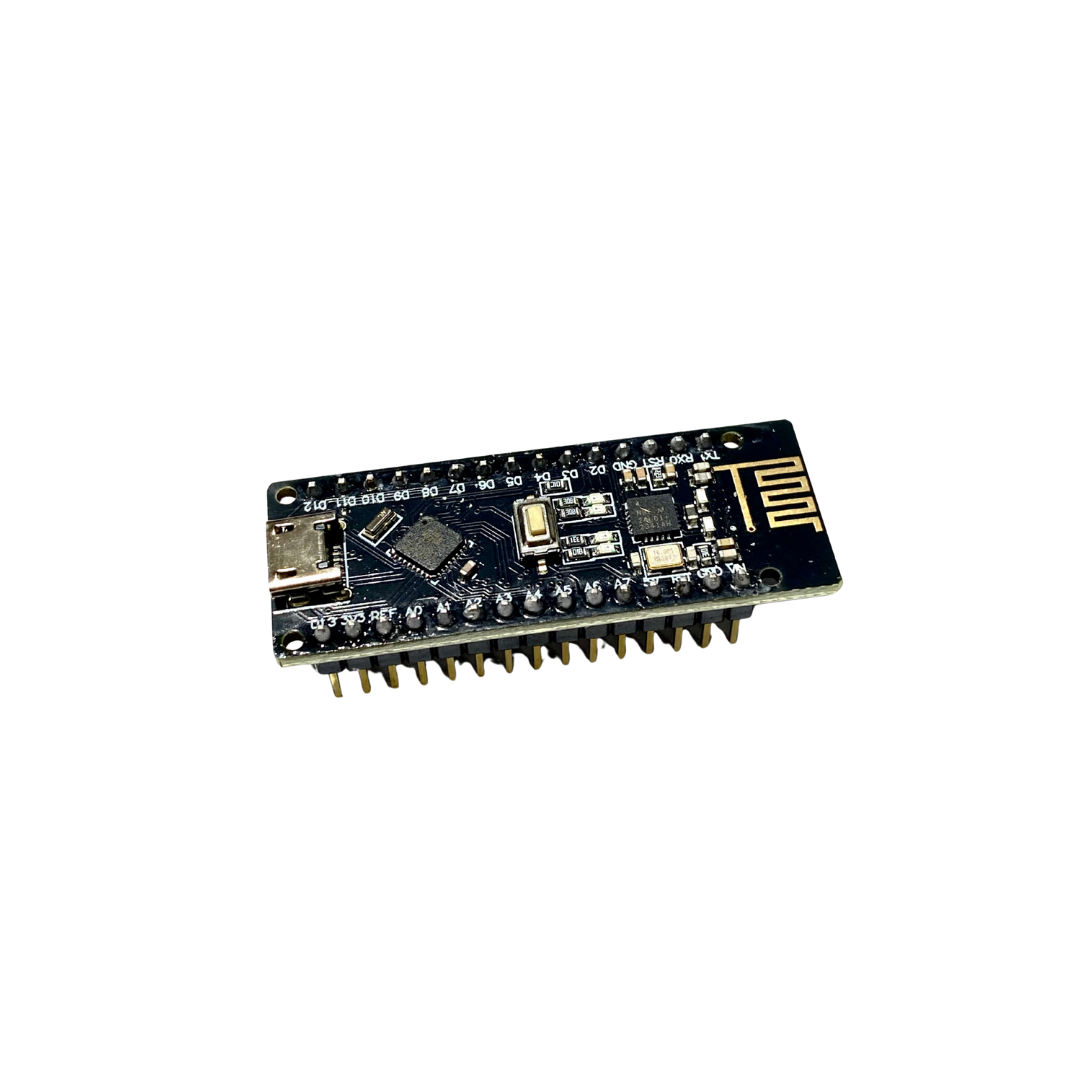

The RF-NANO ATmega328 with NRF24L01 v3 is a powerful and compact solution for your wireless communication needs. Combining the capabilities of the ATmega328 microcontroller with the NRF24L01 transceiver, this module allows you to easily implement wireless communication in your projects. Whether you're building remote-controlled devices, wireless sensors, or IoT systems, this module offers reliable and efficient data transmission over long distances with minimal power consumption.
One of the key advantages of the RF-NANO is its seamless integration with the Arduino IDE, making it incredibly easy to program and deploy. The ATmega328 is a well-known and widely used microcontroller, providing plenty of resources and community support. The onboard NRF24L01 transceiver ensures stable and robust communication between devices, with features like multi-channel operation, dynamic payload length, and automatic acknowledgment. This means you can expect consistent performance even in environments with potential interference.
For hobbyists and professionals alike, the RF-NANO ATmega328 with NRF24L01 v3 is a versatile and cost-effective choice. Its small form factor makes it ideal for projects with space constraints, and the combination of a proven microcontroller with a reliable transceiver module makes it a trusted component in wireless communication projects. If you're looking to add wireless capabilities to your next project, the RF-NANO offers the perfect balance of performance, ease of use, and affordability.
Specifications:
Microcontroller Unit (MCU):
- Processor: ATmega328 (Nano 3.0)
- Working Voltage: 5V
- Input Voltage (recommended): 7-12V
- Input Voltage (range): 6-20V
- Digital I/O Pins: 14 (6 can be used as PWM outputs)
- Analog Input Pins: 6 (A0 to A5)
- Flash Memory: 32 KB (2 KB for bootloader)
- SRAM: 2 KB
- EEPROM: 1 KB
- Clock Speed: 16 MHz
- USB Interface: Micro USB with CH340 USB to serial port chip
Wireless Transceiver (NRF24L01+):
- Communication: SPI
- Frequency: 2.4 GHz
- Data Rate: Configurable (1 Mbps, 2 Mbps, 250 Kbps)
- Power Levels: Configurable (-18 dBm, -12 dBm, -6 dBm, 0 dBm)
- Integrated with ATmega328 for seamless wireless communication.
Technical Details
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
