RF Controller Kit with Remote Control 315MHz

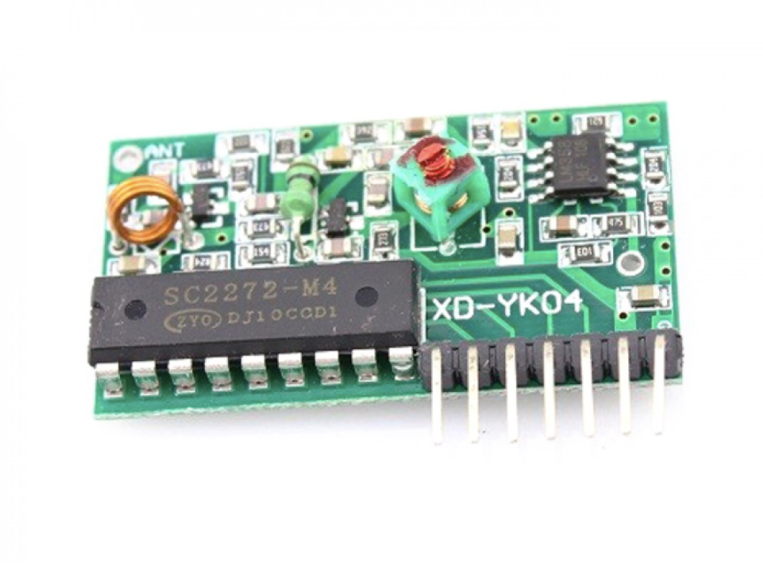

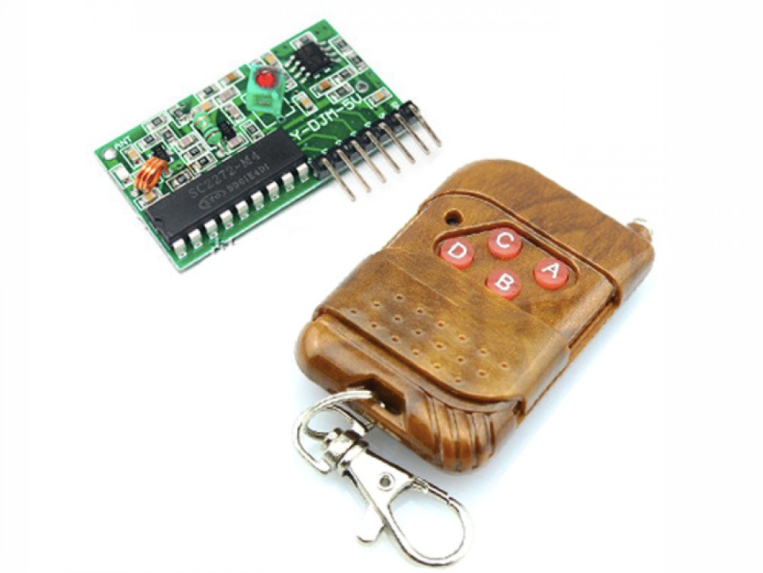

RF Controller Kit with Remote Control 315MHz - Clickety-click, control your LEDs from a distance! A four buttoned RF controller that can work without an additional microcontroller. Armed with SC2273-L4 SC2272-M4 IC for encoding and decoding signals. The receiver is powered using a 5VDC supply. By pressing button A, it activates the first pin to output HIGH. When B is press, it enables the second pin. And so forth will all other buttons.
Frequently Asked Questions About RF Controller Kit with Remote Control 315MHz
Q1: What is an RF Controller Kit with Remote Control 315MHz?
An RF (radio frequency) controller kit is a type of wireless remote control that operates at a frequency of 315MHz. It is typically used to control the on/off functions of electronic devices or appliances.
Q2: How does an RF Controller Kit with Remote Control 315MHz work?
The remote control sends a signal to the receiver unit that is connected to the electronic device or appliance. The receiver unit then processes the signal and activates or deactivates the device or appliance.
Q3: What is the range of an RF Controller Kit with Remote Control 315MHz?
The range of the remote control varies depending on the specific kit, but it typically ranges from 50-100 meters in an open area.
Q4: What types of devices can be controlled with an RF Controller Kit with Remote Control 315MHz?
The kit can be used to control a wide range of electronic devices or appliances, such as lights, fans, motors, and other types of electrical equipment.
Q5: Can multiple devices be controlled with a single RF Controller Kit with Remote Control 315MHz?
Yes, the remote control can be programmed to operate multiple receiver units, allowing you to control several devices with a single remote.
Q6: How easy is it to install an RF Controller Kit with Remote Control 315MHz?
The installation process varies depending on the specific kit, but most kits are designed to be easy to install and require only basic wiring knowledge.
Q7: Are there any security concerns with using an RF Controller Kit with Remote Control 315MHz?
Since the signal is transmitted wirelessly, there is a potential for the signal to be intercepted by unauthorized users. However, most RF controller kits include security features such as encryption to prevent unauthorized access.
SPECIFICATIONS:
- Amplitude modulation (AM)
- Standard Current: 4.5mA
- Key fob Battery voltage: DC12V
- Receiver Voltage:DC5V
- Operating temperature: -10 ℃ ~ +70 ° C
RF Controller Kit with Remote Control 315MHz
RF Controller Kit with Remote Control 315MHz
Low stock: 8 left
Product Code
SKU:AN814
