Relay SPDT 10A 24V

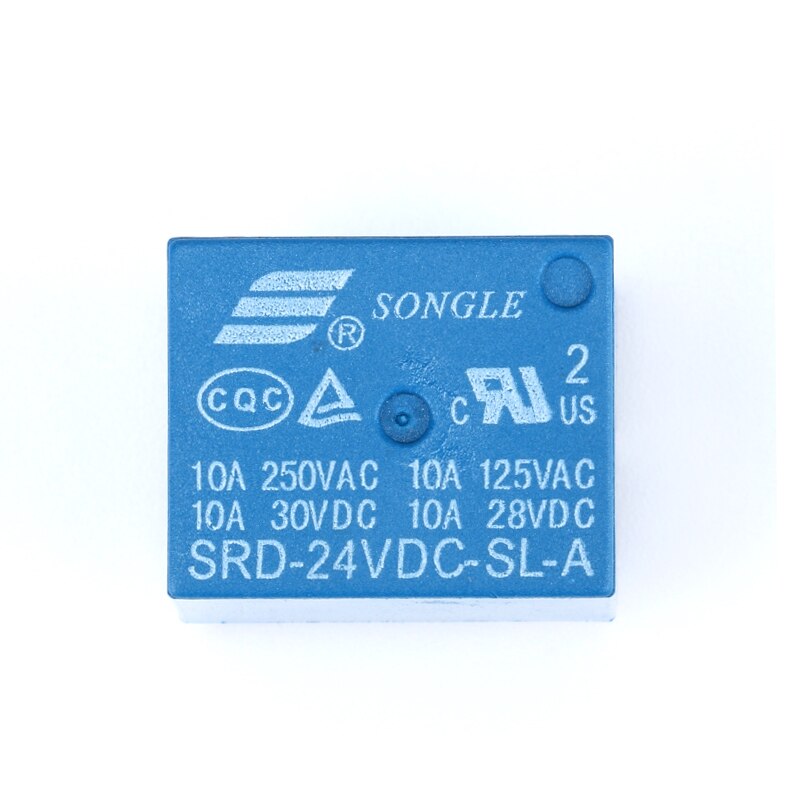

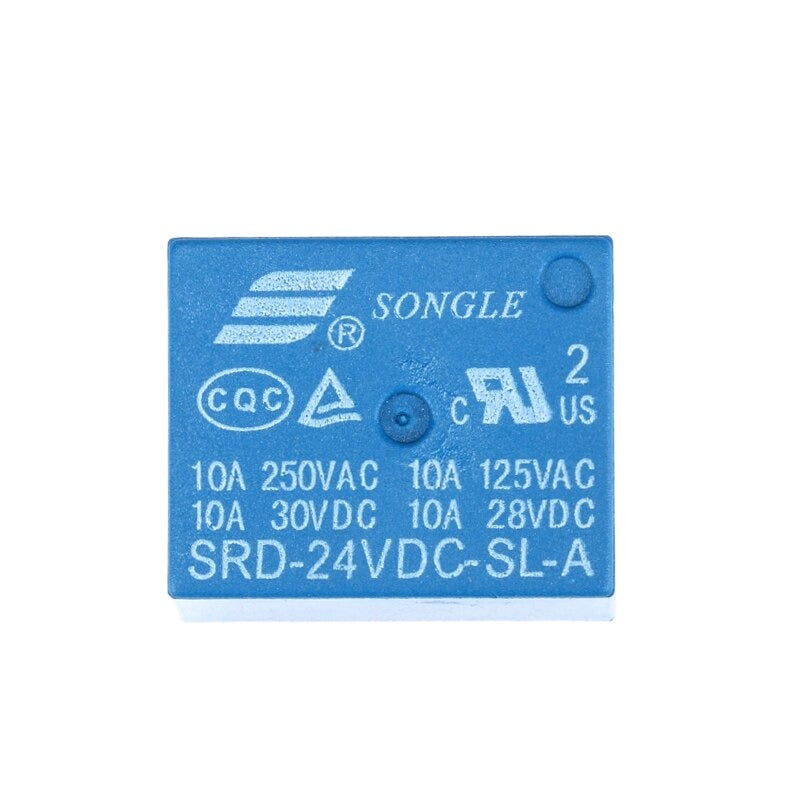

Relay SPDT 10A 24V -  The Relay SPDT 10A 24V is a high-quality single pole double throw (SPDT) sealed relay. It has a rated voltage of 24V, capable of switching components up to 10A (@250VAC, 25VDC). It also acts as protection for your Arduino so that high power doesn't enter the board in any cases. You can use relays to switch AC appliances, high power motors, etc.

Specifications:

  • 24V DC SPDT Relay
  • Rated up to 10A
  • Fully Sealed

People Also Ask:


Q1: What distinguishes SPST, SPDT, and DPDT from one another?


Types of switch circuits: SPDT, SPST, and DPDT

The simplest ways to open and close an electrical circuit are via switches. The circuits range from straightforward make/break circuits to those with multiple makes and many breaks. Despite the logic's simplicity, it's crucial to select the right circuit for the job. Let's examine each type of circuit to better comprehend switch mechanics and the most appropriate use for each circuit.
SPDT Circuits – Single Pole, Double Throw

The SPDT Mechanical switch is one of the most used switch types. SPDT, or Single Pole, Double Throw, is the acronym. Simply said, the voltage and current provided to the switch's common terminal can be directed in one of two directions: toward the typically open terminal or the normally closed terminal. The switch is normally activated by a mechanical roller lever that controls the direction of the current flow.

Q2: How to Identify a Faulty Relay?


Relays, despite being generally reliable, are susceptible to mechanical failure. Fortunately, a millimeter can be used to quickly spot a bad relay. To do this, you must first find the locations of the circuits within and outside the relay, which are frequently indicated by pins. You can use the millimeter to measure the voltage at each place after finding this spot. Use the troubleshooting methods listed below:

  • At the location where the relay plugs in, check for voltage. If there isn't, look for problems with the fuse or switch.
  • If there is voltage at the connecting point, utilize the millimeter's continuity feature to check for a solid ground connection on the relay's other side.
  • Check the voltage at the location where the relay connects to the battery or another power source if Steps 1 and 2 are unsuccessful in identifying the issue's root cause. If there is no voltage here, a fuse or circuit breaker may be malfunction.

Lastly, use the millimeter's continuity feature to check that the relay is properly connected to the component. It might be time to replace the relay if the connection is present and the previous steps did not reveal another issue.

Relay SPDT 10A 24V

Relay SPDT 10A 24V

294 in stock

Product Code

SKU:2098

Regular price ₱ 45.00
Regular price Sale price ₱ 45.00
Sale Sold out
