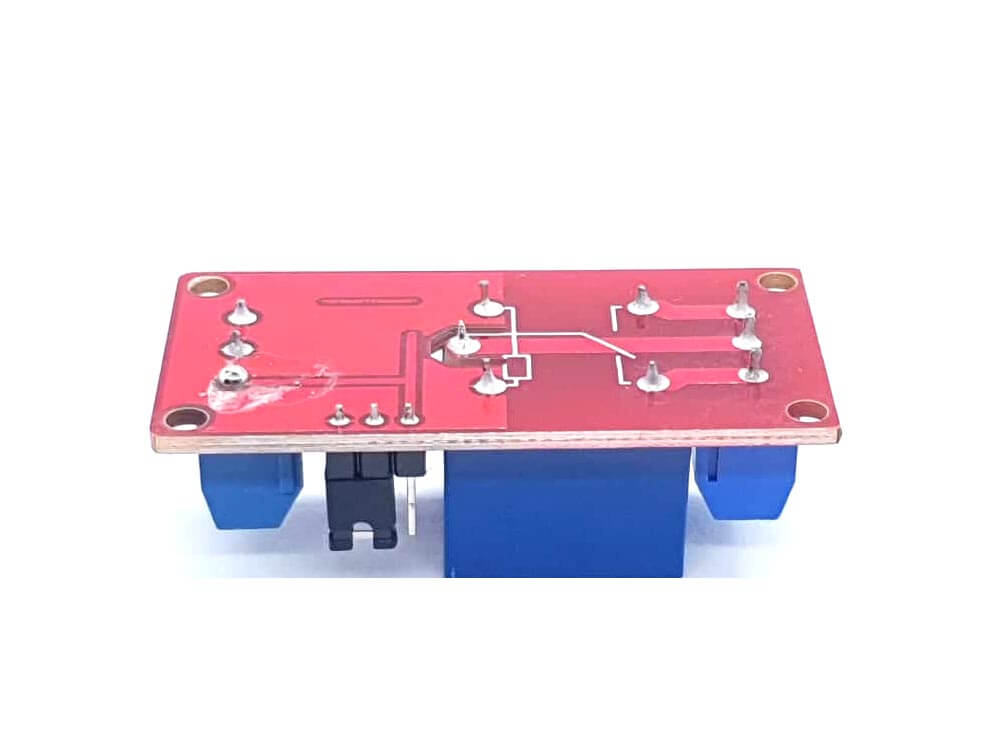

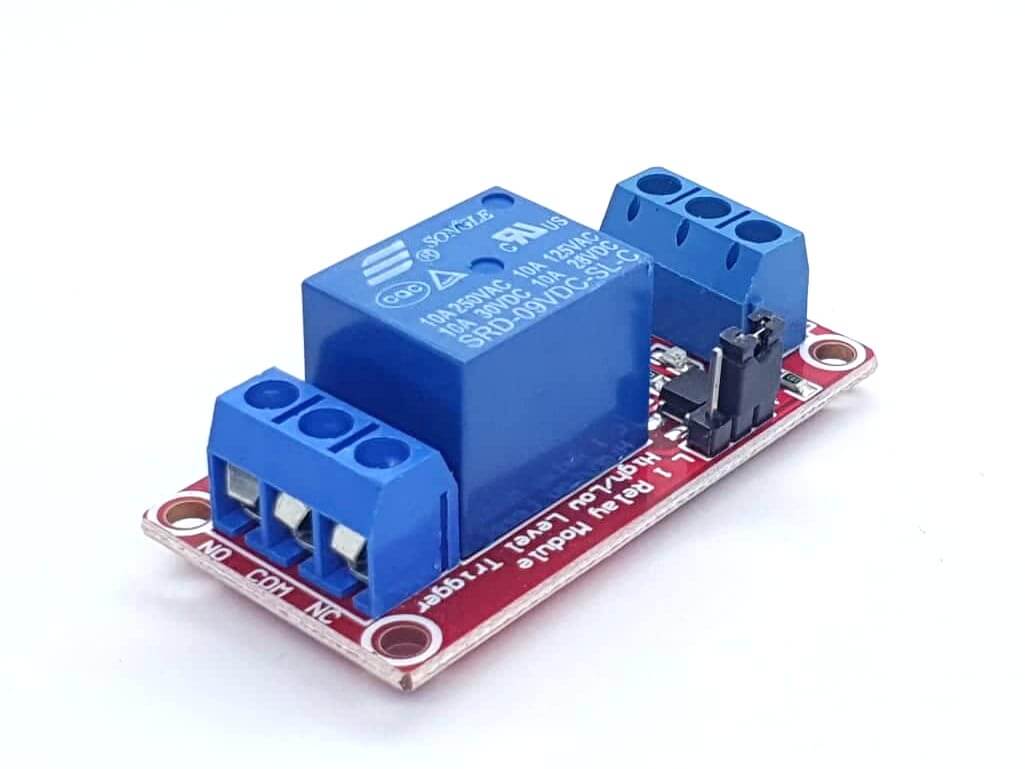

Relay 1 Channel 9V Level Trigger Optocoupler Module


This relay can be triggered with a device that has a 9V logic control. It has a normally open interface and can handle loads up to 250V @ 10A or DC 30V @ 10A.

QUICK SPECS:

  • Maximum load: AC 250V/10A or DC 30V/10A
  • Trigger current can be 5mA
  • Working voltage is at 24V
  • Dimension L x W x H: 50 x 26 x 18.5mm
  • It has four mounting bolts with a diameter of 3.1mm

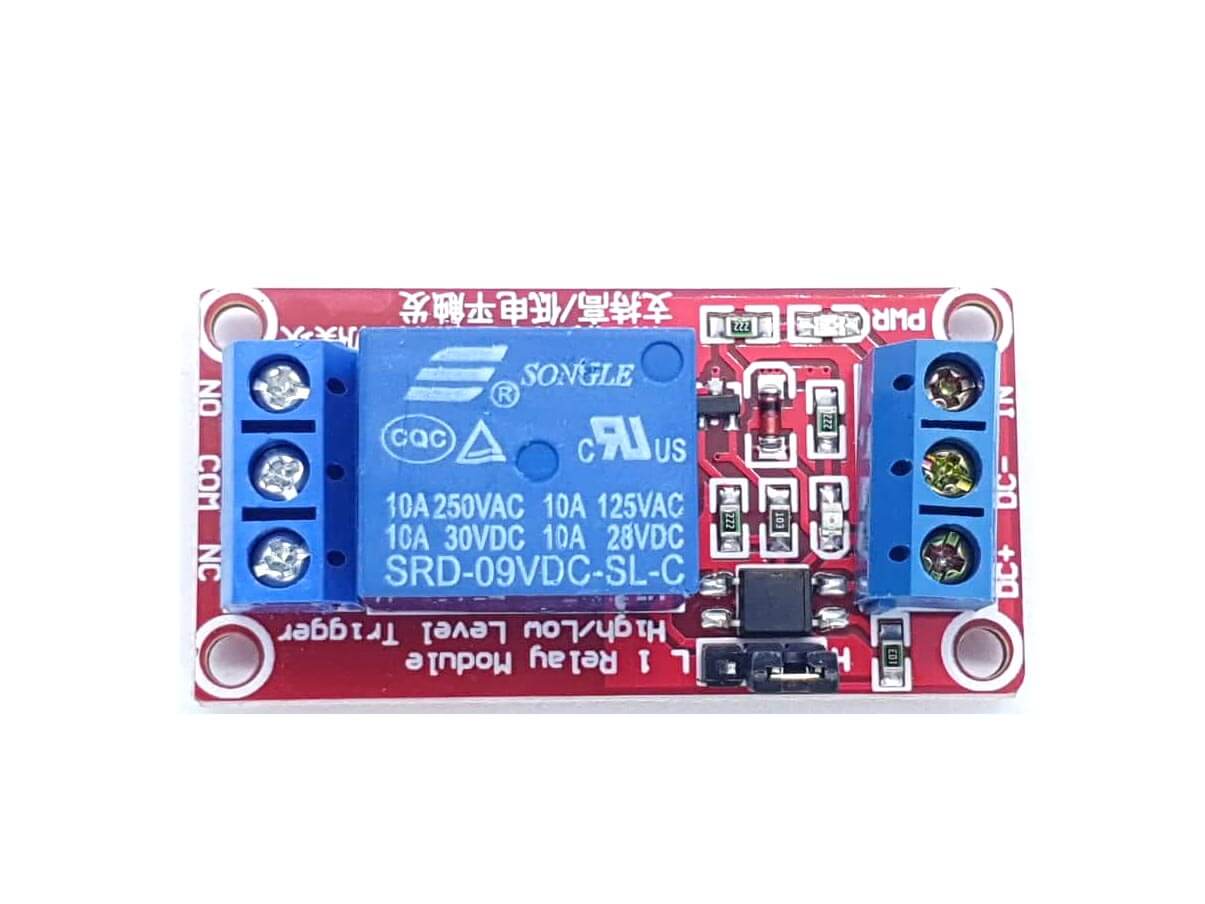

Control:

  • DC+: VCC
  • DC-: GND
  • IN: relay input 9V+/-

Relay Outputs:

NO: means Normally Open

COM: means Common Interface

NC: means Normally Closed

HIGH and LOW level trigger options:

Relay 1 Channel 9V Level Trigger Optocoupler Module

Relay 1 Channel 9V Level Trigger Optocoupler Module

Out of stock

Product Code

SKU:AM012-9V

Regular price ₱ 79.00
Regular price Sale price ₱ 79.00
Sale Sold out
