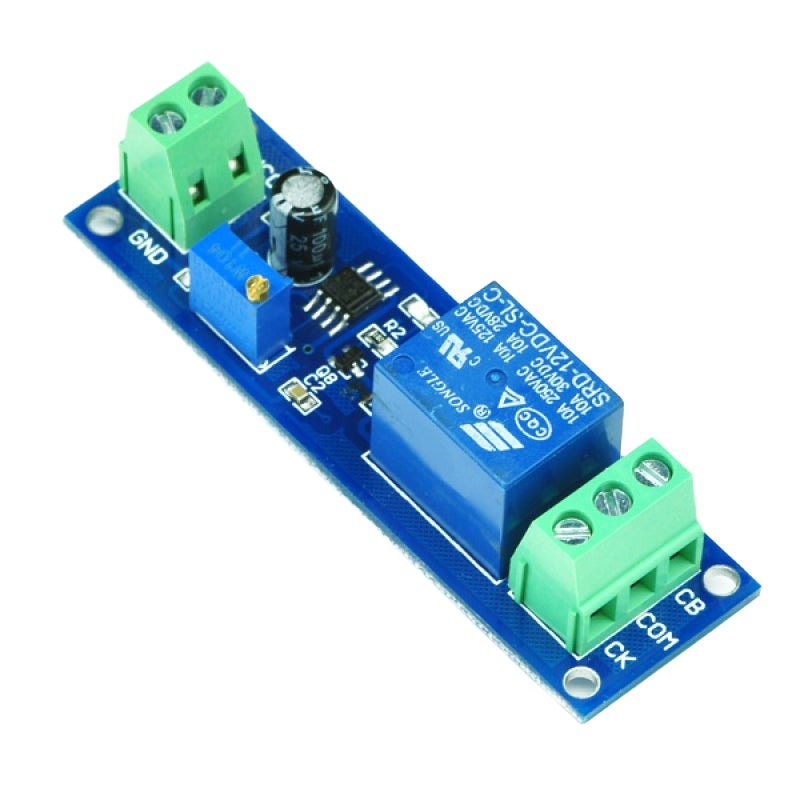

Relay 1 Channel 12V Timer Module

Essential Features:

  • Versatile Control: This module serves as a robust switch mechanism, enabling you to effortlessly switch any device on or off. Whether you're looking to automate your home or create sophisticated control systems for your projects, this relay board is up to the task.
  • Precision Timing: At the heart of the module lies a NE555 timer chip, renowned for its reliability and precision. This feature allows for an adjustable delay time ranging from 0 to 10 seconds. By simply rotating the potentiometer, you can fine-tune the delay to meet your specific requirements.
  • Efficient Design: Designed for DC12V control, this 1-channel timer relay module is engineered to provide seamless operation. It's crafted to delay activation by several seconds upon being powered, offering you control with precision timing.
  • Protection Suggestion: To ensure the longevity and reliability of the circuit, it is recommended to connect the power supply in series with a diode. This precaution helps safeguard the module against potential damage from reverse polarity or voltage spikes.

Key Specifications:

  • Interface: 1-Channel Relay, enabling direct control of high-power devices.
  • Adjustable Delay Time: Offers a flexible delay setting from 0 to 10 seconds, customizable via an accessible potentiometer.
  • High-Current Relay Capacity: Equipped to handle significant loads with ratings of DC30V 10A and AC250V 10A. This capacity makes it suitable for a wide variety of applications, from controlling lighting systems to activating motors or other high-demand devices.

This Timer Relay Module is an indispensable component for anyone involved in electronics, DIY projects, or home automation. Its combination of a NE555 timer chip for adjustable delay, high-current relay capability, and the suggestion for circuit protection with a diode, provides a reliable and versatile solution for controlling devices with precision and safety.
