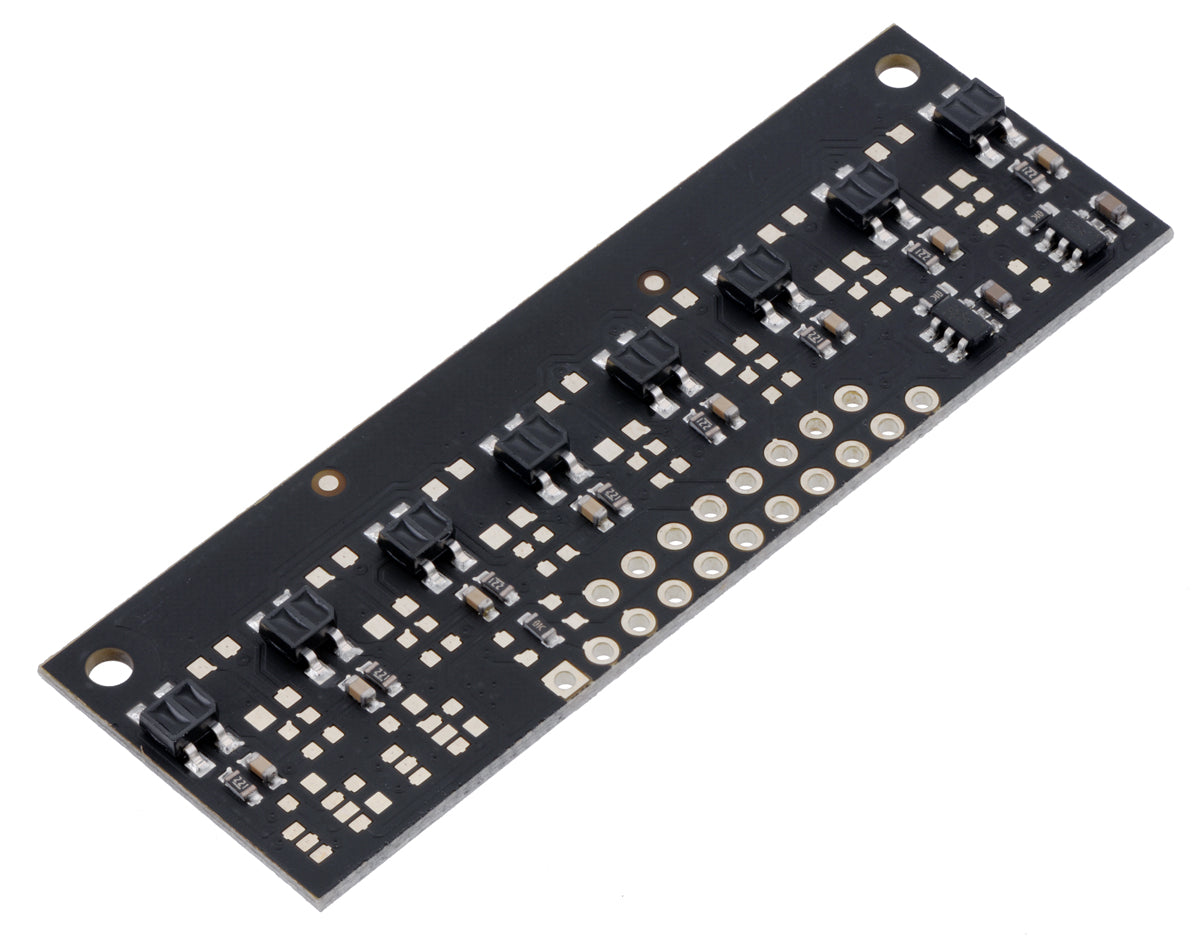

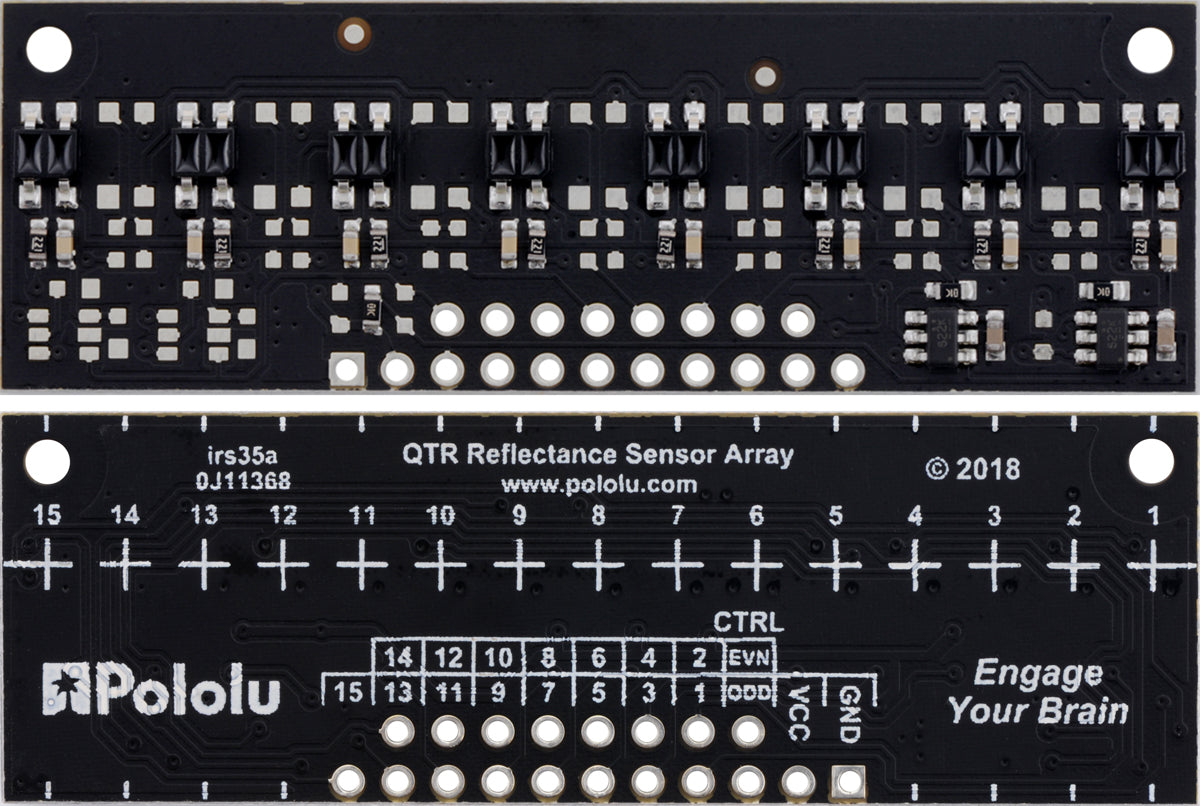

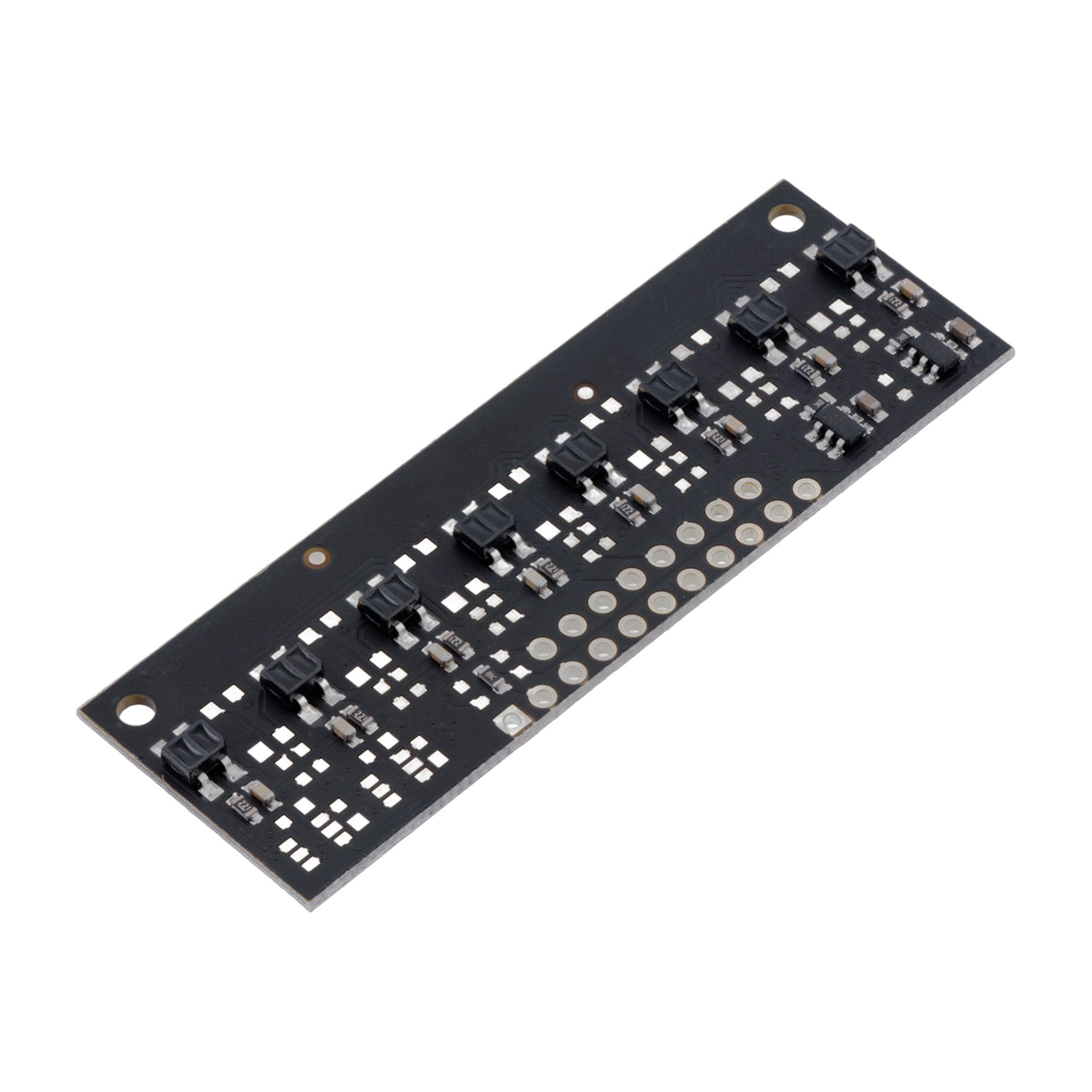

Reflectance Sensor Array QTR-MD-08RC 8-Channel 8mm Pitch RC Output


This array of IR LED/phototransistor pairs is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to 5.5 V and offers dimmable brightness control independent of the supply voltage. In general, the closer the object, the higher the contrast between light and dark readings, but high-reflectance objects are generally detectable out to around 40 mm. This version features the traditional-style QTR sensors without lenses.

SPECIFICATIONS:

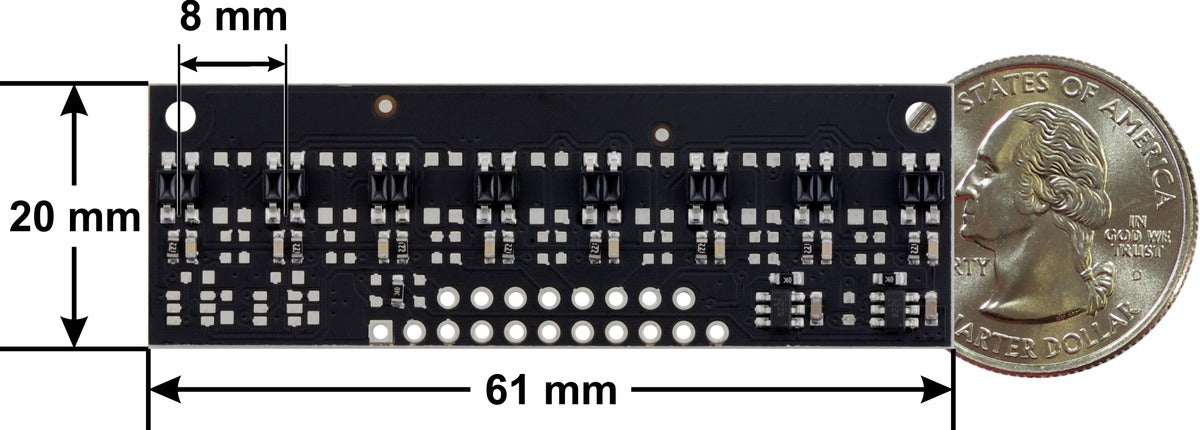

  • Dimensions: 61.0 × 20.0 × 2.5 mm
  • Operating voltage: 2.9 V to 5.5 V
  • Sensor type: QTR
  • Sensor count: 8
  • Sensor pitch: 8 mm
  • Full-brightness LED current: 30 mA (independent of supply voltage)
  • Max board current: 125 mA
  • Output format: digital I/O-compatible signals that can be read in parallel as timed high pulses
  • Optimal sensing distance: 5 mm
  • Maximum recommended sensing distance: 40 mm
  • Weight: 3.1 g

Reflectance Sensor Array QTR-MD-08RC 8-Channel 8mm Pitch RC Output

Reflectance Sensor Array QTR-MD-08RC 8-Channel 8mm Pitch RC Output

Low stock: 10 left

Product Code

SKU:POL4148

Regular price ₱ 425.00
Regular price Sale price ₱ 425.00
