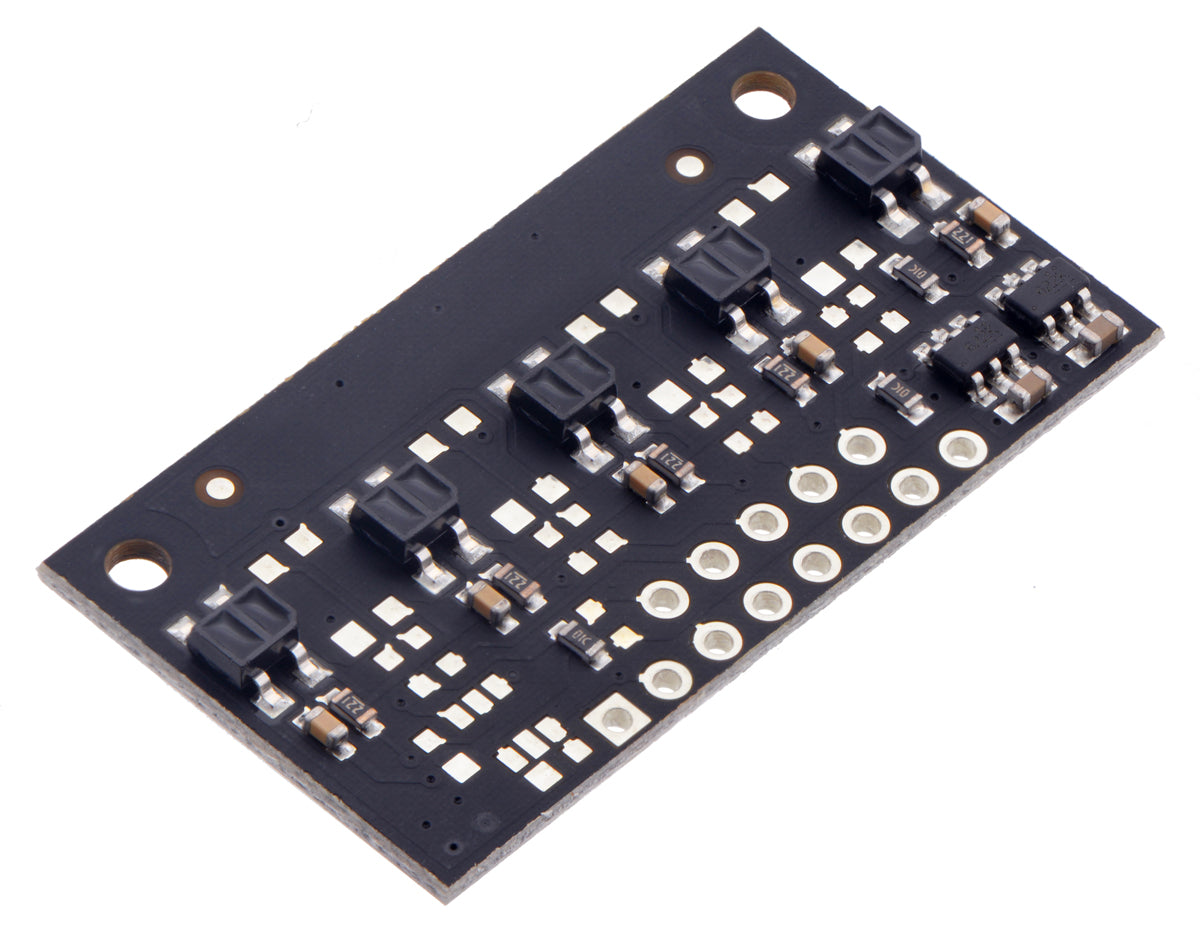

Reflectance Sensor Array QTR-MD-05RC 5-Channel 8mm Pitch RC Output

This array of IR LED/phototransistor pairs is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to 5.5 V and offers dimmable brightness control independent of the supply voltage. In general, the closer the object, the higher the contrast between light and dark readings, but high-reflectance objects are generally detectable out to around 40 mm. This version features the traditional-style QTR sensors without lenses.

Specifications

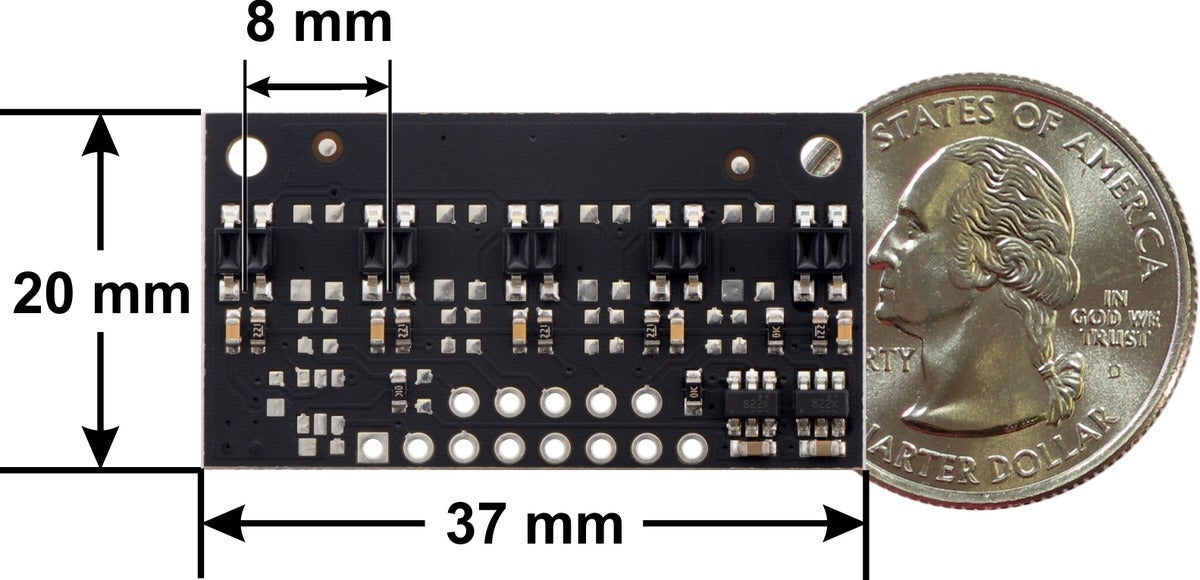

• Dimensions: 37.0 × 20.0 × 2.5 mm (see the dimension diagram (1MB pdf) for more details)

• Operating voltage: 2.9 V to 5.5 V

• Sensor type: QTR

• Sensor count: 5

• Sensor pitch: 8 mm

• Full-brightness LED current: 30 mA (independent of supply voltage)

• Max board current: 93 mA

• Output format: digital I/O-compatible signals that can be read in parallel as timed high pulses

• Optimal sensing distance: 5 mm

• Maximum recommended sensing distance: 40 mm

• Weight: 1.9 g
