Detect Nearby Objects Without Contact
The Distance Sensor 5cm GP2Y0D805Z0F Carrier Sharp is an infrared distance sensor designed for distance measurement, obstacle detection, level checks, and basic automation. It is a practical fit for makers, students, and engineers who want reliable sensor data in embedded builds.
Key details include Maximum range: 5 cm; Minimum operating voltage: 2.7 V; Maximum operating voltage: 6.2 V.
Important: Infrared and optical readings change with target color, surface finish, distance, and strong ambient light. Test with your real target before final mounting.
Why you’ll love it
- Key feature: Low when detecting an object, high otherwise.
- Controller output: digital
- Sensing range: 5 cm
- Power range: 2.7 V
- Current draw: 5 mA

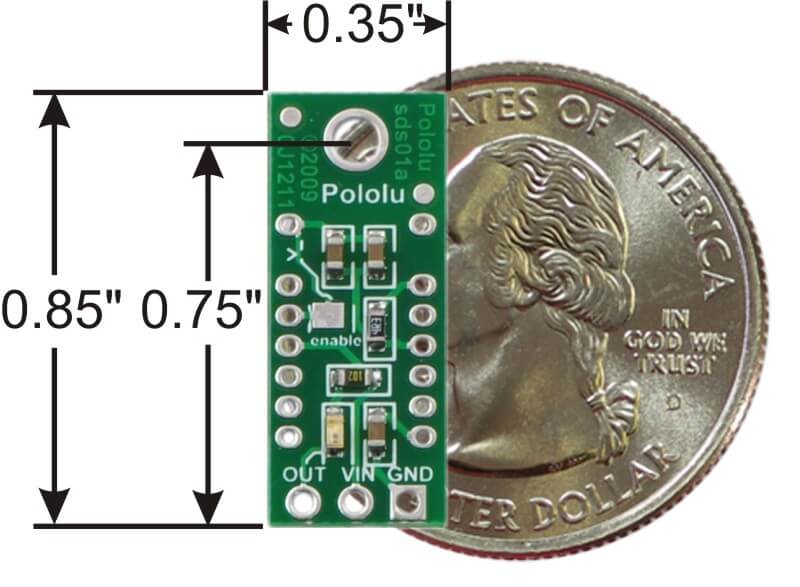

- Compact size: 0.85" x 0.35" x 0.41"
Compare with similar products
| Product | Sensor style | Standout |
|---|---|---|
| Distance Sensor 5cm GP2Y0D805Z0F Carrier Sharp | infrared distance sensor | Current item |
| Distance Sensor 10cm GP2Y0D810Z0F Carrier Sharp | infrared distance sensor | motion sensing |
| Distance Sensor 15cm GP2Y0D810Z0F Carrier Sharp | infrared distance sensor with digital output | digital output, motion sensing |
| Distance Sensor 10-150cm GP2Y0A60SZLF Sharp 3V | infrared distance sensor with analog output | analog output, motion sensing |
What you can build
This sensor is a good fit for robot obstacle avoidance, tank level checks, parking aids, object counters, and range alarms.
Starter bundles
Pair it with an Arduino-compatible board, ESP32, or Raspberry Pi, plus a breadboard and jumper wires for quick setup and testing.
Recommended add-ons
Useful add-ons include a microcontroller board, jumper wires, and pull-up or pull-down support when needed, depending on how you plan to power, mount, and log the sensor.
Technical specifications
| Product | Distance Sensor 5cm GP2Y0D805Z0F Carrier Sharp |
|---|---|
| Output type | digital |
| Maximum range | 5 cm |
| Minimum range | 0.5 cm |
| Minimum operating voltage | 2.7 V |
| Maximum operating voltage | 6.2 V |
| Supply current | 5 mA |
| Size | 0.85" x 0.35" x 0.41" |
| Weight | 1.5 g |
Wiring & usage notes
Connect power and ground, then wire the output pin to a digital GPIO input. Check whether the module uses active-high or active-low logic in your code. Infrared and optical readings change with target color, surface finish, distance, and strong ambient light. Test with your real target before final mounting.
What’s in the box
1 × Distance Sensor 5cm GP2Y0D805Z0F Carrier Sharp
Frequently Asked Questions
What does the Distance Sensor 5cm GP2Y0D805Z0F Carrier Sharp measure?
It is designed to measure distance or object presence.
Can I use it with Arduino, ESP32, or Raspberry Pi?
Yes. It is well suited for common maker and embedded platforms, as long as you power it at the correct voltage and match the signal level to your controller.
How do I connect this Digital GPIO sensor?
This sensor provides a digital switching-style signal that is easy to read from a GPIO pin.
What affects accuracy?
Power quality, wiring, mounting, target material, and the real environment can all affect the reading. It is best to test and calibrate in the final setup.
Is it good for prototyping?
Yes. It is a practical choice for learning, proof-of-concept builds, and small automation projects.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
