Real Time Clock Module DS1307 Raspberry Pi 3

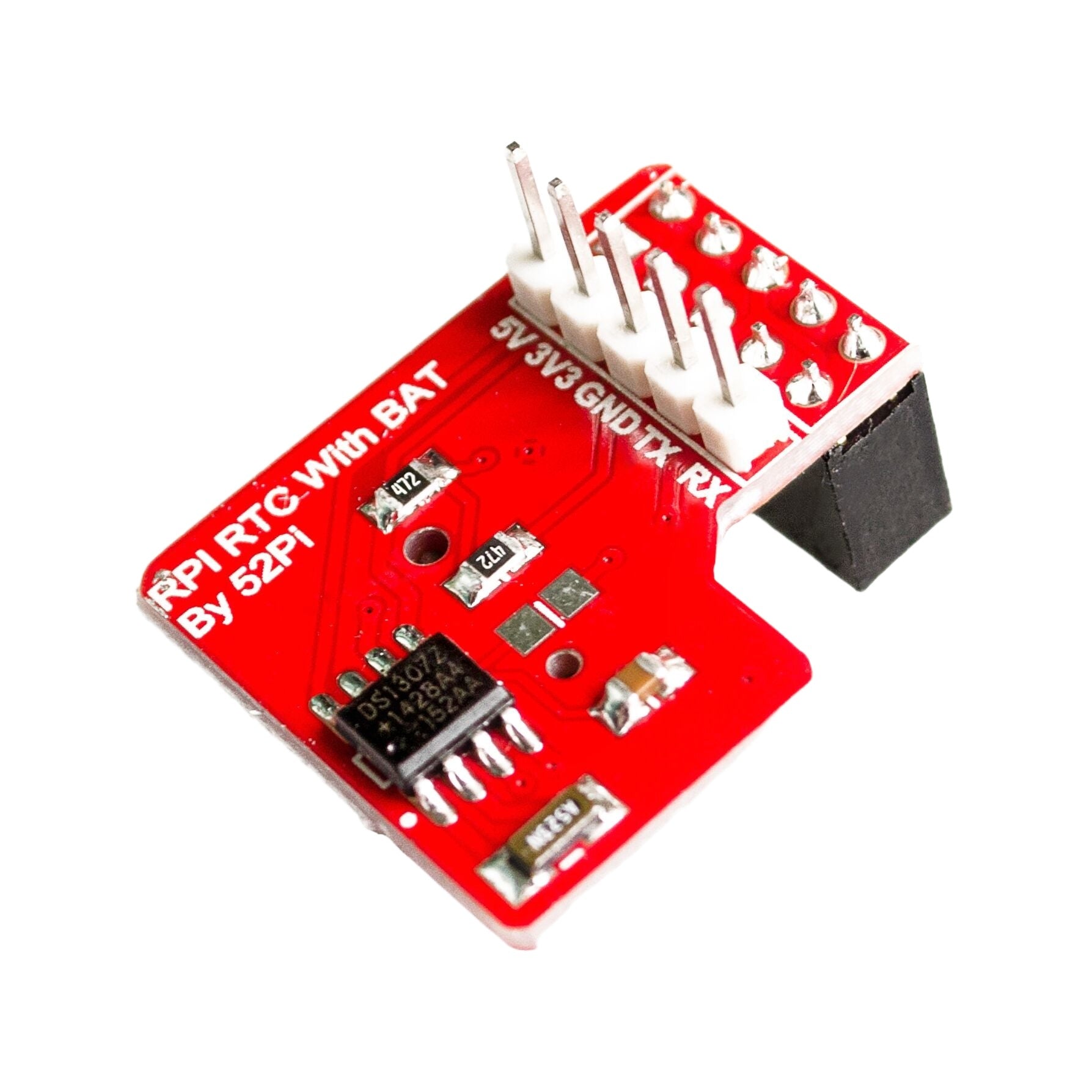

This RTC module is specifically designed for the Raspberry Pi. It communicates with Raspberry Pi through I2C bus and includes a Maxim DS1307 and CR1220 button cell on the board to keep a real time clock for a long time after the Pi has powered down. Just set a serial port, and you have a convenient way of online debugging using TTL. Supports Raspberry Pi B/A+/B+/2 model B/3 model B.

SPECIFICATION

• RTC module: DS1307

• Battery model: CR1220 button cell

• Operting Voltage: 5V

• I2C address: 0x68

• Clock precision: ±2ppm (0~40°C)

• Unit information: Second, Minute, Date, Week, Month and Year

• Operating temperature: -10°C至+85°C

• Compatible with Raspberry Pi B/A+/B+/2 model B/3 model B

• Interface: 2*5p 2.54mm

DOCUMENTS

• Wiki Doc


SHIPPING LIST

• RTC module with Battery for Raspberry Pi x1

• DS1307 Button cell x1
