Pulse Sensor Kit

Pulse Sensor Kit - Having a wearable pulse reader is good, and it could give an advantage in having your heart rate data read wirelessly. This sensor is powered with 3.3V to 5V power supply and only drawing a small 4mA current at an active state. It only has an analog pin for getting sensor reading to your microcontroller. This sensor is so easy to be used that even beginners won't have a hard time creating a project with this sensor.

This sensor has noise cancellation circuitry as well as data amplification that makes this fast and easy to get a constant pulse reading. It includes a strap that for your arms or fingers and a clip that can be used on your earlobes to get a pulse reading. This sensor only needs 3 pins to be integrated into an MCU, 2 for the power supply, and one for the analog data pin.  You could use this in projects that need pulse data reading like a wellness monitoring system.

Frequently Asked Questions About The Pulse Sensor Kit

Q1: What is the Pulse Sensor Kit and what does it do?

The Pulse Sensor Kit is a wearable device that measures the pulse or heart rate of a person. It works by detecting the change in light reflected by the skin when blood rushes through the finger. The kit includes a sensor and an amplifier circuit, along with other components such as an LED and a piezobuzzer, that help visualize and interpret the pulse signal.

Q2: How is the Pulse Sensor Kit used?

The Pulse Sensor Kit is typically used by attaching the sensor to the fingertip using a rubber band or tape. The signal from the sensor is then transmitted to the amplifier circuit, which amplifies the signal and provides it to a microcontroller, such as an Arduino board, for processing. The processed signal can be used to display the heart rate on an LCD screen, or to control other devices or applications, such as an LED or a buzzer.

Q3: What are the technical specifications of the Pulse Sensor Kit?

The Pulse Sensor Kit has a range of technical specifications, including:

• Operating voltage: 3.3V to 5V
• Output signal range: 0V to 3.3V
• Amplification factor: ~30
• Maximum pulse rate: 220 beats per minute
• Operating temperature range: 0°C to 70°C

Q4: How accurate is the Pulse Sensor Kit?

The accuracy of the Pulse Sensor Kit depends on a number of factors, such as the quality of the sensor, the amplifier circuit, and the processing of the signal. In general, the kit is capable of providing a reasonably accurate measurement of heart rate, but its accuracy may be affected by factors such as movement or poor contact with the skin.

Q5: Is the Pulse Sensor Kit suitable for medical applications?

The Pulse Sensor Kit is not a medical device and is not approved for use in medical applications. It is designed as a DIY project and educational tool for learning about pulse sensing and heart rate measurement. If you need to measure heart rate for a medical purpose, you should consult a healthcare professional and use a medical-grade device.

Q6: Can the Pulse Sensor Kit be used with other microcontrollers or platforms?

Yes, the Pulse Sensor Kit can be used with a variety of microcontrollers and platforms, such as the Arduino, Raspberry Pi, or Micro:Bit. The kit comes with sample code and tutorials for using it with the Arduino platform, but it can be adapted for use with other platforms using the appropriate wiring and software.

• Schematic

• Getting Started Project

• Getting Advanced Code

• Pulse Sensor Processing Visualizer

SHIPPING LIST:

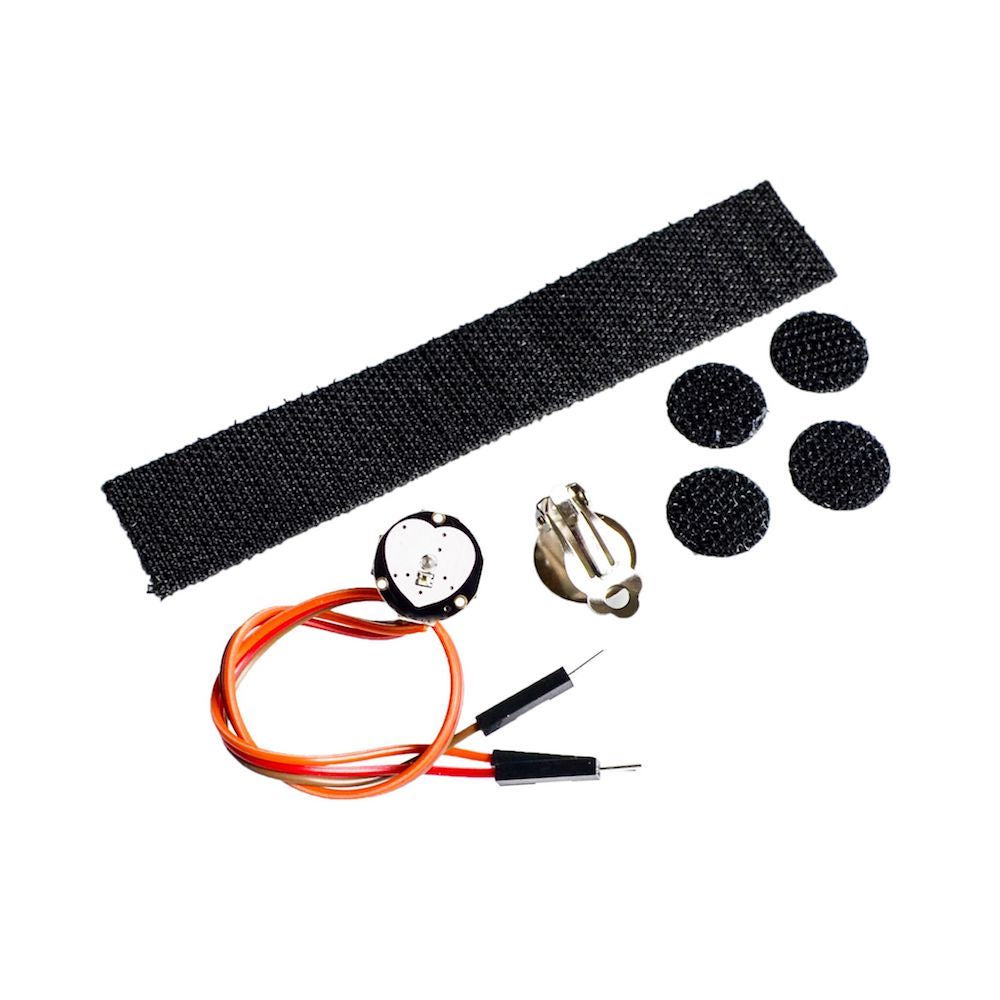

• Pulse Sensor Board

• Color-Coded Cable with Standard Male Headers

• Ear Clip for Earlobe Heart Rate Measurement

• Velcro Finger Strap
